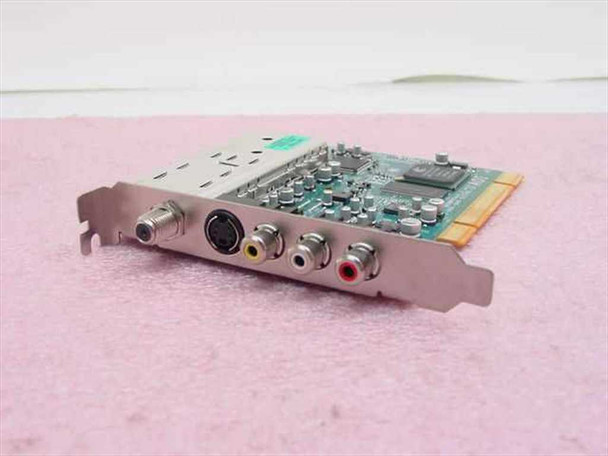

Sony PCVA-IMB5A Giga Pocket TV Tuner Capture Card PCI VAIO S-Video Composite
The Sony PCVA-IMB5A is a PCI TV tuner and video capture card produced by Sony for its VAIO desktop PC line. Designed to work exclusively with Sony's Giga Pocket software platform, it allows a compatible VAIO system to receive and record analog broadcast television signals and capture video from external sources directly to the hard drive. The card carries Sony PCB designation ENX-21 (PCB part number 1-862-908-51).
Specifications & What's Included
- Model / MPN: PCVA-IMB5A
- PCB designation: ENX-21 (Sony board part number 1-862-908-51)
- Interface: PCI (standard half-height PCI card)
- TV tuner module: ALPS shielded analog tuner module
- Main processor/capture chip: Broadcom (visible on PCB)
- Video inputs (bracket): F-type coaxial antenna/cable in, S-Video (4-pin mini-DIN), composite video RCA
- Audio inputs (bracket): stereo RCA audio in
- Required software: Sony Giga Pocket (OEM — not included)
- Compatible systems: Sony VAIO desktop PCs with Giga Pocket support
- Country of manufacture: Japan (per PCB markings)
- Included: card only — no software, cables, or accessories
Applications
The Sony PCVA-IMB5A was an OEM component fitted to Sony VAIO desktop systems — particularly the VAIO VGC series — during the early-to-mid 2000s, when Sony's proprietary Giga Pocket platform was a flagship feature differentiating VAIO desktops from commodity PCs. Giga Pocket allowed users to watch, pause, and record live analog TV, functioning much like a personal video recorder (PVR/DVR) integrated into the PC. The PCVA-IMB5A provides the hardware side of that system: it receives antenna or cable TV signals via the coaxial F-connector and captures video from camcorders or VCRs via the S-Video or composite RCA inputs. Because it is tied to Sony's OEM Giga Pocket software — which is no longer commercially available — this card is primarily of interest to collectors restoring original VAIO Giga Pocket systems, or to users who already have a copy of the Giga Pocket software and need to replace a failed card. The PCI interface is compatible with any standard PCI slot, but full functionality requires the matching Sony software environment.
This Sony PCVA-IMB5A Giga Pocket TV Tuner and Capture Card has been inspected and appears to be in good used condition. It was pulled from a Sony VAIO desktop system where it was previously in service. The card and bracket show normal handling wear consistent with prior installation; the PCB and connectors look clean with no visible damage. This card has not been powered up or tested at our facility. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Sony |
Model: |
PCVA-IMB5A |
MPN: |
PCVA-IMB5A |
Secondary Model: |
ENX-21 |
PCB Part Number: |
1-862-908-51 |
Type: |
PCI TV Tuner & Capture Card |
SKU: |
24516 |
Interface: |
PCI |
Tuner Type: |
Analog TV Tuner (ALPS module) |
Video Inputs: |
Coaxial/F-type (antenna), S-Video, Composite RCA |
Audio Inputs: |
RCA stereo audio input |
Compatible With: |
Sony VAIO Desktop PCs with Giga Pocket |
Software: |
Sony Giga Pocket software (required) |
Form Factor: |
Half-height PCI card |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Card only; no software, cables, or accessories included |
Condition Notes: |
This Sony PCVA-IMB5A Giga Pocket TV Tuner Card has been inspected and appears to be in good used condition. Pulled from a VAIO desktop; not powered or tested at our facility. Connectors and PCB appear clean. Please contact us with questions. |
