Description
Sony ODM Switch Board 20-Toggle Switch PCB w/ 8-Foot 37-Pin 25-Pin Data Cable
Industrial control switch board manufactured by Sony featuring 20 toggle switches mounted on a PCB. Connects via 8-foot data cable with 37-pin and 25-pin D-Sub connectors for equipment interfacing and signal control.
Specifications & What's Included

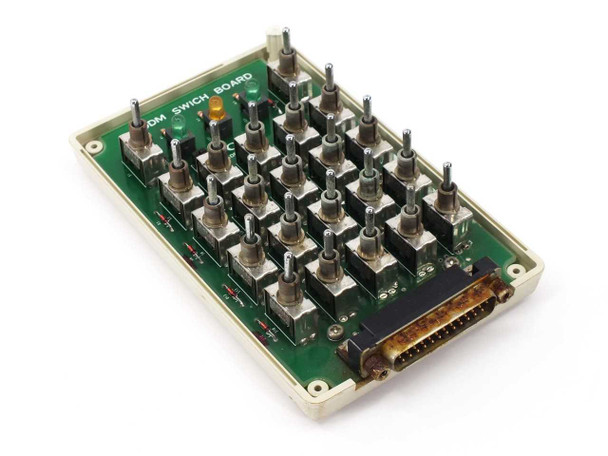

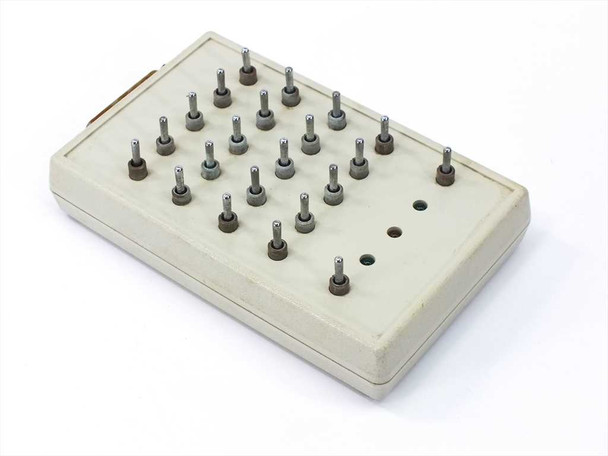

- 20 toggle switches on PCB module
- 8-foot data cable with OKI Electric Cable

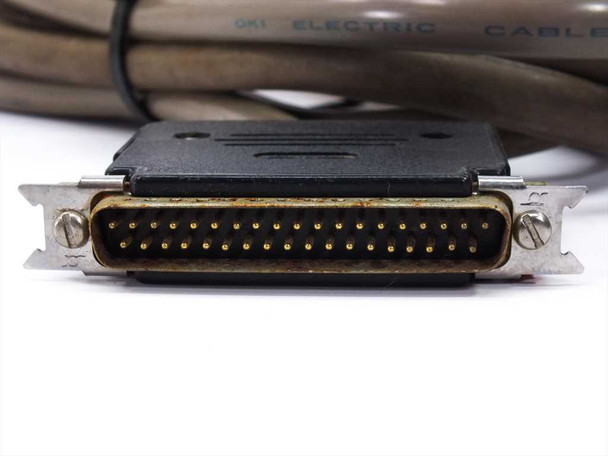

- 37-pin D-Sub male connector (cable end)

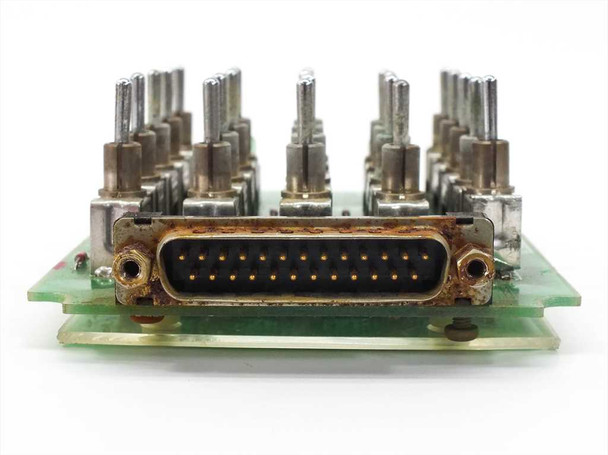

- 25-pin D-Sub female connector (cable end and PCB)
- 3 LED indicators (green and amber)
- PCB dimensions: approximately 9 in x 4 in x 4 in
- Manufactured in Japan
Applications
Switch boards of this type were used in telecom equipment, industrial control systems, and test instrumentation from the 1980s–2000s. The dual D-Sub connector configuration allowed integration with legacy telecom switches, PBX systems, and data network hardware. Commonly found in equipment rack installations where manual control and status monitoring via toggle switches and LED indicators were required.
Condition: Used

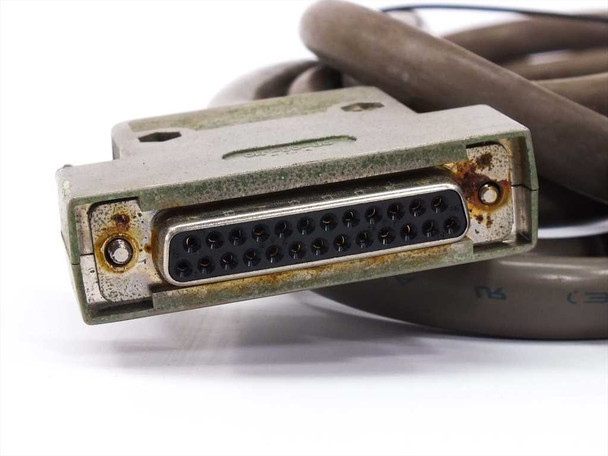

This Sony ODM Switch Board PCB has been inspected and appears to be in good physical condition overall. It cannot be tested at our facility. The white plastic enclosure shows general aging and surface dirt consistent with its age and prior use in a video production environment. The 25-pin D-sub connector on the board edge and the metal housings on both cable ends show noticeable corrosion, as visible in the photos. The toggle switches and PCB components appear intact with no obvious physical damage. The included 8-foot OKI Electric Cable data cable, with its 37-pin and 25-pin connectors, is included as shown. Please view our photo set and contact us if you have any questions.
This Sony ODM Switch Board PCB has been inspected and appears to be in good physical condition overall. It cannot be tested at our facility. The white plastic enclosure shows general aging and surface dirt consistent with its age and prior use in a video production environment. The 25-pin D-sub connector on the board edge and the metal housings on both cable ends show noticeable corrosion, as visible in the photos. The toggle switches and PCB components appear intact with no obvious physical damage. The included 8-foot OKI Electric Cable data cable, with its 37-pin and 25-pin connectors, is included as shown. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Sony |
Model: |
ODM Switch Board |
MPN: |
ODM Switch Board |
Type: |
Toggle Switch PCB / Switch Board |
SKU: |
48660 |
Country/Region of Manufacture: |
Japan |
Number of Switches: |
20 toggle switches |
Connector Type 1: |
37-Pin D-Sub (male, on cable end) |
Connector Type 2: |
25-Pin D-Sub (female, on cable end) |
Board Connector: |
25-Pin D-Sub female (on PCB edge) |
Cable Length: |
8 feet (approx. 2.4 m) |
Cable Manufacturer: |
OKI Electric Cable |
Form Factor: |
Handheld / Standalone PCB Module |
PCB Dimensions: |
Approx. 9 in x 4 in x 4 in |
Indicators: |
3 LEDs on PCB (green and amber visible) |
Seller Notes: |

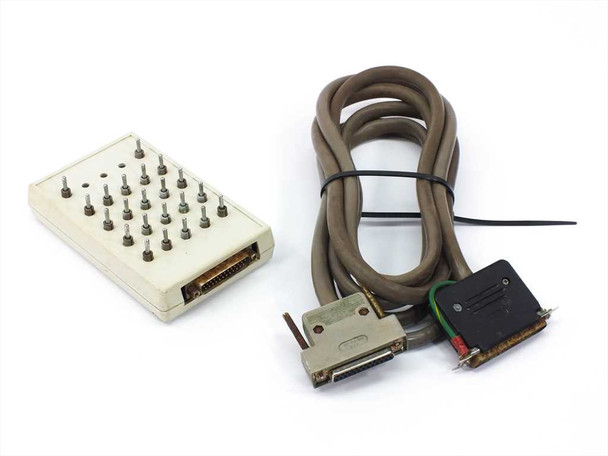

Includes switch board PCB in enclosure and 8-ft data cable with 37-pin and 25-pin connectors |
Condition: |
Used – Inspected, Cannot Be Tested |
Condition Notes: |
Sony ODM Switch Board PCB inspected, appears in good physical condition. Cannot be tested. D-sub connectors on board and cable ends show corrosion. Toggle switches and PCB intact. Includes 8-ft 37-pin/25-pin data cable. Sold as-is. |
