Description
Sony PCGA-DB7 Vaio Laptop Docking Station DV SCSI RCA Network Audio Video
The Sony PCGA-DB7 is a full-featured docking station designed for Sony Vaio laptops of the late 1990s and early 2000s. It connects via a proprietary Vaio dock connector on the laptop's underside and instantly expands the laptop's connectivity to a broad range of desktop peripherals — eliminating the need to plug and unplug individual cables each time. Made in Japan.
Specifications & What's Included
- Manufacturer: Sony
- Model: PCGA-DB7
- Type: Laptop docking station / port replicator

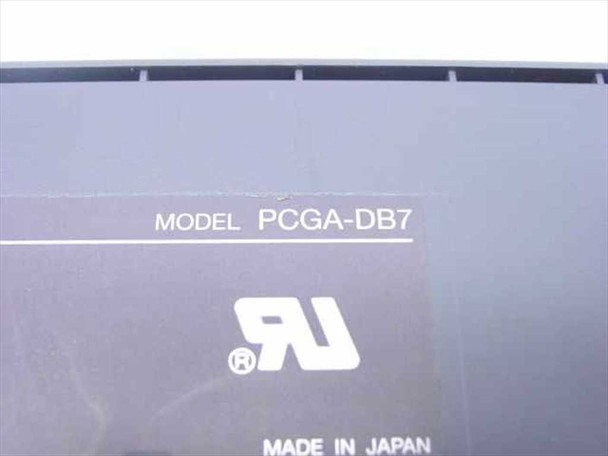

- Country of Manufacture: Japan (per bottom label)
- Connection to laptop: Proprietary Sony Vaio dock connector
- Network: RJ-45 LAN port
- Video output: VGA (DB-15) port
- DV port: DV In/Out (IEEE 1394 / FireWire)
- RCA video: Composite RCA video input
- SCSI: SCSI connector (rear panel)
- USB: USB Type-A port(s)
- Serial: DB-9 RS-232 serial port
- Parallel: DB-25 parallel port
- Audio: Headphone/line out and microphone in jacks

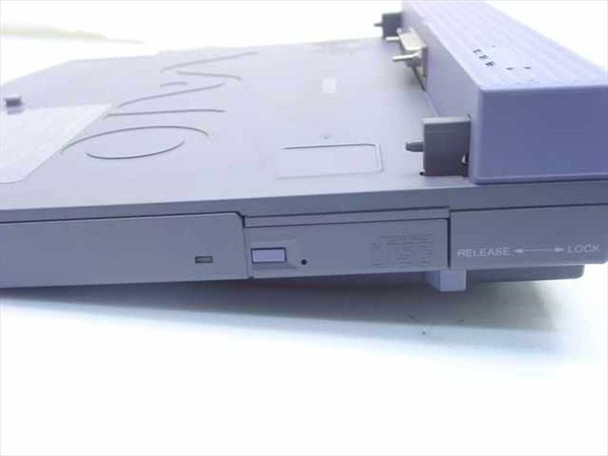

- Laptop lock mechanism: Release/Lock slider on side
- Drive bay: Media/optical drive bay on side
- Includes: Docking station only — no power adapter, cables, or laptop
Applications
The PCGA-DB7 was part of Sony's accessory ecosystem for the Vaio notebook line during the late 1990s to early 2000s — an era when Sony invested heavily in multimedia-capable laptops with DV video editing as a selling point. The dock was designed to sit on a desk and serve as a permanent connection hub: a user could slide the Vaio in and immediately have access to a full desktop monitor via VGA, a wired network connection, external speakers, a printer via the parallel port, and SCSI storage or scanners — all without touching individual cables. The DV In/Out port made it particularly useful alongside Sony's MiniDV camcorders, which were popular at the time. The RCA composite video input allowed analog video sources to feed into the laptop for capture. Today the PCGA-DB7 is sought by collectors and users maintaining legacy Vaio systems, as well as anyone using original Sony Vaio hardware in a dedicated workstation setup.
This Sony PCGA-DB7 Vaio Laptop Docking Station has been inspected and appears to be in good used condition. It has not been powered up or tested at our facility, but it came out of a working environment where it was previously in use. The housing shows minor surface scuffs typical of normal use, and the port connectors appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sony |
Model: |
PCGA-DB7 |
MPN: |
PCGA-DB7 |
Type: |
Laptop Docking Station |
SKU: |
25305 |
Compatible With: |
Sony Vaio Laptops |
Connectivity: |
DV In/Out, SCSI, RCA Video, LAN, USB, Serial, Parallel, Audio |
Interface: |
Proprietary Sony Vaio dock connector |
Video Output: |
VGA (DB-15) |
Audio Ports: |
Headphone/Line Out, Microphone In |
Network Port: |
RJ-45 LAN |
USB Ports: |
USB Type-A |
Serial Port: |
DB-9 RS-232 |
Parallel Port: |
DB-25 |
SCSI Port: |
Yes — SCSI connector present |
DV Port: |
DV In/Out (IEEE 1394 / FireWire) |
RCA Video: |
RCA composite video input |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Desktop Docking Station |
Seller Notes: |
Docking station only — no power adapter, cables, or laptop included. |
Condition Notes: |
This Sony PCGA-DB7 Vaio Laptop Docking Station has been inspected and is in good used condition. Not bench-tested at our facility but pulled from a working environment. Minor surface scuffs typical of use. Please contact us with any questions. |
