Sony BVH-2500 1-Inch Type C Broadcast VTR Videocorder SMPTE Reel-to-Reel

Sony BVH-2500 1-Inch Type C Broadcast VTR Videocorder SMPTE Reel-to-Reel

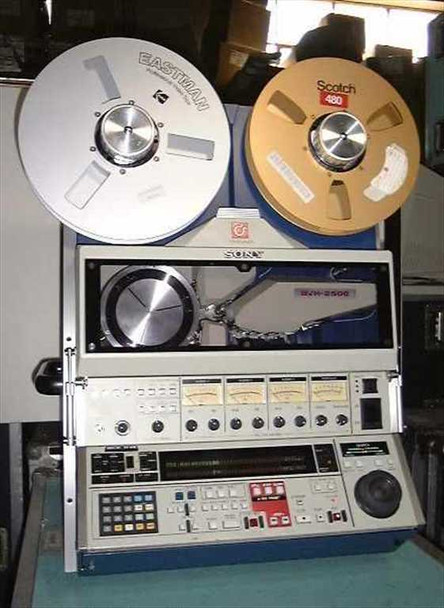

The Sony BVH-2500 is a professional 1-inch helical scan broadcast video tape recorder built to the SMPTE Type C format standard. It was developed as a successor to the BVH-2000 — Sony's widely adopted Type C VTR that set the benchmark for broadcast reel-to-reel video in the late 1970s and 1980s — and added capabilities for still-picture recording and playback on a per-frame or per-field basis, along with frame/field replacement of recorded still images. The unit is rated for 100-120V AC and can be converted to European (220-240V) input voltage.

Specifications & What's Included

• Manufacturer: Sony
• Model: BVH-2500
• Format: SMPTE Type C, 1-inch helical scan
• Tape Width: 1 inch
• Still-frame record and playback — per frame or per field
• Frame/field replace — overwrite a single recorded frame or field with new content
• Slow-speed and very slow-speed recording capability
• Input voltage: 100-120V AC (convertible to 220-240V Euro)
• Rear panel breakers: 8A and 10A
• Front panel: VU meters (4 meters visible), transport controls, numeric keypad, STILL/display readout, jog/shuttle knob
• Remote connectors: D-sub (Remote 1, Remote 2, Remote Out, Remote 3)
• Video connectors (BNC): Video 1, Video 2, Ref Video, Frame Pulse, DC, Spare, TBC, Time Code, sync outputs
• Audio connectors: XLR — Audio 1, Audio 2, Audio 3 (input and output pairs)
• Additional: multi-pin connector (rear panel)
• Includes: two road cases (one with unit on casters, one with tape reels and documentation)
• Tape reels included: Eastman and Scotch 480 reels visible in photos

Applications

The BVH-2500 was part of Sony's Type C broadcast VTR lineup, the professional 1-inch reel-to-reel format that became the dominant mastering and studio standard in broadcast television through the late 1970s and most of the 1980s. SMPTE Type C replaced the earlier quad (2-inch) format for many facilities and was the go-to choice for network broadcast, post-production mastering, and distribution duplication. The BVH-2500's frame-accurate still-frame and frame-replace capabilities made it well suited for applications beyond straight playback, including production of master tapes for video disc authoring, animation and computer graphics recording, slide-to-video duplication, and time-lapse or very slow-speed recording workflows. It was used in broadcast facilities, post-production houses, and professional video production environments worldwide. Today, BVH-2500 units are sought by archivists, broadcasters, and institutions needing to play back or transfer legacy 1-inch Type C tape archives, as working Type C machines are increasingly scarce.
