Sony PVM-8043MD 8" Hi-Res Medical Trinitron Color Video Monitor 450 TVL
The Sony PVM-8043MD is an 8-inch medical-grade color video monitor built around Sony's Super Fine Pitch Trinitron CRT tube. It was designed for clinical and surgical imaging environments where accurate color reproduction and high resolution are essential. The monitor accepts multiple video signal formats and can run on AC power or 12V DC battery power, making it suitable for both fixed-room and portable use.
Specifications & What's Included
- Brand: Sony
- Model: PVM-8043MD
- Display: 8-inch Super Fine Pitch Trinitron CRT
- Aperture grille pitch: 0.25mm
- Resolution: 450+ TV lines
- Video inputs: RGB, Y/C (S-Video), Y/R-Y/B-Y (component), Composite video

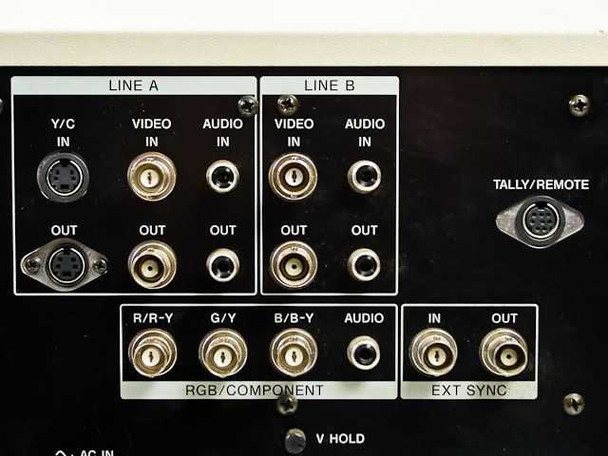

- Line A: Y/C In, Video In/Out, Audio In/Out
- Line B: Video In/Out, Audio In/Out
- RGB/Component: R/R-Y, G/Y, B/B-Y, Audio
- Ext Sync: In and Out
- Tally/Remote: multi-pin connector (rear)
- TV standards: NTSC, PAL, NTSC 4.43

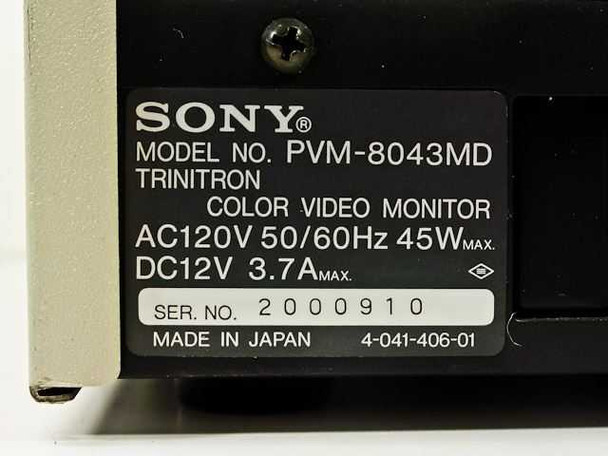

- AC power: 120V, 50/60Hz, 45W max
- DC power: 12V, 3.7A max

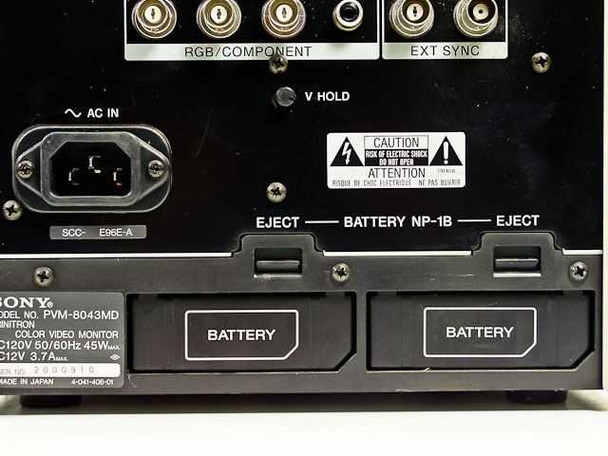

- Battery slots: dual Sony NP-1B battery bays with eject levers (batteries not included)
- Built-in speaker
- Integrated carrying handle
- Front panel controls: Aperture, Brightness, Chroma, Phase, Contrast, Volume, Power
- Side panel controls: Input A/B, RGB/YR-YB-Y, Line/RGB, Sync INT/EXT, Blue Only, Underscan, H/V Delay, Bias & Gain (R/G/B)
- Made in Japan
- Part number: 4-041-406-01
- Monitor only — no batteries, cables, or accessories included
Applications
The PVM-8043MD was designed for medical imaging applications including endoscopy, surgical monitoring, ultrasound, and laboratory microscopy. Medical-grade monitors like the PVM series differ from consumer displays in their color accuracy requirements: endoscopic and surgical imaging depends on faithful color rendition to help clinicians distinguish tissue, detect anomalies, and evaluate what they see through a camera or scope. The Trinitron CRT technology Sony used in this series was well regarded in professional video and medical environments of the late 1990s and early 2000s for its flat aperture-grille screen geometry and consistent brightness across the display area. The dual battery bay design made the PVM-8043MD practical for mobile surgical suites, field medical use, and transport between rooms without a fixed AC outlet. The multi-format video input section (composite, Y/C, component, and RGB) allowed it to interface with a wide range of camera systems and medical imaging equipment from different manufacturers. Today these monitors continue to be used in legacy medical setups, veterinary practices, educational lab environments, and by video professionals who value the Trinitron CRT for its color characteristics.
This Sony PVM-8043MD 8" Medical Trinitron Color Video Monitor is in used condition. The unit powers on — the front panel display is visible and active in our photos. The bezel and front panel surround show noticeable yellowing and surface discoloration consistent with age, and there is grime buildup around the Sony logo and the base of the front controls. The CRT screen itself appears clean and undamaged in the photos. The rear panel connectors appear intact. The two Sony NP-1B battery bays are present but no batteries are installed. Please view our photo set and contact us if you have any questions.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
Sony |
Model: |
PVM-8043MD |
MPN: |
PVM-8043MD |
Type: |
Medical Color Video Monitor |
SKU: |
42860 |
Screen Size: |
8 inches |
Display Technology: |
Trinitron CRT (Super Fine Pitch) |
Aperture Grille Pitch: |
0.25mm |
Resolution: |
450+ TV Lines |
Video Inputs: |
RGB, Y/C, Y/R-Y/B-Y, Composite Video |
Input Lines: |
Line A and Line B (Y/C, Video, Audio In/Out each) |
RGB/Component Input: |
R/R-Y, G/Y, B/B-Y, Audio |
Ext Sync: |
In and Out |
Tally/Remote: |
Yes — multi-pin connector on rear |
TV Standards: |
NTSC, PAL, NTSC 4.43 |
Power Input (AC): |
AC 120V, 50/60Hz, 45W max |
Power Input (DC): |
DC 12V, 3.7A max |
Battery Compatibility: |
Sony NP-1B (x2 slots, batteries not included) |
Speaker: |
Built-in |
Front Panel Controls: |
Aperture, Brightness, Chroma, Phase, Contrast, Volume, Power |
Side Panel Controls: |
A/B, RGB/YR-YB-Y, Line/RGB, Sync INT/EXT, Blue Only, Underscan, H/V Delay, Bias & Gain (R/G/B) |
Application: |
Endoscopy, Ultrasound, Surgical, Lab Microscopy |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Portable / Benchtop |
Seller Notes: |
Monitor only — no batteries, cables, or accessories included. |
Condition Notes: |
This Sony PVM-8043MD 8" Medical Trinitron Color Video Monitor is in used condition. Unit powers on per photos. Bezel shows yellowing and grime typical of age. No batteries installed. Please contact us with any questions. |
