Sonos ZP80 ZonePlayer Wireless Multi-Room Digital Audio Receiver SonosNet

Sonos ZP80 ZonePlayer Wireless Multi-Room Digital Audio Receiver SonosNet

The Sonos ZP80 ZonePlayer is a dedicated network audio streaming component designed for Sonos whole-home music systems. It connects to your existing stereo or home theater receiver via analog RCA or digital audio outputs, turning any audio system into a Sonos zone. The ZP80 communicates with other ZonePlayers over Sonos's proprietary SonosNet wireless mesh or via wired Ethernet, and is controlled through the Sonos app or a Sonos controller.

Specifications & What's Included

• Model: Sonos ZP80 (ZonePlayer 80)
• Wireless: SonosNet proprietary peer-to-peer mesh network

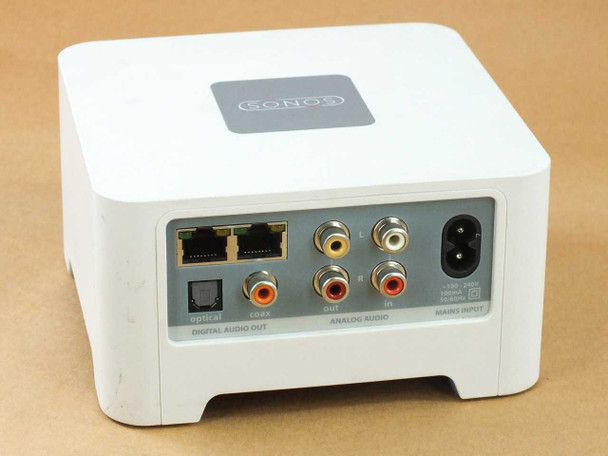

• Network: 2-port Ethernet switch (RJ45) — connects to wired network and passes through to another device
• Digital Audio Output: Optical (TOSLINK) and Coaxial (RCA)
• Analog Audio Output: Stereo RCA (L/R)
• Analog Audio Input: Stereo RCA (L/R) — allows connection of a CD player, tuner, or portable audio device
• Supported formats: MP3, WMA, AAC, WAV, FLAC, AIFF, Ogg Vorbis
• Front-panel controls: Mute button, volume up/down
• Power: 100–240V, 100mA, 50/60Hz (universal voltage — readable on rear label)
• Mains connector: IEC C8 inlet (figure-8 / figure-8 style — power cord not included)
• Multi-zone synchronous playback and independent multi-stream playback supported
• Certifications: UL, CE, FCC (visible on bottom label)
• Included: ZP80 unit only — no power cord

Applications

The Sonos ZP80 was designed for use within Sonos's multi-room audio ecosystem, acting as a bridge between the Sonos network and a traditional amplified audio system. It is the right component when you want Sonos streaming in a room that already has a receiver or amplifier — the ZP80 feeds the audio signal out digitally or via analog RCA while your existing amp drives the speakers. It was released in the mid-2000s as part of Sonos's first-generation ZonePlayer lineup, alongside the self-amplified ZP100. These early ZonePlayers were notable for introducing a reliable, app-controlled whole-home audio concept that has since become the standard for residential audio distribution. The ZP80 is still used by Sonos customers maintaining legacy whole-home systems, as well as integrators and hobbyists building out multi-room setups with existing amplification. Because the ZP80 outputs both digital (optical and coax) and analog audio, it is flexible enough to connect to a wide range of receivers, preamps, and DACs.
