Somark International 8270 Hot Stamp Printing Machine Photo Lab Omron E5C4
The Somark International 8270 is a hot stamp printing machine built for photograph and photo processing lab applications. Made in Jacksonville, Florida by Somark International, this machine uses a heated stamp head with controlled temperature to imprint text or foil onto photographic prints or related media. The unit is mounted on a wheeled metal cabinet stand for easy positioning on the production floor.
Specifications & What's Included
- Brand: Somark International — Jacksonville, Florida, USA
- Model / Serial No.: 8270
- Machine type: Hot stamp / hot foil printing machine
- Application: Photograph processing lab printing and stamping
- Temperature controller: Omron E5C4, relay output, °F scale, range J 32–999°F, with ON indicator and RESET trim
- Timer: Omron H3CA (multi-range timer relay, visible on control panel)
- Control panel: RC brand digital readout display, Omron H3CA timer, push-button switch
- Print/stamp head assembly: heated stamping head with lateral positioning rails, wooden knob adjusters, and spring-loaded clamp guides

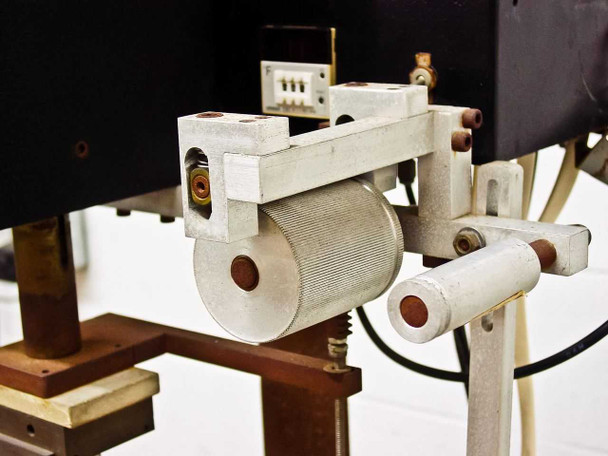

- Foil feed system: flanged aluminum supply spool with cardboard core, foil guide tube, dual knurled drive rollers, and adjustable roller carriage

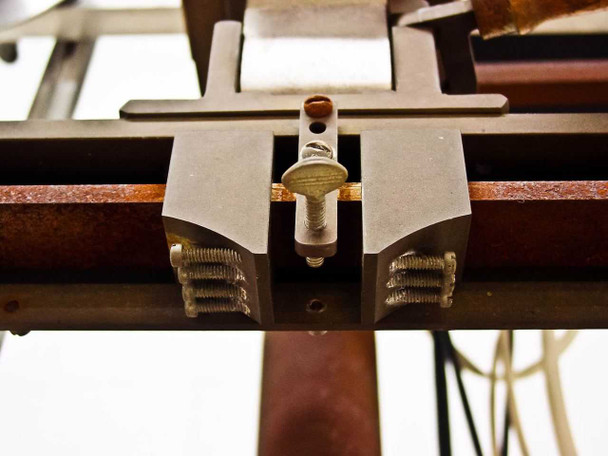

- Adjustable clamp block: thumbscrew rail clamp for workpiece positioning
- Base: welded steel rolling cabinet stand with four casters
- Work surface: wood-topped table surface on cabinet
Applications
Hot stamp printing machines like the Somark 8270 were standard equipment in commercial photograph processing labs and photo finishing operations from the 1970s through the 1990s. They are used to imprint identifying information — such as dates, lab codes, order numbers, or promotional marks — directly onto photographic prints using a heated die and foil tape or inked ribbon. The temperature controller (here the Omron E5C4) regulates the die heat precisely so the impression depth and ink transfer remain consistent across a production run. The timer (Omron H3CA) controls dwell time — how long the stamp contacts the media — which is critical to clean, sharp impressions without scorching. Beyond photo labs, similar hot stamp machines are used in packaging operations, label production, and light industrial marking wherever a permanent, heat-transferred imprint is needed on paper, card stock, or thin plastic. Vintage units like this are still sought by specialty photo finishers, restoration labs, and small-batch production shops that work with legacy photo paper formats.
This Somark International 8270 Hot Stamp Printing Machine was pulled from a working photograph processing lab where it was in active use. It has been inspected and is in good used condition overall. The machine frame and cabinet show typical wear consistent with lab use, including paint scuffs and minor surface oxidation on some metal components — most notably surface rust visible on the foil drive rollers and some of the support hardware. The rolling cabinet stand shows paint chips and minor dents. The Omron E5C4 temperature controller and Omron H3CA timer are present and mounted. The foil feed spool assembly and guide roller mechanism are intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Somark International |
Model: |
8270 |
MPN: |
8270 |
Type: |
Hot Stamp Printing Machine |
SKU: |
43478 |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Floor Stand (with caster base) |
Application: |
Photograph / Photo Processing Lab Printing |
Temperature Controller: |
Omron E5C4, °F, range J 32–999 |
Timer: |
Omron H3CA |
Seller Notes: |
Includes Omron E5C4 temp controller, Omron H3CA timer, foil feed spool assembly, and rolling cabinet stand |
Condition Notes: |
Somark International 8270 Hot Stamp Printing Machine pulled from a working photo lab. Inspected and in good used condition. Surface rust on foil rollers and hardware; cabinet shows paint wear. Omron E5C4 and H3CA present. |
