Description
Solopower CIGS Solar Cells 0.5V 14.5x1.5in Flexible Stainless Steel Lot 100
Lot of 100 raw CIGS thin-film solar cells manufactured by Solopower. Each cell measures 14.5 x 1.5 inches on flexible stainless steel substrate and outputs 0.5V with estimated power output of 1.25 to 1.5 watts per cell.
Specifications & What's Included
- Brand: Solopower; Model: SL1 Cell
- Type: CIGS (Copper Indium Gallium Selenide) Thin-Film Solar Cell
- Quantity: 100 cells
- Cell Voltage: 0.5V (measured)
- Estimated Power per Cell: 1.25–1.5 Watts
- Estimated Current per Cell: 2.5–3 Amps
- Dimensions: 368.5mm L × 38.1mm W × 0.253mm H
- Substrate: Flexible Stainless Steel
- Surface: Raw/Uncoated — requires encapsulation
Applications
These cells are used in DIY solar panel construction, research, and prototyping. Solopower SL1 cells were designed for integration into 60-cell solar panels. Raw cells must be encapsulated before outdoor deployment. Historically used in flexible solar applications requiring thin-profile, lightweight solutions.
Condition: New

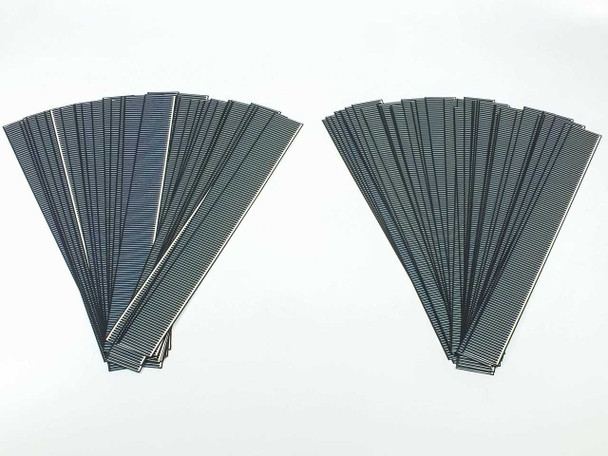

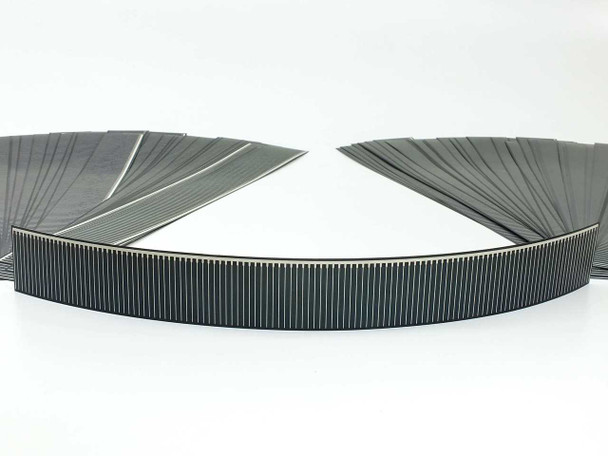

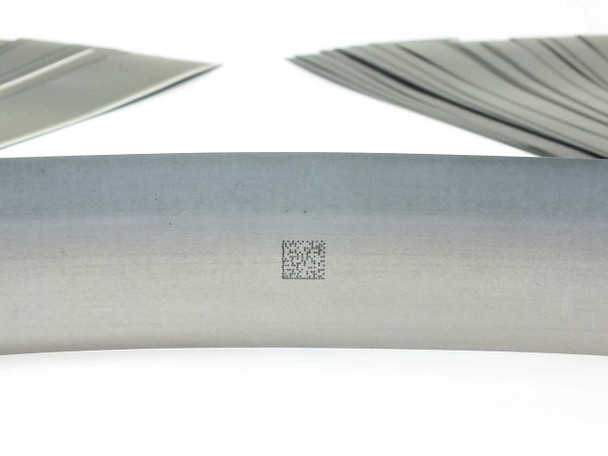

This lot of 100 Solopower CIGS thin-film solar cells is new old stock that came directly from the Solopower manufacturing plant in San Jose, California. The cells have not been installed or used. We do not have a manufacturer specification sheet for these cells, but we measured each cell at 0.50 volts open-circuit. For current and wattage estimates: these are the same cells Solopower used in their SL1 solar panels, which used 60 cells per panel to produce 75–90 watts — putting each cell at roughly 2.5 to 3 amps and 1.25 to 1.5 watts. The cells are raw and uncoated; they will need to be encapsulated before outdoor or weather-exposed use. Photos show the cells in excellent physical condition with no visible defects, damage, or oxidation on either the photovoltaic face or the stainless steel backing. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This lot of 100 Solopower CIGS thin-film solar cells is new old stock that came directly from the Solopower manufacturing plant in San Jose, California. The cells have not been installed or used. We do not have a manufacturer specification sheet for these cells, but we measured each cell at 0.50 volts open-circuit. For current and wattage estimates: these are the same cells Solopower used in their SL1 solar panels, which used 60 cells per panel to produce 75–90 watts — putting each cell at roughly 2.5 to 3 amps and 1.25 to 1.5 watts. The cells are raw and uncoated; they will need to be encapsulated before outdoor or weather-exposed use. Photos show the cells in excellent physical condition with no visible defects, damage, or oxidation on either the photovoltaic face or the stainless steel backing. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Technical Paper: |
|
Brand: |
Solopower |
Model: |
SL1 Cell |
MPN: |
SL1 |
Type: |
CIGS Thin-Film Solar Cell |
SKU: |
48017 |
Quantity in Lot: |
100 cells |
Cell Voltage: |
0.5V (measured) |
Estimated Power per Cell: |
~1.25 to 1.5 Watts |
Estimated Current per Cell: |
~2.5 to 3 Amps |
Cell Length: |
368.5mm (14.5 inches) |
Cell Width: |
38.1mm (1.5 inches) |
Cell Thickness: |
0.253mm (0.01 inches) |
Substrate Material: |
Flexible Stainless Steel |
Solar Cell Technology: |
CIGS (Copper Indium Gallium Selenide) |
Flexibility: |
Semi-Flexible |
Surface Coating: |
Raw / Uncoated — requires encapsulation |
Compatible With: |
Solopower SL1 Solar Panel (60 cells per panel) |
Application: |
DIY Solar Panel Construction, R&D, Prototyping |
Condition: |
New — New old stock from Solopower plant, San Jose CA |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Lot of 100 raw unencapsulated CIGS cells. Must be encapsulated before outdoor use. |
Condition Notes: |
New old stock Solopower CIGS solar cells, lot of 100. Came directly from Solopower plant, San Jose CA. Measured at 0.50V per cell. Raw/uncoated — must be encapsulated before outdoor use. No visible defects. Please contact us with any questions. |
