Description
Sola Electric 63-13-210 1000VA CVS Constant Voltage Transformer 95-130V 120V
Ferroresonant constant voltage transformer (CVS) that stabilizes AC input between 95–130V and outputs regulated 120V AC. Rated for 1000 VA with four NEMA 5-15R outlets on a benchtop form factor.
Specifications & What's Included
- Model: 63-13-210 | 1000 VA | Single Phase, 60 Hz
- Input: 95–130V AC, 11.8A max | Output: 120V AC, 8.34A max
- Voltage Regulation: +10% / −20% of nominal
- Four NEMA 5-15R outlets
- Harmonic Neutralized CVS (Ferroresonant) technology

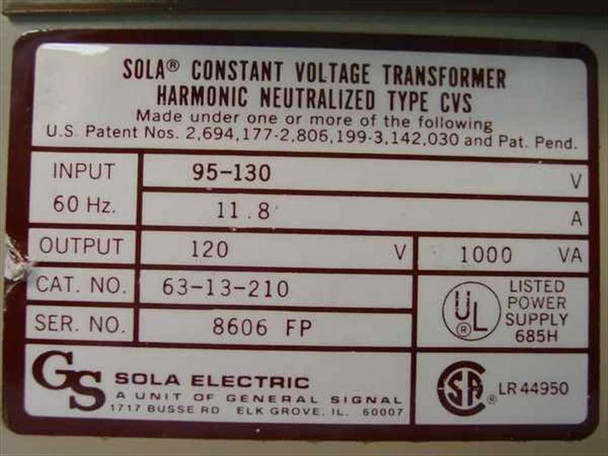

- UL Listed (685H), CSA certified | Made in USA (Elk Grove, IL)
- Unit only; no accessories included
Applications
CVS transformers regulate voltage for sensitive electronics in environments with unstable or fluctuating line voltage. Historically used to protect computer systems, telecommunications equipment, test instruments, and light industrial machinery. Ferroresonant designs provide voltage stabilization without active circuitry and continue to serve legacy systems requiring steady 120V input.
Condition: Used
This Sola Electric 63-13-210 1000VA CVS Constant Voltage Transformer has been powered and tested at our facility and is in good working order. All four outlet receptacles were confirmed to output 115 VAC under test. The unit produces an audible hum when energized — this is normal operating behavior for ferroresonant constant voltage transformers of this type, not a defect. Cosmetically the unit shows typical wear for its age: scuffing and light soiling on the beige enclosure panels, with some paint chipping visible on the front face around the outlet area. The nameplate label on the base is intact and fully legible. Please view our photo set and contact us if you have any questions.
This Sola Electric 63-13-210 1000VA CVS Constant Voltage Transformer has been powered and tested at our facility and is in good working order. All four outlet receptacles were confirmed to output 115 VAC under test. The unit produces an audible hum when energized — this is normal operating behavior for ferroresonant constant voltage transformers of this type, not a defect. Cosmetically the unit shows typical wear for its age: scuffing and light soiling on the beige enclosure panels, with some paint chipping visible on the front face around the outlet area. The nameplate label on the base is intact and fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Sola Electric |
Model: |
63-13-210 |
MPN: |
63-13-210 |
Type: |
Constant Voltage Transformer (CVS), Ferroresonant |
SKU: |
13055 |
Series: |
Mini/Micro Computer Regulator |
Power Rating (VA): |
1000 VA |
Input Voltage: |
95-130V AC |
Input Current: |
11.8A |
Output Voltage: |
120V AC |
Output Current: |
8.34A Max |
Frequency: |
60 Hz |
Voltage Regulation: |
+10% / -20% of nominal |
Number of Outlets: |
4 x NEMA 5-15R |
Phase: |
Single Phase |
Transformer Technology: |
Harmonic Neutralized CVS (Ferroresonant) |
Form Factor: |
Benchtop / Desktop |
Certifications: |
UL Listed (685H), CSA (LR 44950) |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Elk Grove, IL |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; no accessories. All 4 outlets confirmed at 115 VAC. Audible hum when powered on. |
Condition Notes: |
Sola Electric 63-13-210 1000VA CVS transformer tested at our facility — in working order. All 4 outlets confirmed at 115 VAC. Audible hum when powered on (normal for ferroresonant type). Cosmetic wear on enclosure. |
