Description
SoftDSP SDS200 PC-Based Digital Storage Oscilloscope 2CH 200MHz 5GS/s USB
The SoftDSP SDS200 is a portable, USB-connected PC-based digital storage oscilloscope (DSO) offering 2-channel, 200 MHz bandwidth with 5 GS/s equivalent-time sampling in a compact, palm-sized enclosure. It connects to a Windows PC via USB and operates with SoftDSP's SoftScope software, turning a standard laptop or desktop into a full-featured mid-to-high-range oscilloscope without the cost of a standalone bench instrument.
Specifications & What's Included
- Model: SoftDSP SDS200
- Type: PC-Based Digital Storage Oscilloscope (DSO)

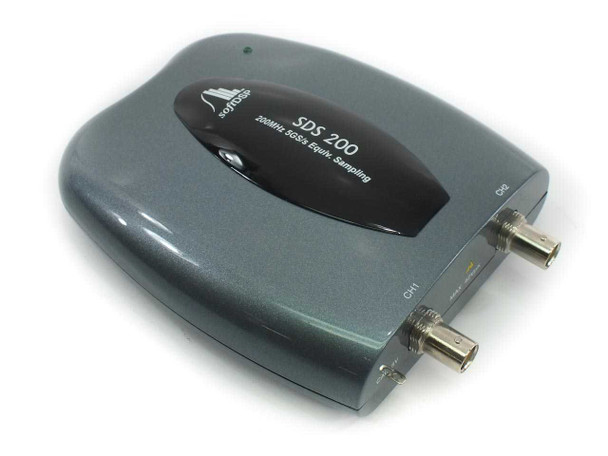

- Channels: 2 (CH1, CH2 — BNC inputs on right side)
- Bandwidth: 200 MHz
- Equivalent-Time Sample Rate: 5 GS/s

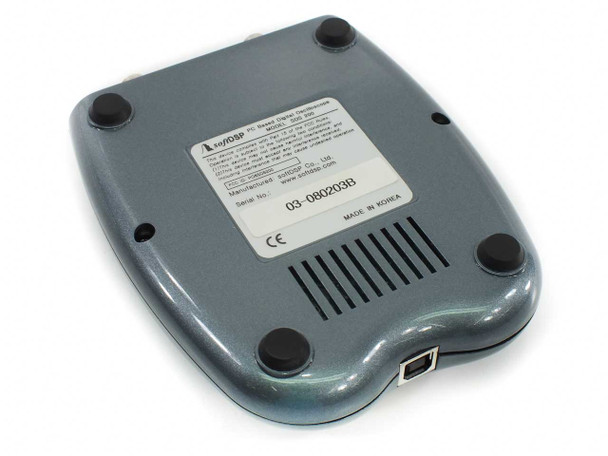

- Interface: USB (Mini-B connector on bottom panel)
- Software: SoftScope (SoftDSP Co., Ltd.) — CD included
- Form Factor: Portable / handheld; no internal display (PC display used)
- Country of Manufacture: South Korea

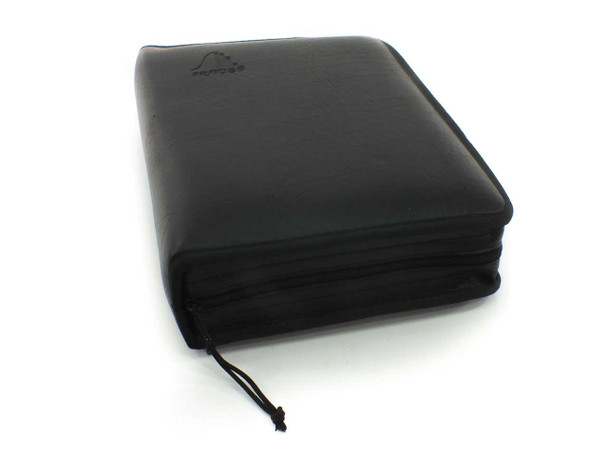

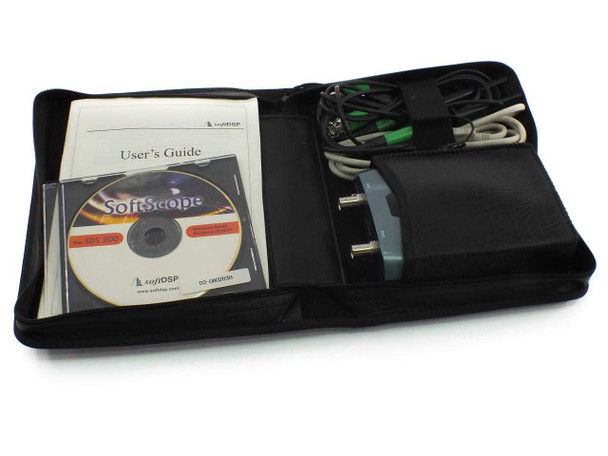

- Includes: SoftDSP SDS200 unit, 2 oscilloscope probes, USB cable, SoftScope software CD, User's Guide, and zippered soft carrying case
Applications
PC-based oscilloscopes like the SDS200 are used in electronics development, field service, and engineering education where portability matters and a full-sized bench oscilloscope is impractical or cost-prohibitive. The SDS200 is particularly useful for R&D engineers, technicians doing board-level debug, and students who want high-bandwidth capture without investing in a standalone instrument. Because it relies on a host PC for its display and processing, it works well in laptop-based field setups and small lab environments. The 200 MHz bandwidth and 5 GS/s equivalent sampling make it capable of resolving digital signals well into the RF range for many common embedded and communications applications. SoftDSP introduced the SDS series in the early-to-mid 2000s as an affordable alternative to standalone DSOs in the $1,000–$3,000 price tier.
This SoftDSP SDS200 PC-Based Digital Storage Oscilloscope has been visually inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service, but has not been powered up or tested at our facility. The unit shows normal wear consistent with prior use. The carrying case, two probes, USB cable, SoftScope software CD, and User's Guide are all included as shown in the photos. Please review our photo set and contact us with any questions.
Warranty Information
Additional Information
Brand: |
SoftDSP |
Model: |
SDS200 |
MPN: |
SDS 200 |
Type: |
PC-Based Digital Storage Oscilloscope (DSO) |
SKU: |
51922 |
Number of Channels: |
2 |
Bandwidth: |
200 MHz |
Sample Rate: |
5 GS/s (Equivalent) |
Interface: |
USB |
Software: |
SoftScope (included on CD) |
Form Factor: |
Portable / Handheld |
Country/Region of Manufacture: |
South Korea |
Connectivity: |
USB to PC |
Includes: |
Carrying case, 2 probes, USB cable, SoftScope CD, User's Guide |
Seller Notes: |
Includes carrying case, 2 probes, USB cable, SoftScope software CD, and User's Guide. |
Condition Notes: |
This SoftDSP SDS200 PC-Based DSO has been visually inspected and appears in good used condition. Pulled from a working environment; not tested at our facility. Includes case, probes, USB cable, SoftScope CD, and User's Guide. |
