SMS 0005672 Rev F 16-Bit ISA Controller Card Vintage 1988 OMTI Chipset

(No reviews yet) Write a Review
SKU:
43744
MPN:
0005672 Rev F
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

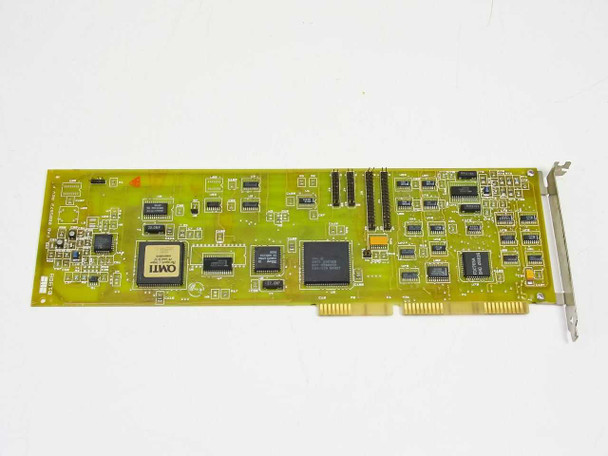

  • SMS 0005672 Rev F 16-bit ISA controller card – top component side showing OMTI chipset and full PCB layout
  • SMS 0005672 Rev F 16-bit ISA controller card – solder side (bottom) showing PCB traces and ISA edge connector
  • SMS 0005672 Rev F PCB close-up showing FAB 0005672 REV F silkscreen, SMS copyright 1988 marking, and secondary controller IC
$25.00
Was: $50.00
Current Stock: 1

Sold Out

Description

SMS 0005672 Rev F 16-Bit ISA Controller Card Vintage 1988 OMTI Chipset

16-bit ISA controller card manufactured in 1988 with OMTI chipset. Designed to interface storage and peripheral devices on ISA bus systems.

Specifications & What's Included

  • Brand: SMS | Model: 0005672 | Hardware Revision: F
  • Bus Interface: 16-bit ISA
  • Chipset: OMTI
  • Form Factor: Full-length ISA card
  • Manufacture Date: 1988
  • Card only — no cables or accessories

Applications

This controller card was used in IBM PC/XT/AT systems and other ISA-bus compatible computers from the 1980s and early 1990s. The OMTI chipset handled mass storage controller functions across legacy platforms. Compatible with any system featuring a full-length 16-bit ISA slot.

Condition: Used
This SMS 0005672 Rev F 16-Bit ISA Controller Card has been inspected and is in good condition. The PCB is clean with no visible cracks, broken traces, or missing components. The ISA edge connector contacts look intact. There is light general handling wear consistent with age on a board from 1988, but nothing that would indicate damage or misuse. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMS
Model:
0005672
MPN:
FAB 0005672 Rev F
Type:
16-Bit ISA Controller Card
SKU:
43744
Bus Interface:
ISA (16-bit)
Chipset:
OMTI
Hardware Revision:
Rev F
Manufacture Date:
1988
Form Factor:
Full-Length ISA Card
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only. No cables or accessories included.
Compatible With:
IBM PC/XT/AT and ISA-bus compatible systems
Condition Notes:
SMS 0005672 Rev F 16-Bit ISA Controller Card. Inspected and in good condition. PCB is clean, edge connector intact, light age-related wear only. Card only — no cables or accessories.
View AllClose

Related Products

Related Products

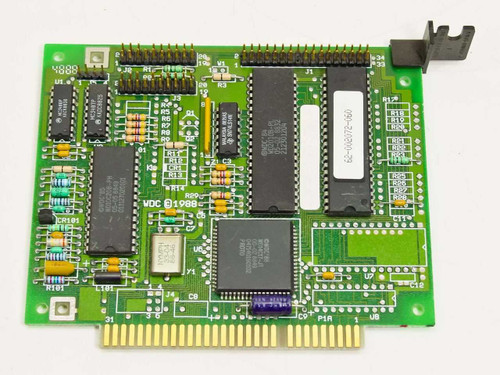

WDC 60-000210-02 Rev XO ISA controller card – front view showing PCB with WD2010B-PL chip and edge connector WDC 60-000210-02 Rev XO ISA controller card – rear/solder-side PCB view showing trace layout
Add to Cart
Quick view

WDC 60-000210-02 Rev XO Controller Card ISA Bus WD2010B-PL 1988 Vintage

WDC

$25.00
Was: $50.00
WDC 60-000210-02 Rev XO Controller Card ISA Bus WD2010B-PL 1988 VintageThis is a Western Digital hard disk controller card for ISA bus systems. The card manages data transfer between the computer and...
40777
SKU:
40777
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
WDC (Western Digital)
Model:
60-000210-02
MPN:
60-000210-02
Secondary Model:
62-002072-060
Type:
ISA Hard Disk Controller Card
SKU:
40777
Revision:
Rev XO
Main Controller Chip:
WD2010B-PL
Bus Interface:
ISA (8-bit)
Form Factor:
Half-Size ISA Card
Manufacture Date:
1988 (copyright date visible on PCB)
Compatible With:
ISA bus PC systems, vintage XT/AT computers
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
WDC 60-000210-02 Rev XO ISA Controller Card. Inspected, good used condition. PCB clean, no visible damage, edge connector shows normal age-related oxidation. Please contact us with any questions.
Digi DigiBoard 30000674 16-bit ISA controller card – top component side angled view showing full board length and IC population DigiBoard 30000674 ISA card – bracket end view showing high-density DB-style external connector on the slot bracket
Add to Cart
Quick view

Digi DigiBoard 30000674 16-Bit ISA Controller Card 30000642 30000624 Rev D

Digiboard

$75.00
Was: $150.00
Digi DigiBoard 30000674 16-Bit ISA Controller Card 30000642 30000624 Rev D The Digi DigiBoard 30000674 is a full-length 16-bit ISA expansion card designed to add multi-port asynchronous serial...
22332
SKU:
22332
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Brand:
Digi International
Model:
30000674
Secondary Model:
30000642
MPN:
30000674
PCB Assembly Number:
30000624
PCB Revision:
Rev D
SKU:
22332
Type:
ISA Serial Controller Card
Bus Interface:
16-Bit ISA
Form Factor:
Full-Length ISA Card
Connector Type:
High-Density DB-78 (approx.) External Connector
Logic ICs:
DM74ALS257N (National Semiconductor / Fairchild)
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
United States
Compatible With:
ISA-bus PCs, AT-class systems, DOS/Windows legacy hosts
Seller Notes:
Card only; no cables or software included.
Condition Notes:
Digi DigiBoard 30000674 16-bit ISA controller card. Inspected, appears in good used condition. PCB shows light handling wear; no cracks or damage noted. Bracket connector intact. Card only — no cables or software.
Cubix A3970 16-bit ISA Intelligent Environment Sensor card — full front (component side) view showing populated PCB, headers, and bracket Cubix A3970 ISA Sensor card — rear (solder side) view with warranty void sticker number 743581 visible
Add to Cart
Quick view

Cubix A3970 16-Bit ISA Intelligent Environment Sensor Card Rev F c.1993

Cubix

$25.00
Was: $50.00
Cubix A3970 16-Bit ISA Intelligent Environment Sensor Card Rev F c.1993Half-length ISA adapter card designed for environmental monitoring in Cubix server systems. Features an Intel 80C188 processor...
43027
SKU:
43027
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Cubix
Model:
A3970
MPN:
A3970
Type:
ISA Intelligent Environment Sensor Card
SKU:
43027
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair; pulled from a Cubix server
Country/Region of Manufacture:
United States
Form Factor:
Half-Length ISA Card
Bus Interface:
16-Bit ISA
Hardware Revision:
Rev F
Manufacture Date:
c.1993
Main Processor:
Intel 80C188 (C188XL12)
Compatible With:
Cubix Server Systems
Connector Types:
RJ-style port, dual hex rotary switches, multi-pin headers
Sensor Type:
Intelligent Environment / Environmental Monitoring
Bracket:
Full-height bracket included
Condition Notes:
Cubix A3970 ISA Environment Sensor card sold as-is for parts/repair. Pulled from a Cubix server dismantled for parts. Appears good cosmetically but functions cannot be tested. No functionality guaranteed.

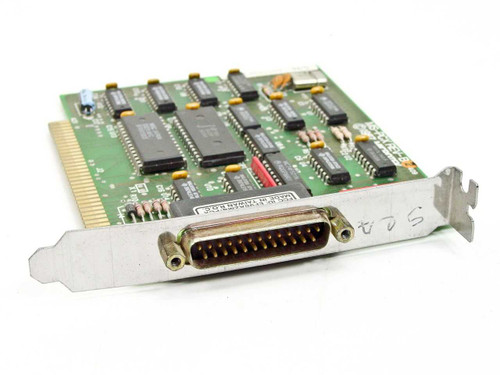

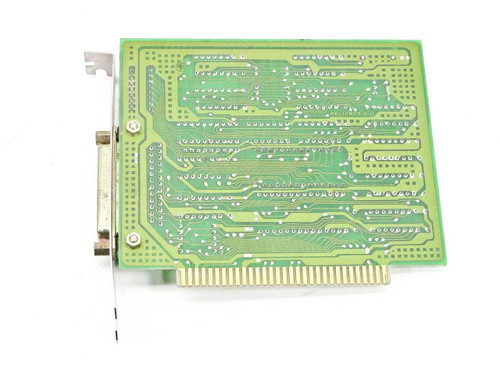

Microtek MS-PCX Rev B 8-bit ISA scanner controller card – angled front view showing DB25 connector and ISA edge connector Microtek MS-PCX Rev B – PCB reverse/solder side view showing ISA edge connector and DB25 bracket
