Description

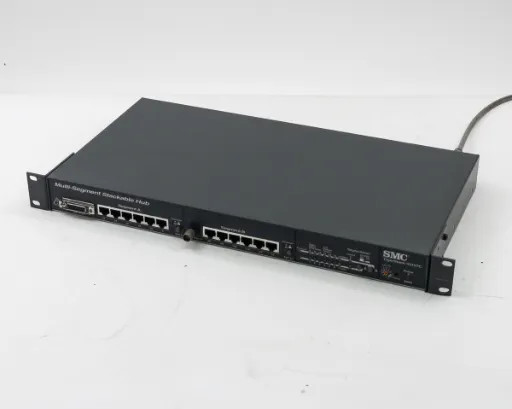

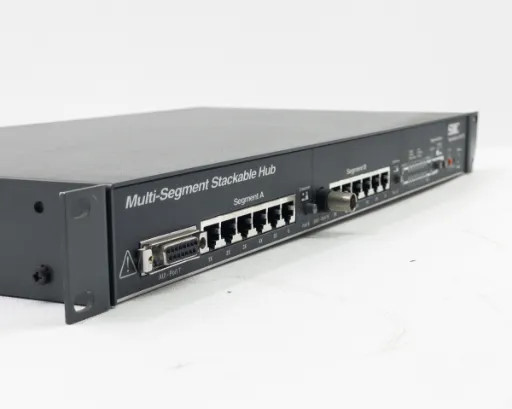

SMC TigerStack 3312TC 12-Port 10Base-T Stackable Hub BNC AUI 1U Rackmount
A 14-port Ethernet hub supporting 10Base-T, 10Base-2 (BNC), and 10Base-5 (AUI) connections. Designed for legacy network environments requiring multi-segment connectivity and stackable expansion via CSM uplink modules.
Specifications & What's Included
- Model: SMC 3312TC
- 14 total ports: 12 RJ45, 1 BNC, 1 AUI (DB15)
- Speed: 10 Mbps (10Base-T)
- Dual-segment architecture (Segment A and B)
- Stackable via CSM uplink connectors
- 1U rackmount form factor
- Unmanaged hub with NMM slot
- Power: 100-250V AC, 50-60 Hz
- Unit only; no stacking cables included
Applications
The TigerStack series was widely deployed in 1990s and early-2000s enterprise networks running 10Base-T Ethernet. These hubs provided centralized connection points for legacy networks and supported mixed-media environments with BNC coaxial and AUI transceiver attachments. Typical installations included departmental LANs, server rooms, and wiring closets in organizations standardized on Ethernet 10 Mbps infrastructure before Fast Ethernet adoption.

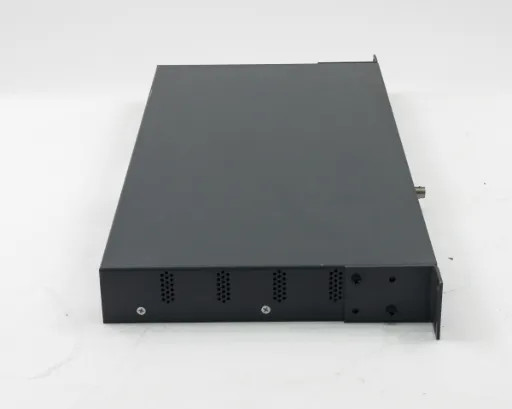

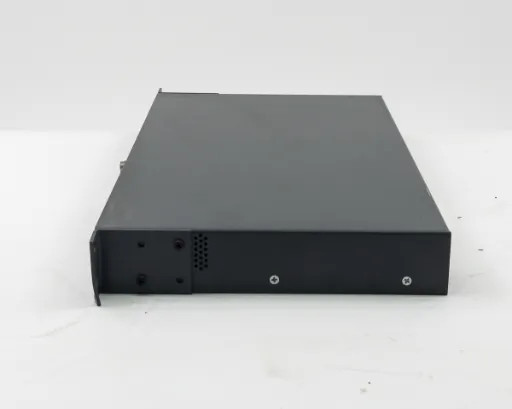

This SMC TigerStack 3312TC 12-Port 10Base-T Stackable Hub has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The chassis shows normal wear consistent with rack deployment — minor surface scuffing on the top and sides — but the front panel, port indicators, and controls are intact and clean. The rear stacking connectors and IEC power inlet are present and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
SMC |
Model: |
3312TC |
MPN: |
SMC3312TC |
Type: |
Multi-Segment Stackable Ethernet Hub |
SKU: |
11135 |
Number of Ports: |
14 total (12 RJ45, 1 BNC, 1 AUI) |
Port Speed: |
10 Mbps (10Base-T) |
Network Technology: |
10Base-T Ethernet |
Interface Type: |
RJ45, BNC (10Base-2), AUI (10Base-5) |
Uplink Port: |
CSM (Cascade Stack Module) uplink port |
Stacking: |
Yes — stackable via CSM uplink connectors |
Segmentation: |
Dual-segment (Segment A and Segment B) |
Form Factor: |
1U Rackmount |
Power Requirements: |
100-250V AC, 50-60 Hz, 0.50-0.25A |
Management Type: |
Unmanaged (NMM slot present) |
Connector Type: |
RJ45, BNC, AUI (DB15), IEC AC inlet |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no stacking cables included |
Condition Notes: |
SMC TigerStack 3312TC 12-Port 10Base-T Hub inspected and in good used condition. Pulled from a working environment where it was actively in use. Shows normal rack wear. Please view photos and contact us with any questions. |
