Description

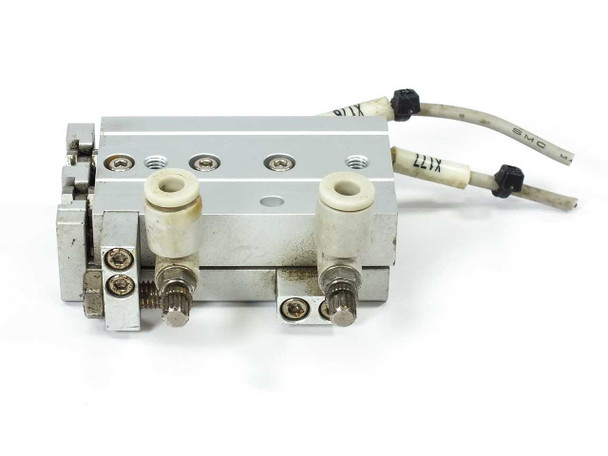

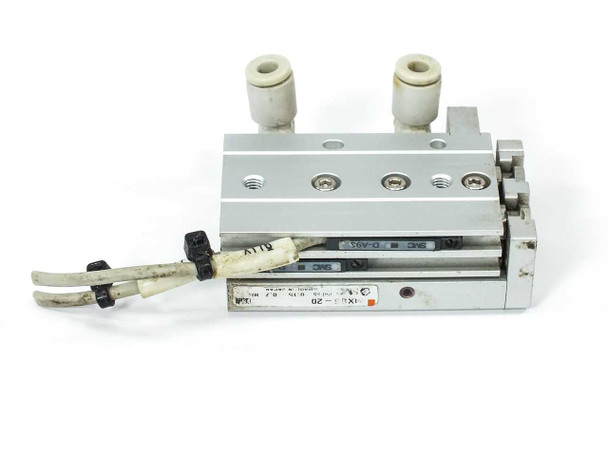

SMC MXS6-20 Pneumatic Guided Slide Cylinder Dual Rod 6mm Bore 20mm Stroke
The SMC MXS6-20 is a compact dual-rod pneumatic guided slide cylinder from SMC Corporation's MXS series. The dual-rod design provides high moment resistance and precise linear guidance without the need for a separate linear bearing, making it well suited for pick-and-place tooling, part transfer, and other precision positioning tasks where load offset or torque loads are a concern.
Specifications & What's Included
- Model: SMC MXS6-20
- Bore Size: 6 mm
- Stroke Length: 20 mm
- Operating Pressure: 0.15 to 0.7 MPa
- Rod Configuration: Dual rod (anti-rotation, guided)
- Port Type: Push-in tube fittings (top-mounted)
- Sensors: Two SMC D-A93 auto-switches mounted on body
- Body Material: Aluminum
- Country of Manufacture: Japan (Made in Japan per label)
- Note: Sensor wire connectors may be cut off — inspect photos carefully
Applications
The SMC MXS series guided slide cylinder is a standard component in factory automation and machine building. The dual-rod slide table design is widely used in semiconductor handling, electronics assembly, packaging machinery, and robotic end-of-arm tooling where a compact, guided linear motion unit is needed. The 6 mm bore and 20 mm stroke make the MXS6-20 particularly suited for light-load, short-travel positioning tasks — such as small part clamping, sensor positioning, or gripper actuation — in tight machine envelopes. SMC is one of the world's leading pneumatic component manufacturers, and the MXS series remains a common choice in automated production lines globally.
This SMC MXS6-20 Pneumatic Guided Slide Cylinder has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The aluminum body and slide mechanism show normal surface wear and some light grime consistent with prior use, as visible in the photos. Note that the sensor wire connectors on the two D-A93 sensors may be cut off — please review the photos closely for the current state of the sensor leads before purchasing. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SMC |
Model: |
MXS6-20 |
MPN: |
MXS6-20 |
SKU: |
47070 |
Type: |
Pneumatic Guided Slide Cylinder |
Series: |
MXS |
Bore Size: |
6 mm |
Stroke Length: |
20 mm |
Rod Configuration: |
Dual Rod |
Sensor Type: |
SMC D-A93 (x2) |
Port Type: |
Push-in tube fittings |
Body Material: |
Aluminum |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Compact / Slide Table |
Seller Notes: |
Includes two SMC D-A93 sensors; sensor wire connectors may be cut off. |
Condition Notes: |
This SMC MXS6-20 Pneumatic Guided Slide Cylinder is in good used condition, pulled from a working environment. Normal surface wear and light grime present. Note: sensor wire connectors may be cut off — see photos. |
