SMC ISE30-C6L-25-M High-Precision Digital Pressure Switch 12-24VDC MPa

SMC ISE30-C6L-25-M High-Precision Digital Pressure Switch 12-24VDC MPa

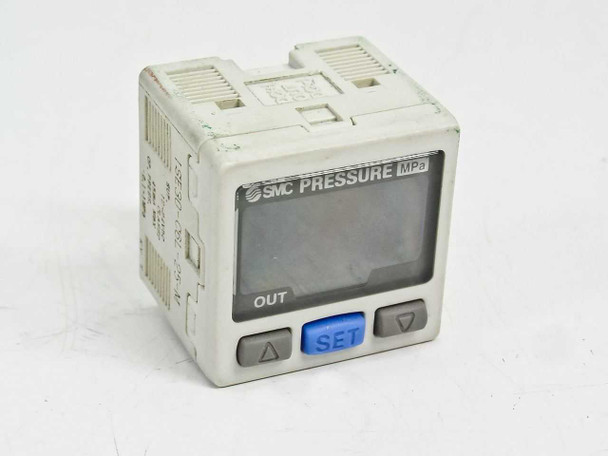

The SMC ISE30-C6L-25-M is a compact, high-precision digital pressure switch from SMC Corporation's ISE30 series, designed for monitoring and switching based on pneumatic pressure levels. It features a digital LCD display for direct pressure readout and a simple three-button interface (up, down, SET) for programming setpoint values. The unit measures pressure in MPa and provides a switching output signal when pressure crosses the programmed threshold.

Specifications & What's Included

• Model: ISE30-C6L-25-M
• Series: SMC ISE30
• Supply Voltage: 12–24VDC, Class 2
• Current Consumption: 45mA Max
• Operating Pressure Range: -0.1 to 1 MPa
• Pressure Display Unit: MPa
• Display: Digital LCD with numeric pressure readout
• Front Panel: OUT indicator, SET button, up/down navigation buttons
• Output: Switching output (OUT)
• Port Connection: Push-in (one-touch) pneumatic fitting — elbow-style, visible on unit
• Certifications: CE marked
• Country of Manufacture: Japan
• Included: Unit only

Applications

The SMC ISE30 series digital pressure switch is widely used in industrial pneumatic automation systems to monitor air pressure and trigger control actions when pressure rises above or drops below a set threshold. Typical applications include pneumatic cylinder control, vacuum confirmation, leak detection, and process pressure monitoring in manufacturing and assembly automation. These switches are commonly found on SMC pneumatic circuits, air preparation units, and inline monitoring points throughout factory automation equipment. The compact form factor and push-in fitting make them straightforward to integrate into existing pneumatic lines.
