SMC IDF3C Refrigerated Air Dryer AFM4000 Mist Separator 100V R12 w/ Drain Hose

SMC IDF3C Refrigerated Air Dryer AFM4000 Mist Separator 100V R12 w/ Drain Hose

The SMC IDF3C is a compact refrigerated air dryer designed to remove moisture from compressed air lines by chilling the air to near dew point, condensing the water vapor, and automatically draining it away. It ships with an SMC AFM4000 mist separator mounted at the outlet to provide a second stage of filtration, capturing residual oil mist and particulates before the dry air enters downstream equipment or processes.

Specifications & What's Included

• Manufacturer: SMC (Japan)
• Model: IDF3C
• Type: Refrigerated Air Dryer
• Input Power: AC100V 50Hz / AC100–110V 60Hz
• Refrigerant: R12, charge 175 ± 5gf

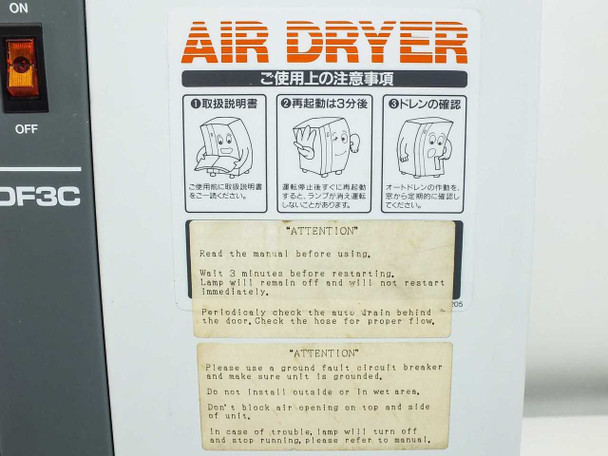

• Auto drain: yes (periodic auto-drain behind door — check hose for proper flow per unit label)
• Outlet mist separator: SMC AFM4000, Max Press. 10 kgf/cm² (142 PSI)

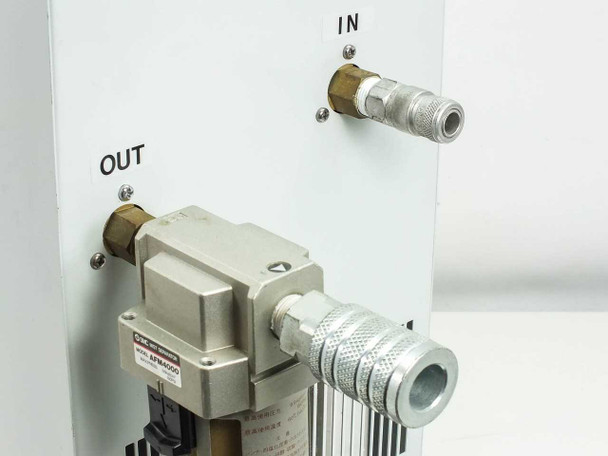

• Air inlet: rear panel IN port with quick-connect fitting
• Air outlet: rear panel OUT port with SMC AFM4000 mist separator

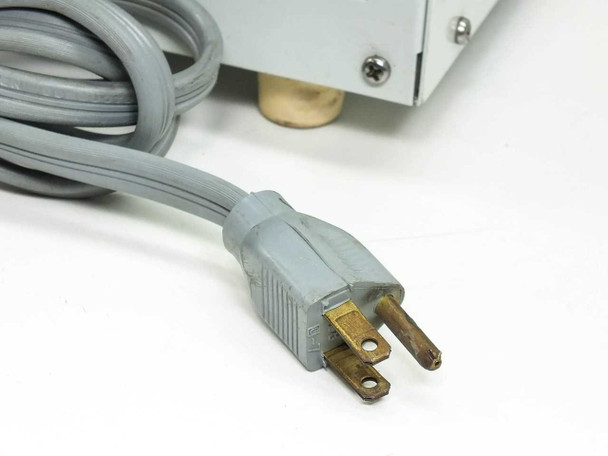

• Power cord: NEMA 5-15P (standard US 3-prong plug), included
• Included: SMC AFM4000 mist separator (mounted), drain hose (coiled teal tubing with zip ties)
• Form factor: freestanding upright cabinet

Applications

Refrigerated air dryers like the SMC IDF3C are standard equipment in industrial compressed air systems where moisture in the air line would cause problems downstream — corroding pneumatic tools, damaging sensitive sensors, fouling valves, or contaminating spray finishes. They are commonly used in semiconductor fabrication facilities, precision machining shops, electronics assembly, laboratory pneumatic systems, and general manufacturing where dry, clean instrument air is needed. The IDF3C is a smaller-capacity unit suited to low-flow applications such as individual machine drops, benchtop tools, or laboratory instrument supply lines. The included AFM4000 mist separator adds a downstream coalescing filter stage to catch any residual oil aerosol from the upstream compressor, making the IDF3C/AFM4000 combination a complete point-of-use air conditioning solution. SMC is a leading Japanese pneumatics manufacturer whose air preparation equipment is widely used in factory automation and semiconductor production environments throughout the world.
