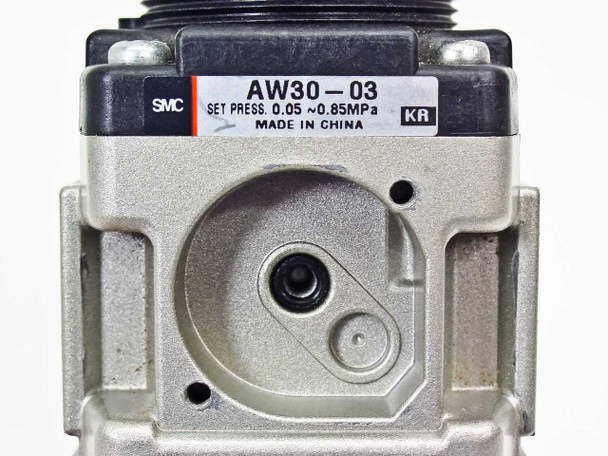

SMC AW30-03 Direct Operated Filter Regulator 0.05-0.85 MPa 3/8 Port KR
The SMC AW30-03KR is a direct operated combination filter-regulator designed for compressed air preparation in pneumatic systems. It filters particulate and moisture from the incoming air supply while simultaneously regulating downstream pressure to a set value between 0.05 and 0.85 MPa. The unit uses a centrifugal baffle and white cylindrical filter element to separate contaminants, and a manual drain valve with orange float indicator to discharge collected moisture from the polycarbonate bowl.
Specifications & What's Included
- Model: AW30-03 (suffix KR)
- Series: SMC AW30
- Type: Direct operated filter-regulator (combination FRL unit)
- Port size: 3/8
- Set pressure range: 0.05 – 0.85 MPa

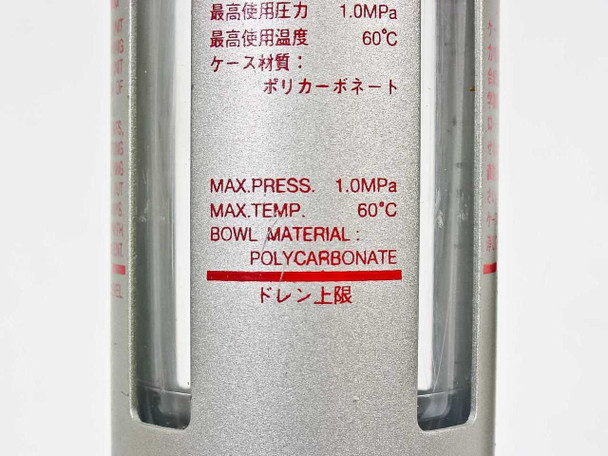

- Maximum working pressure: 1.0 MPa
- Maximum working temperature: 60°C
- Bowl material: Polycarbonate
- Drain type: Manual drain with orange float indicator
- Filter element: White cylindrical element (included)

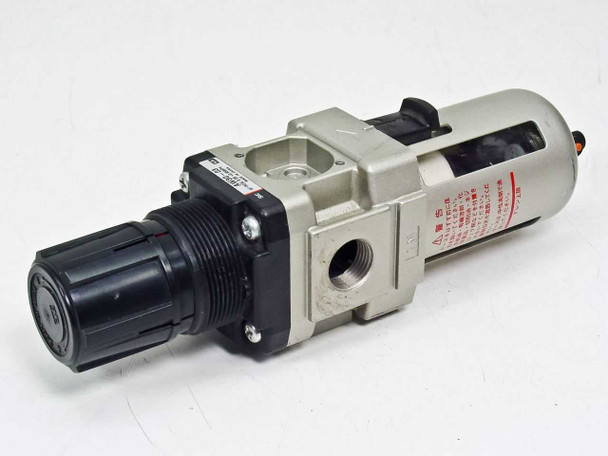

- Pressure adjustment: Black knurled knob with orange lock ring
- Country of manufacture: China
- Includes: Filter-regulator body, polycarbonate bowl, filter element, and manual drain valve
Applications
Filter-regulators like the SMC AW30 series are standard components in compressed-air FRL (Filter-Regulator-Lubricator) assemblies used throughout industrial automation, manufacturing, and pneumatic tooling installations. They are installed at the point of use — upstream of pneumatic cylinders, valves, actuators, and air tools — to ensure the air supply is clean and at the correct pressure for the downstream equipment. The AW30 size (3/8 port, medium flow) is commonly found on machine tool cells, assembly lines, packaging equipment, and general-purpose pneumatic circuits. SMC is one of the leading global manufacturers of pneumatic components, and the AW series remains widely used in facilities that rely on SMC pneumatics for standardized air preparation.

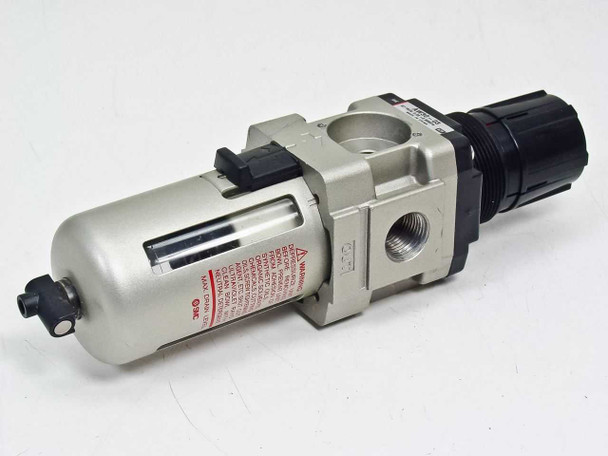

This SMC AW30-03KR Direct Operated Filter Regulator has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The bowl, filter element, and manual drain valve are all present and intact. The polycarbonate bowl shows minor surface marks visible in the photos; the body and regulator knob are in good shape with no significant damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SMC |
Model: |
AW30-03 |
MPN: |
AW30-03KR |
Type: |
Direct Operated Filter Regulator |
SKU: |
44601 |
Series: |
AW30 |
Port Size: |
3/8 |
Set Pressure Range: |
0.05 to 0.85 MPa |
Maximum Working Pressure: |
1.0 MPa |
Maximum Working Temperature: |
60°C |
Bowl Material: |
Polycarbonate |
Drain Type: |
Manual drain (orange float drain valve) |
Filter Element: |
White cylindrical element included |
Fluid: |
Compressed air |
Country/Region of Manufacture: |
China |
Form Factor: |
Inline / Body-ported |
Seller Notes: |
Filter regulator with bowl, filter element, and manual drain valve included. |
Condition Notes: |
This SMC AW30-03KR Filter Regulator has been inspected and is in good used condition. Pulled from a working environment. Bowl, filter element, and drain valve included. Minor surface marks on bowl. Please view photos and contact us with questions. |
