SMC

SMC AV3000-03G-5DZ Soft Start-Up Valve 3/8 NPT DC24V 0.2-1.0 MPa Pneumatic

(No reviews yet) Write a Review
SKU:
44604
MPN:
AV3000-03G-5DZ MU
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • SMC AV3000-03G-5DZ soft start-up valve – front view showing model label, DC24V and 0.2-1.0 MPa rating plate
  • SMC AV3000-03G-5DZ soft start-up valve – rear view showing body and port bosses
  • SMC AV3000-03G-5DZ soft start-up valve – side label close-up showing model number, working pressure, and voltage ratings

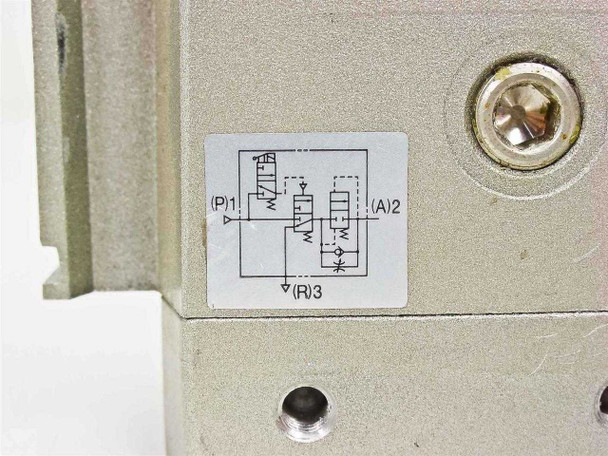

  • SMC AV3000-03G-5DZ – close-up of pneumatic schematic diagram sticker showing P1, A2, R3 port configuration
  • SMC AV3000-03G-5DZ – close-up of 3/8 NPT supply port (P1) on side of valve body

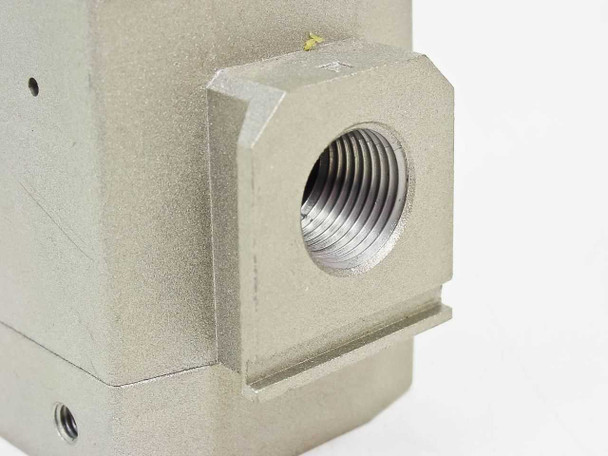

  • SMC AV3000-03G-5DZ – close-up of 3/8 NPT output port (A2) on opposite side of valve body

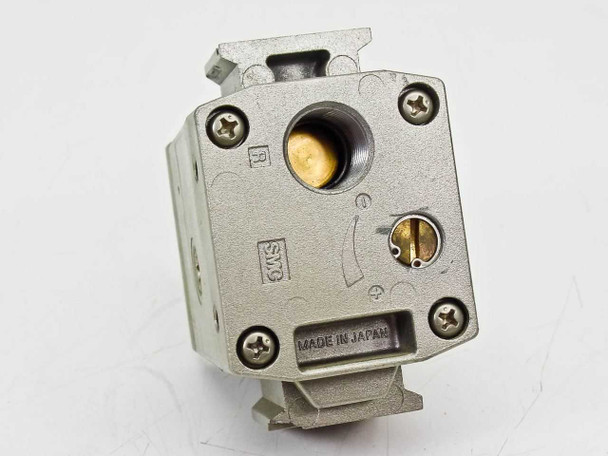

  • SMC AV3000-03G-5DZ – bottom view showing solenoid coil connection port and Made in Japan marking
$75.00
Was: $150.00
Current Stock: 2

Sold Out

Description

SMC AV3000-03G-5DZ Soft Start-Up Valve 3/8 NPT DC24V 0.2-1.0 MPa Pneumatic

This is a solenoid-operated soft start-up valve used to control pneumatic pressure during system initialization. It functions as a residual pressure release valve with a 3-port configuration for supply, output, and exhaust airflow.

Specifications & What's Included

  • Brand: SMC
  • Model: AV3000-03G-5DZ
  • Type: Soft Start-Up / Residual Pressure Release Valve
  • Port Size: 3/8 NPT
  • Voltage: DC 24V
  • Working Pressure: 0.2 – 1.0 MPa
  • Actuation: Solenoid (Electrically Operated)
  • Ports: 3-Port (P1 Supply, A2 Output, R3 Exhaust)
  • Includes: Attached pressure gauge
  • Manufactured in Japan

Applications

Soft start-up valves are commonly used in pneumatic systems to manage initial pressure buildup and prevent pressure spikes during startup. These valves are found in industrial automation equipment, packaging machinery, and compressed air control systems. They regulate pressure transitions in circuits where controlled pressure ramping is necessary to protect downstream components or ensure smooth system operation.

Condition: Used
This SMC AV3000-03G-5DZ soft start-up valve has been inspected and is in good condition. The body and port threads are clean and free of damage. The unit includes an attached pressure gauge. Normal light handling marks are present on the aluminum body, consistent with prior industrial use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
AV3000-03G-5DZ
MPN:
AV3000-03G-5DZ
SKU:
44604
Type:
Soft Start-Up Valve / Residual Pressure Release Valve
Series:
AV3000
Port Size:
3/8 NPT
Voltage:
DC 24V
Working Pressure:
0.2 – 1.0 MPa
Actuation Type:
Solenoid (Electrically Operated)
Port Configuration:
3-Port (P1 Supply, A2 Output, R3 Exhaust)
Includes:
Pressure Gauge
Country/Region of Manufacture:
Japan
Seller Notes:
Includes attached pressure gauge. Inspected and in good condition.
Condition Notes:
This SMC AV3000-03G-5DZ soft start-up valve has been inspected and is in good condition. Body and port threads are clean with no damage. Includes attached pressure gauge. Light handling marks on body consistent with prior use.
View AllClose
