SMA STP20000TL-US-10 Sunny Tripower 20kW Grid-Tie Solar Inverter 3-Phase

SMA STP20000TL-US-10 Sunny Tripower 20kW Grid-Tie Solar Inverter 3-Phase

The SMA STP20000TL-US-10 is a 20 kW three-phase string inverter from SMA's Sunny Tripower series, designed for commercial and light utility-scale photovoltaic systems connected to the grid. It accepts multiple DC input strings from a solar array and converts the power to three-phase AC output at utility frequency. This is a new, unused open-box unit still in its original SMA shipping carton.

Specifications & What's Included

• Model: STP20000TL-US-10 (STP 20000TL-US)
• AC Output Power: 20 kW (20,000 W)
• Phase: 3-Phase
• Configuration: US market (Customer US)
• Communication Module: Ethernet (1× integrated)
• Language: English
• Color: White Alu RAL9006
• Grid Guard: USS024
• Material Number: STP20000TL-US-10

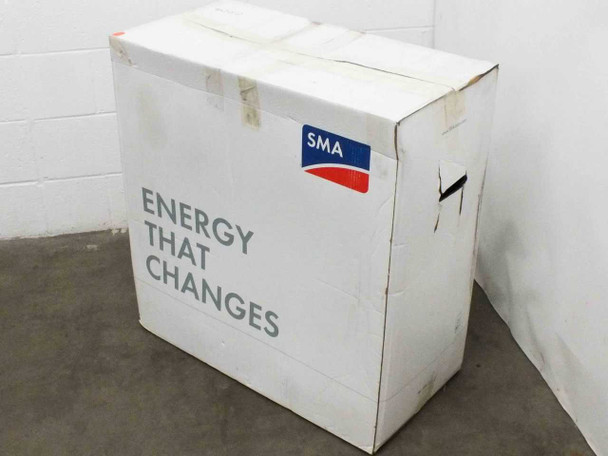

• Inverter in original SMA shipping carton
• Warranty registration card enclosed

Applications

The SMA Sunny Tripower STP20000TL-US series is a commercial-grade three-phase string inverter used in ground-mount, rooftop, and carport solar installations where three-phase grid connection is available. With a 20 kW output rating, it is well suited to commercial buildings, schools, warehouses, and small utility installations that pair multiple string inverters in a larger array. The Sunny Tripower line is known for its transformerless topology, which reduces weight and improves efficiency compared to transformer-based inverters of the same era. The STP20000TL-US-10 includes integrated Ethernet communication, allowing monitoring and data logging via SMA's Sunny Portal or compatible SCADA systems. This model was produced for the North American grid-tie market and targets installations requiring three-phase AC output to match commercial utility service.
