SMA SB 3800-US-10 Sunny Boy 3.8kW Solar Inverter 240VAC 250-480VDC For Parts
The SMA Sunny Boy SB 3800-US-10 is a 3.8kW single-phase grid-tie solar inverter designed for residential photovoltaic systems. It converts DC power from a solar panel array into 240VAC 60Hz output for grid connection. This unit is being sold AS-IS for parts or repair — a green plug connector has detached from the main control board, as clearly visible in the interior photos.
Specifications & What's Included
- Model: SMA Sunny Boy SB 3800-US-10
- Max Continuous Output Power: 3800 W AC
- AC Output Voltage: 240VAC
- Output Frequency: 60 Hz
- DC Input Voltage Range: 250–480 VDC
- Max Open Circuit Input Voltage: 600 VDC
- Max Operating Output Current: 16A
- Phase: Single Phase
- Manufacture Date: 06/2012

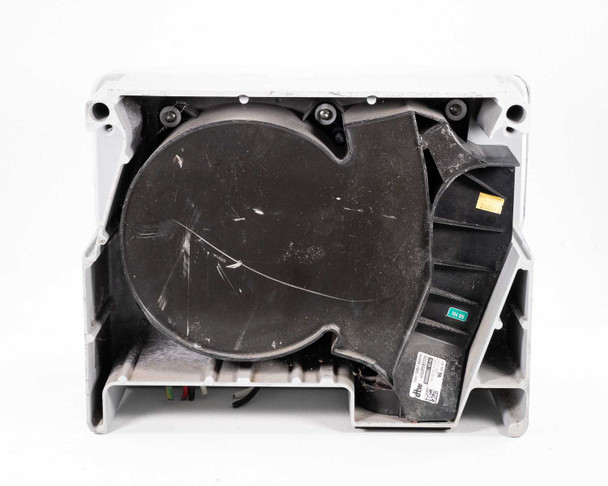

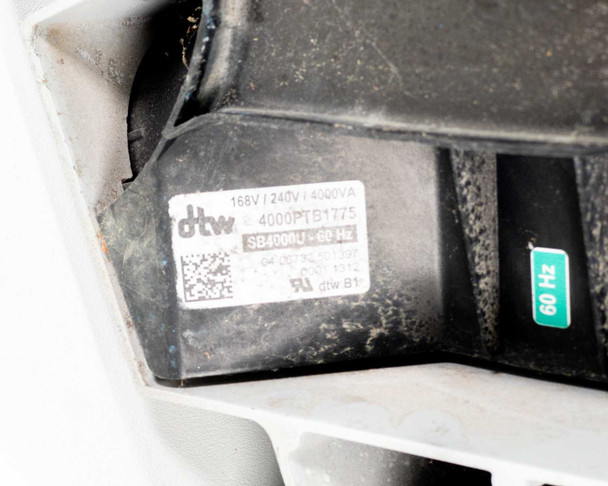

- Internal Transformer: DTW 4000PTB1775, rated 168V / 240V / 4000VA

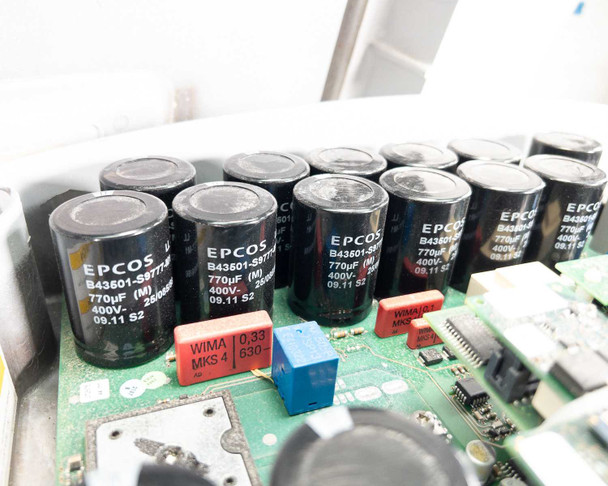

- Capacitors: EPCOS B43601-S977 770µF 400V electrolytic (bank of 12+), WIMA MKS4 film capacitors

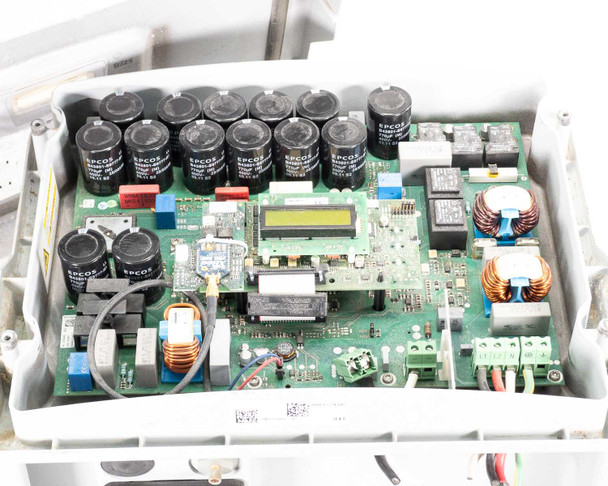

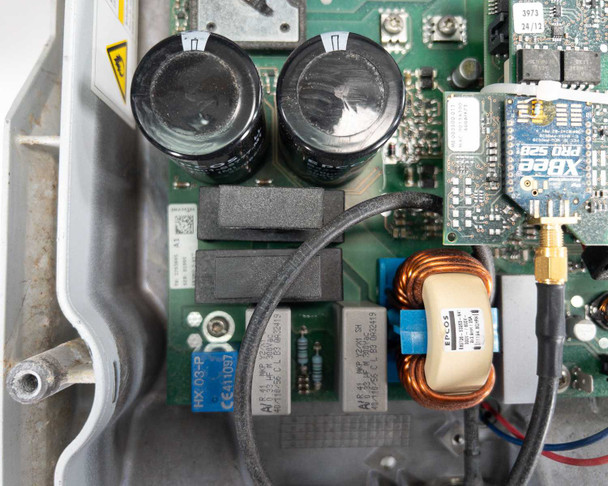

- Communication Module: XBee PRO 825 wireless module on main PCB
- Front Panel: LCD display, LED indicators

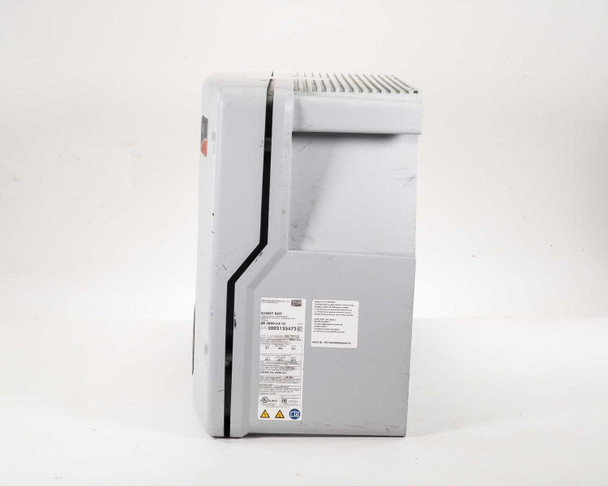

- Enclosure: Wall-mount outdoor-rated gray enclosure with hinged door
- Certifications: UL Listed, FCC

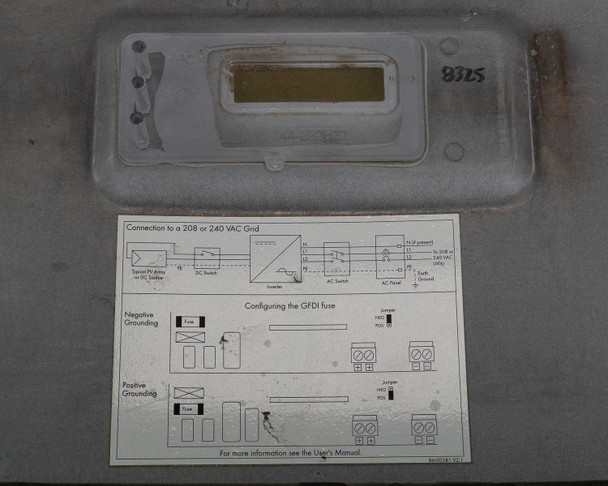

- Includes: Wiring/configuration diagram card (208/240VAC grid connection and GFDI fuse configuration)

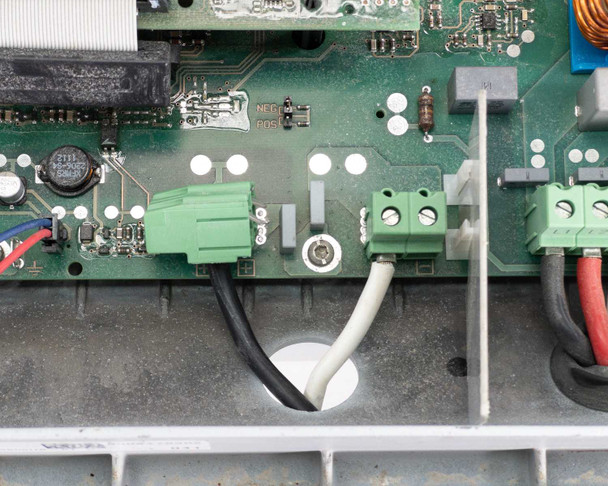

- Known Fault: One green plug connector detached from main control board (visible in photos)
- Sold AS-IS — untested, no functionality guarantee
Applications
The SMA Sunny Boy series is one of the most widely deployed lines of residential grid-tie solar inverters in North America. The SB 3800-US-10 was commonly installed in rooftop PV systems in the 3–4kW range, including SolarCity (now Tesla Energy) residential installations. These inverters accept DC input from a string of photovoltaic panels and synchronize AC output to the utility grid at 240VAC 60Hz. Units from this generation are sought after for board-level repair, component harvesting (capacitors, inductors, transformers, communication modules), and replacement of failed units in existing residential solar installations where the same model is already permitted and interconnected.

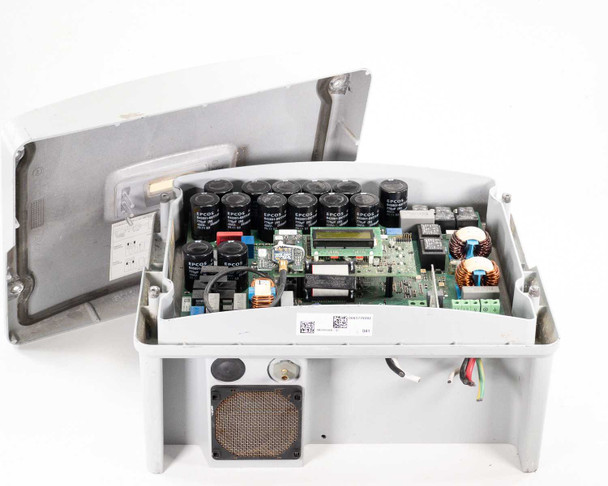

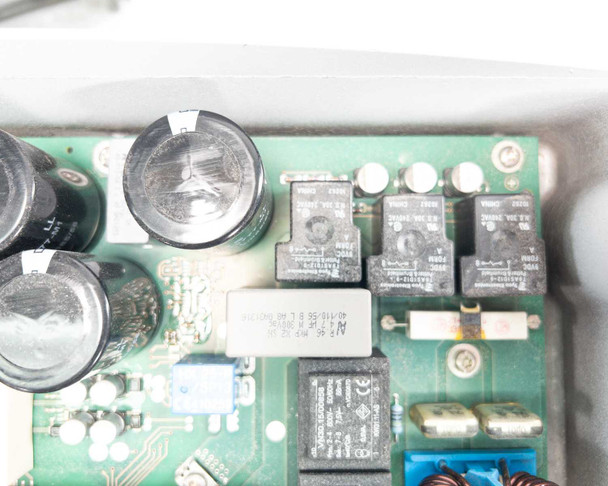

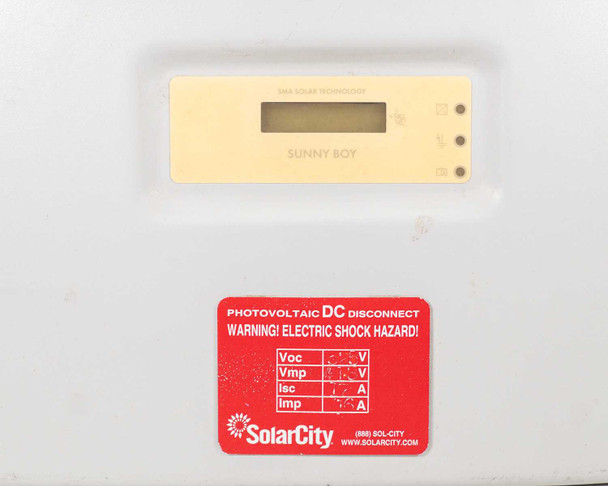

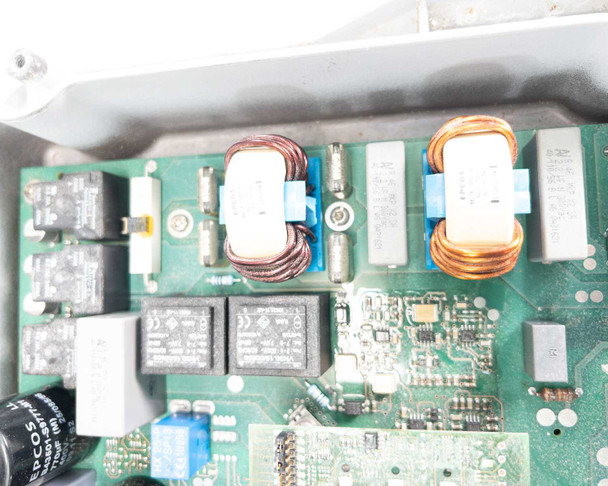

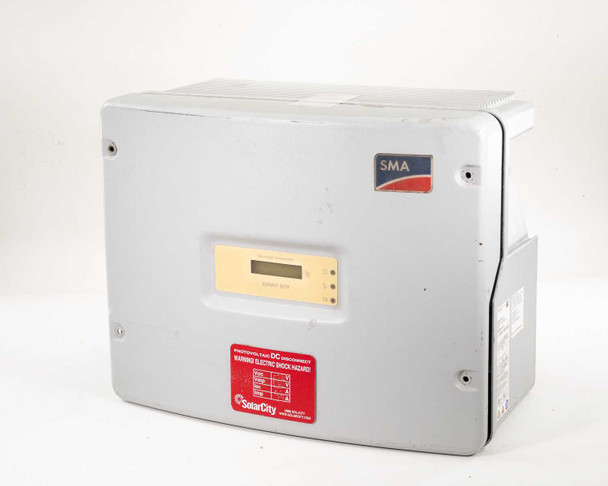

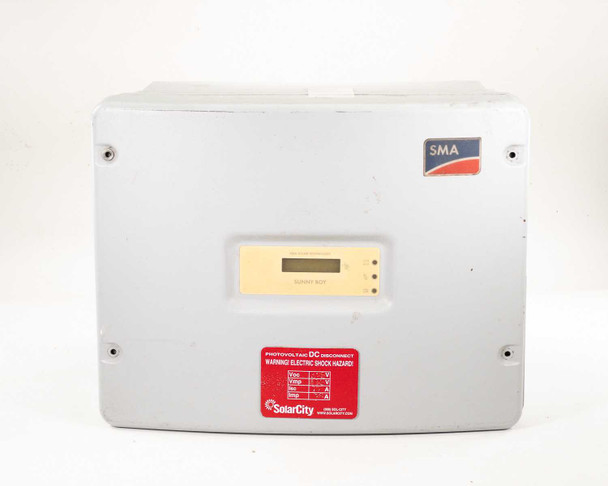

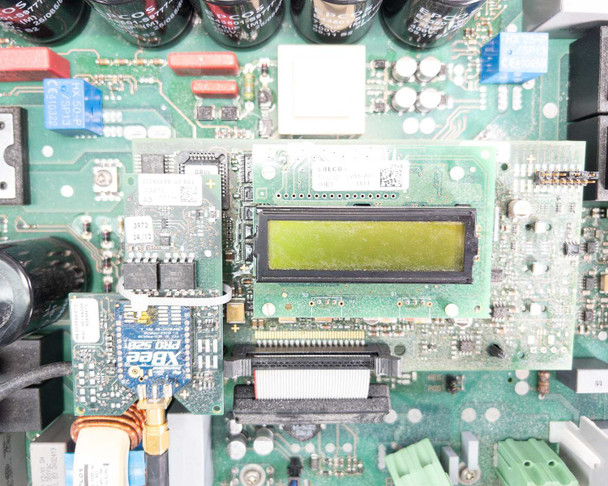

This SMA Sunny Boy SB 3800-US-10 3.8kW grid-tie solar inverter is being sold AS-IS for parts or repair. A green plug connector has detached from the main control board — this fault is clearly visible in the internal photos. The unit has not been tested and functionality cannot be guaranteed. The enclosure exterior shows typical used wear with light scuffing and surface soiling. Internally, the PCB, capacitor bank, inductors, relays, and XBee wireless communication module are all visually intact aside from the detached connector. A SolarCity photovoltaic DC disconnect warning label is affixed to the front panel. A wiring/configuration diagram card is present inside the enclosure. This unit is suitable for parts salvage or repair by a qualified technician. Please view our photo set and contact us if you have any questions.
