Slaughter

Slaughter 727/103MP-3 Rackmount Insulation Tester Megohmmeter 115VAC

(No reviews yet) Write a Review
SKU:
36373
MPN:
727 / 103MP-3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
47.00 LBS
Shipping:
Calculated at Checkout
  • Slaughter 727/103MP-3 Rackmount Insulation Tester – front panel view showing LCD display, numeric keypad, Reset knob, Remote/Local switch, and panel label

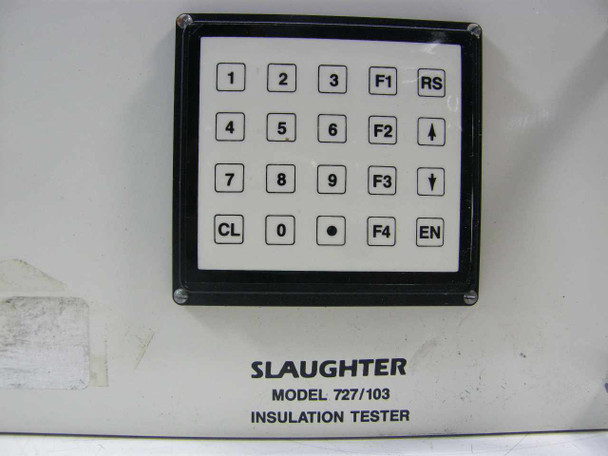

  • Slaughter Model 727/103 Insulation Tester – close-up of numeric keypad with function keys F1–F4, RS, EN, CL, and model label on lower panel

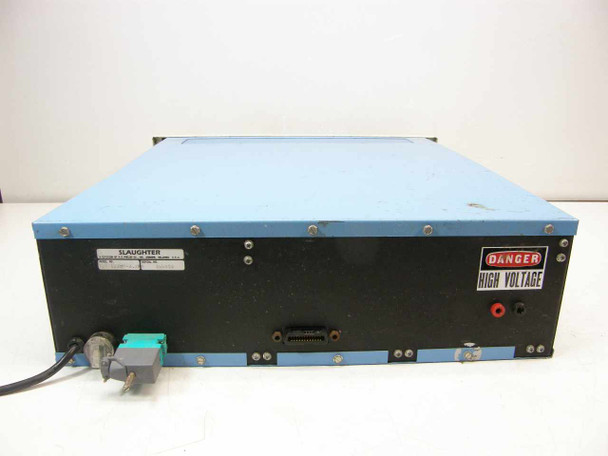

  • Slaughter 727/103MP-3 Insulation Tester – rear panel view showing high-voltage output terminals, DANGER HIGH VOLTAGE label, power cable, and rating plate

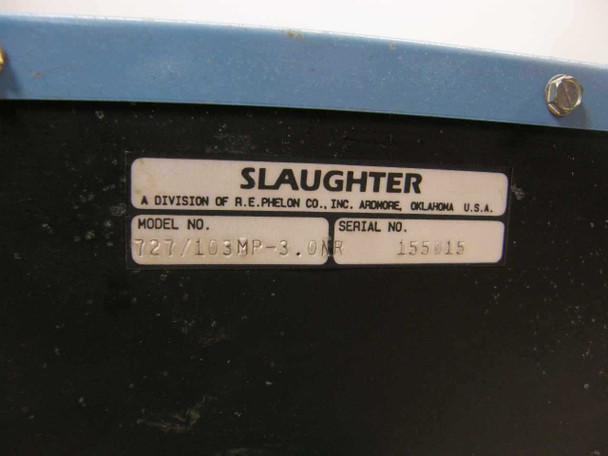

  • Slaughter Insulation Tester – rear rating plate showing Model No. 727/103MP-3.0NR, Serial No. 155-15, and manufacturer R.E. Phelon Co. Inc., Ardmore Oklahoma USA

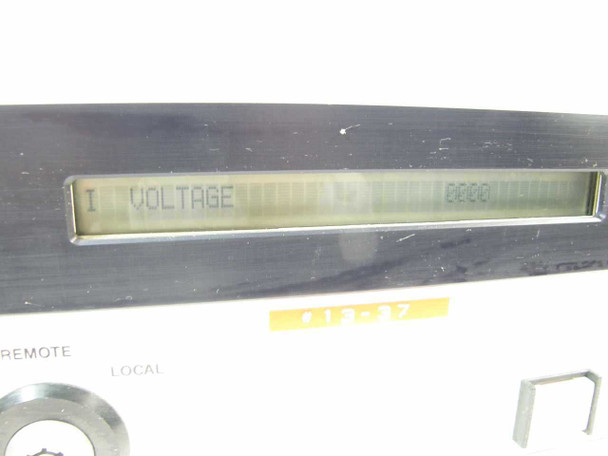

  • Slaughter 727/103MP-3 Insulation Tester – LCD display close-up showing VOLTAGE readout on alphanumeric screen
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

Slaughter 727/103MP-3 Rackmount Insulation Tester Megohmmeter 115VAC

Rackmount insulation resistance tester and megohmmeter designed to measure electrical insulation integrity in industrial and telecommunications equipment. Operates on 115VAC power with remote and local control modes.

Specifications & What's Included

  • Model: 727/103MP-3 (MPN: 727/103MP-3.0NR)
  • Form Factor: 19-inch rackmount
  • Power: 115VAC
  • Display: LCD alphanumeric
  • Controls: Numeric keypad with function keys (F1–F4), Remote/Local mode selection
  • Unit only; no test leads or accessories included

Applications

Insulation testers measure resistance between electrical conductors and ground, commonly used in telecommunications networks, power distribution systems, and industrial control installations. This rackmount configuration allows integration into testing racks and automated test systems. The dual control modes support both manual and remote-controlled testing protocols typical of carrier and utility maintenance environments.

Condition: Used
This Slaughter 727/103MP-3 Rackmount Insulation Tester has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The front panel, LCD display, and keypad show typical wear consistent with normal lab or production use. The blue chassis shows minor scuffs and surface marks. The rear panel carries a DANGER HIGH VOLTAGE label and includes the high-voltage output terminals and AC power cable. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Slaughter
Model:
727/103MP-3
MPN:
727/103MP-3.0NR
Secondary Model:
103MP-3
Type:
Rackmount Insulation Resistance Tester / Megohmmeter
SKU:
36373
Form Factor:
Rack Mount
Power Requirements:
115VAC
Display Type:
LCD Alphanumeric Display
Input Interface:
Numeric keypad with function keys (F1–F4, RS, EN, CL)
Control Modes:
Remote / Local
Output Warning:
High Voltage — DANGER label on rear panel
Manufacturer Parent Company:
R.E. Phelon Co., Inc., Ardmore, Oklahoma U.S.A.
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no test leads or accessories visible in photos.
Condition Notes:
Slaughter 727/103MP-3 Rackmount Insulation Tester in good used condition. Pulled from a working environment where it was in use and functional. Inspected; shows normal wear. No test leads included.
