Sino-American A42410CG AC Adapter 24VAC 800mA Class 2 Transformer 120V 60Hz

Sino-American A42410CG AC Adapter 24VAC 800mA Class 2 Transformer 120V 60Hz

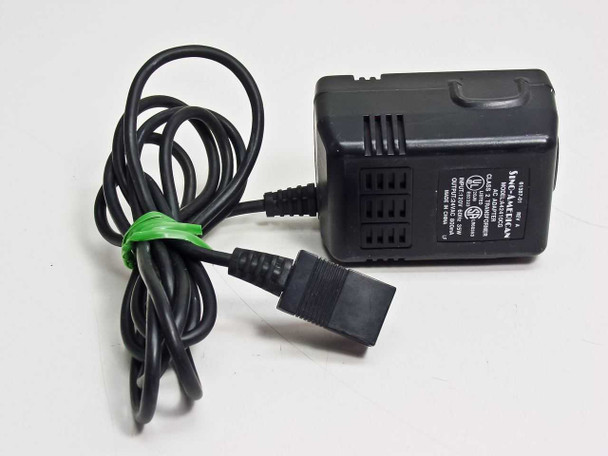

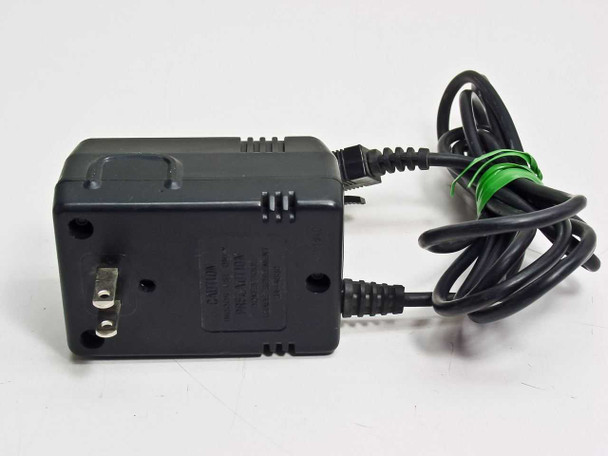

The Sino-American A42410CG is a Class 2 wall-mount AC adapter that converts standard 120V AC mains power to a 24VAC 800mA output. It uses a proprietary multi-pin output connector and carries UL and CSA safety certifications. The unit is compact and wall-plug style with an attached output cable.

Specifications & What's Included

• Model: A42410CG (Part/Ref: 61387-01, Rev A)
• Input: 120V AC, 60Hz, 35W
• Output: 24VAC, 800mA
• Transformer Class: Class 2
• Connector: Proprietary multi-pin plug with green 8-pin contact insert
• Certifications: UL Listed (File E82323, 20J8), CSA (LR60353)
• Country of Manufacture: China
• Includes: AC adapter with attached output cable and multi-pin connector

Applications

Class 2 AC adapters like the A42410CG are commonly used to power low-voltage equipment such as access control panels, security system components, intercom systems, HVAC thermostats and zone controllers, door hardware, and similar devices requiring a 24VAC supply. The 24VAC standard is widely used in building automation and security applications because it is a safe, low-voltage level that meets Class 2 circuit requirements under the National Electrical Code. The proprietary multi-pin connector suggests this adapter was designed for a specific OEM device or product line. Replacement and compatible adapters with this output spec are frequently sought by technicians maintaining legacy access control and building automation equipment.
