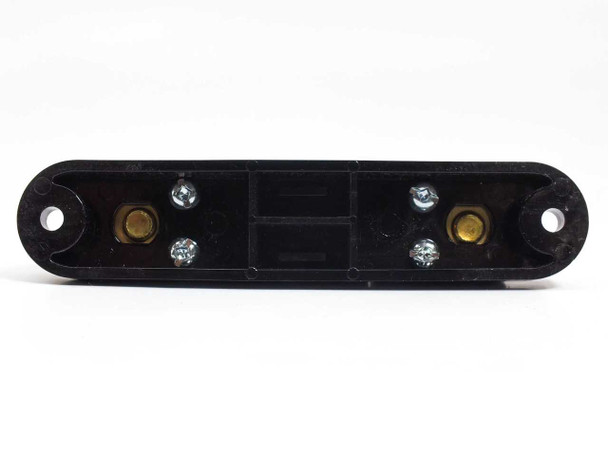

Simpson Electric 06704 Portable Current Shunt 10A 50mV Ammeter Meter Shunt
A current shunt designed to extend the measurement range of DC ammeters and panel meters. This brass shunt carries up to 10A of current while producing a 50mV output signal for compatible meter movements.
Specifications & What's Included
- Current Rating: 10A maximum
- Voltage Output: 50mV full scale
- Material: Brass construction

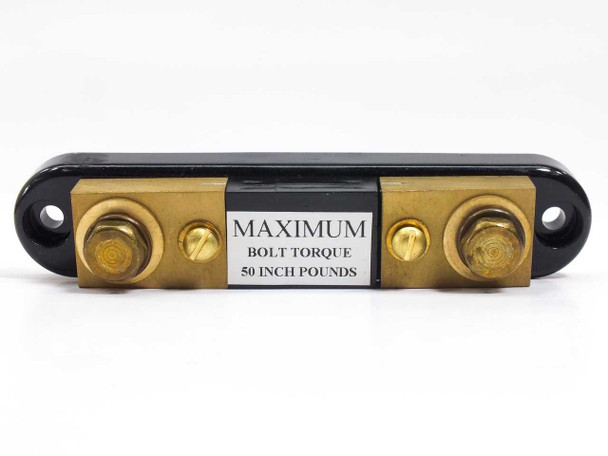

- Max Bolt Torque: 50 inch pounds

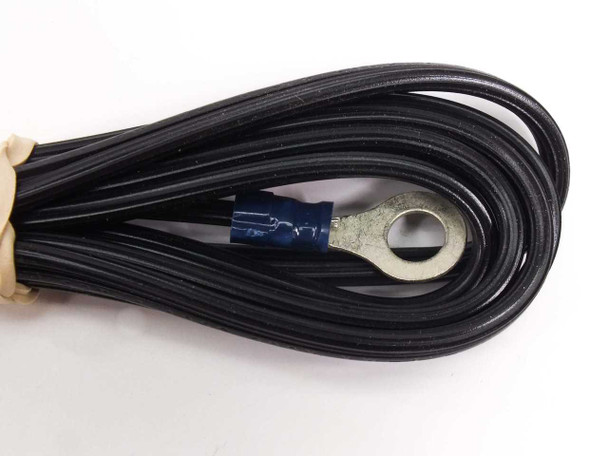

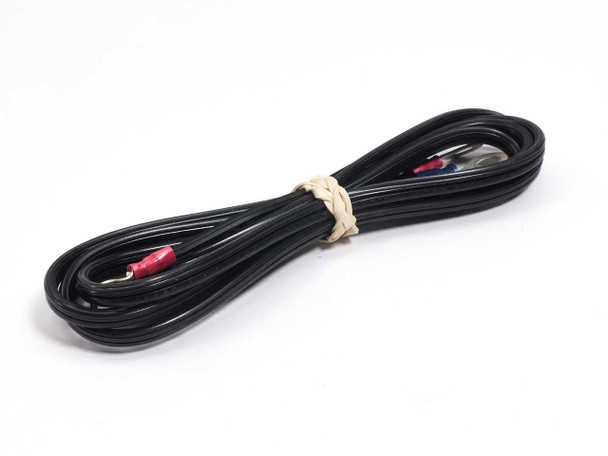

- Includes: Shunt body and lead wire with ring and spade terminals
- Made in United States
Applications
Current shunts function as precision resistors that allow low-range ammeters to measure higher currents by converting current flow into a proportional voltage drop. This model suits DC ammeter and panel meter installations requiring 50mV input sensitivity. Commonly used in industrial test equipment, telecom installations, and portable measurement setups where direct ammeter connection would exceed meter specifications.
Condition: Open Box
This Simpson Electric 06704 Portable Current Shunt is new and unused. It comes in an open white retail box and shows no signs of use or wear. The shunt body and included lead wire are in new condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Simpson Electric 06704 Portable Current Shunt is new and unused. It comes in an open white retail box and shows no signs of use or wear. The shunt body and included lead wire are in new condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Simpson Electric |
Model: |
06704 |
MPN: |
06704 |
Type: |
Portable Current Shunt |
SKU: |
48896 |
Current Rating: |
10A Maximum |
Voltage Output: |
50mV Full Scale |
Max Bolt Torque: |
50 Inch Pounds |
Shunt Material: |
Brass |
Mounting Style: |
Panel Mount / Portable |
Includes: |
Shunt body, lead wire with ring and spade terminals |
Condition: |
New – Open Box |
Country/Region of Manufacture: |
United States |
Compatible With: |
DC ammeter, panel meter, 50mV input meter movements |
Seller Notes: |
New open-box; includes shunt and lead wire with ring and spade terminals. |
Condition Notes: |
Simpson Electric 06704 Portable Current Shunt is new and unused, in open-box condition. Shunt body and lead wire show no signs of use. Please view photos and contact us with any questions. |
