SIIG

SIIG TK-P5U212 USB 2.0 PCI 5-Port Adapter Card 480Mbps NEC Chipset 4+1

(No reviews yet) Write a Review
SKU:
33955
MPN:
TK-P5U212
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

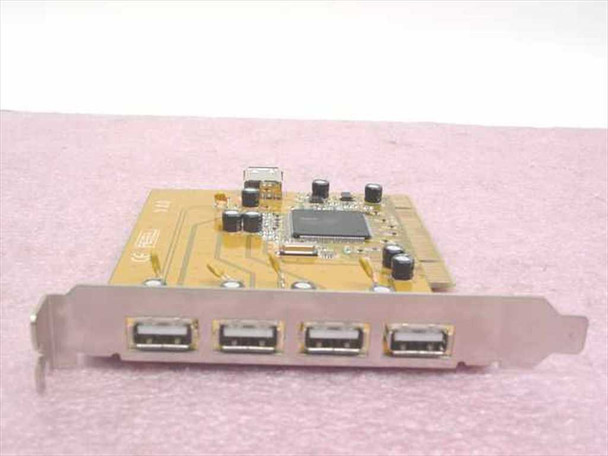

  • SIIG TK-P5U212 USB 2.0 PCI card – front angled view showing four external USB ports on bracket and NEC controller chip on PCB
  • SIIG TK-P5U212 USB 2.0 PCI card – top-down front view showing four external USB ports on left bracket, one internal USB header at top right, NEC chipset, and V 2.0 board marking
  • SIIG TK-P5U212 USB 2.0 PCI card – PCB reverse side showing gold-finger PCI edge connector, trace routing, and serial number label reading TK-P5U212
  • SIIG TK-P5U212 USB 2.0 PCI card – second view of PCB reverse side showing edge connector and TK-P5U212 serial number label
$8.00
Was: $15.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

SIIG TK-P5U212 USB 2.0 PCI 5-Port Adapter Card 480Mbps NEC Chipset 4+1

The SIIG TK-P5U212 is a PCI expansion card that adds five USB 2.0 ports to any desktop computer with an open PCI slot. It provides four external Type-A ports via the rear bracket and one internal header, all running at up to 480 Mbps. The card uses an NEC USB 2.0 controller chipset and installs into a standard full-height PCI slot; a low-profile bracket is included for smaller form-factor cases.

Specifications & What's Included

  • Model: TK-P5U212 (Board Version 2.0)
  • Interface: PCI
  • USB Version: USB 2.0 (Hi-Speed)
  • Total USB Ports: 5 (4 external Type-A + 1 internal header)
  • Chipset: NEC USB 2.0 controller
  • Data Transfer Rate: 480 Mbps (Hi-Speed), 12 Mbps (Full-Speed), 1.5 Mbps (Low-Speed)
  • Bracket: Standard full-height; low-profile bracket also included
  • Country of Manufacture: Taiwan
  • Included: Card only — no cables or driver disc included

Applications

USB 2.0 PCI expansion cards like the TK-P5U212 were a common upgrade for desktop PCs in the early-to-mid 2000s, when many motherboards shipped with only two onboard USB ports or still carried USB 1.1 controllers. Adding a dedicated NEC-chipset card instantly brought Hi-Speed USB 2.0 to those systems for connecting external hard drives, scanners, printers, and other high-bandwidth peripherals. Today these cards remain useful for maintaining or upgrading older workstations, legacy industrial PCs, and any system with an open PCI slot that needs additional USB ports — particularly where the onboard USB has failed or been disabled.

Condition: Used
This SIIG TK-P5U212 USB 2.0 PCI 5-Port Adapter Card is in good used condition, pulled from a working environment where it was actively in use. The PCB is clean and the gold-finger PCI edge connector shows no damage or corrosion. The USB port bracket has light shelf wear typical of normal use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SIIG
Model:
TK-P5U212
MPN:
TK-P5U212
Type:
USB 2.0 PCI Adapter Card
SKU:
33955
Chipset:
NEC
USB Version:
USB 2.0
Number of Ports:
5 (4 External, 1 Internal)
Data Transfer Rate:
480 Mbps (Hi-Speed), 12 Mbps, 1.5 Mbps
Interface:
PCI
Form Factor:
PCI Card (Low-Profile Bracket)
Board Version:
V 2.0
Seller Notes:
Card only; no cables or drivers included.
Country/Region of Manufacture:
Taiwan
Compatible With:
Desktop PCs with available PCI slot
Condition Notes:
This SIIG TK-P5U212 USB 2.0 PCI 5-Port Adapter Card is in good used condition. Pulled from a working environment. PCB and edge connector are clean; bracket shows light shelf wear.
