Signal Transformer

Signal Transformer PC-16-260 PCB Mount Power Transformer Electro Space ACU

(No reviews yet) Write a Review
SKU:
50432
MPN:
PC-16-260
Condition:
New
Availability:
Currently out of stock — contact us for availability.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

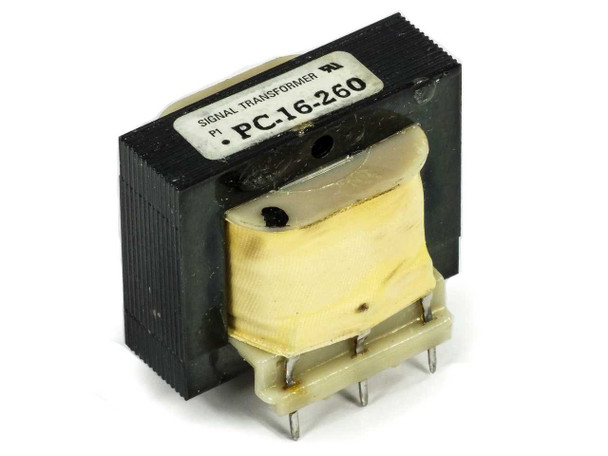

  • Signal Transformer PC-16-260 PCB mount power transformer – angled front view showing label, laminated core, yellow coil winding, and PCB pin leads
  • Signal Transformer PC-16-260 – rear angled view showing laminated core ribs, coil windings, and through-hole PCB pin leads
  • Signal Transformer PC-16-260 – close-up front face view showing UL-listed label with model number clearly printed
$5.10
Was: $10.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Signal Transformer PC-16-260 PCB Mount Power Transformer Electro Space ACU

The Signal Transformer PC-16-260 is a PCB-mount power transformer featuring a laminated E-I core construction and vertical through-hole pin leads for direct circuit board installation. It is designed for use in the Electro Space ACU and similar low-frequency power conversion applications. The unit is UL Listed and carries Signal Transformer's P1 designation on its label.

Specifications & What's Included

  • Manufacturer: Signal Transformer
  • Model: PC-16-260
  • Type: PCB Mount Power Transformer
  • Core Construction: Laminated E-I core
  • Mounting: Vertical through-hole PCB pin leads
  • Certification: UL Listed
  • Compatible With: Electro Space ACU
  • Condition: New — unused
  • Includes: Transformer only

Applications

PCB-mount power transformers in the Signal Transformer PC series are used in electronic control systems, communications equipment, and specialty instrumentation where a compact, board-mounted step-down or isolation transformer is required. The PC-16-260 is specifically referenced for use in Electro Space ACU (Antenna Control Unit) systems, which are used in satellite tracking and ground station antenna positioning equipment. These laminated E-I core transformers are a standard building block in low-power AC conversion circuits operating at line frequency (50/60 Hz), providing galvanic isolation or voltage step-up/step-down within a self-contained, solderable package.

Condition: New
This Signal Transformer PC-16-260 PCB mount power transformer is in new condition. It appears unused and shows no signs of wear, handling, or installation. The label is clean and intact, the laminated core shows no damage, and all PCB pin leads are straight and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Signal Transformer
Model:
PC-16-260
MPN:
PC-16-260
Type:
PCB Mount Power Transformer
SKU:
50432
Seller Notes:
Transformer only — no additional hardware or accessories included.
Country/Region of Manufacture:
United States
Compatible With:
Electro Space ACU
Mounting Style:
PCB Mount / Through-Hole Pin
Core Type:
Laminated E-I Core
Certifications:
UL Listed
Condition Notes:
This Signal Transformer PC-16-260 PCB mount power transformer is in new condition — unused, with clean label, undamaged laminated core, and straight PCB pins. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
