Sigma Electronics SS-2100-16 Series 2100 16-Slot Powered Card Frame BNC Backplane
The Sigma Electronics SS-2100-16 is a 16-slot powered card frame from the Series 2100 modular instrumentation system. The chassis provides a powered, bussed enclosure for modular signal-routing and switching cards, with a BNC-populated backplane and an integrated control buss for centralized communication between installed cards. A Control Buss card (part number 2126) is present in the frame, providing DB9 connectivity for external control.
Specifications & What's Included
- Manufacturer: Sigma Electronics Inc.
- Model: SS-2100-16
- Series: Sigma Series 2100
- Number of card slots: 16

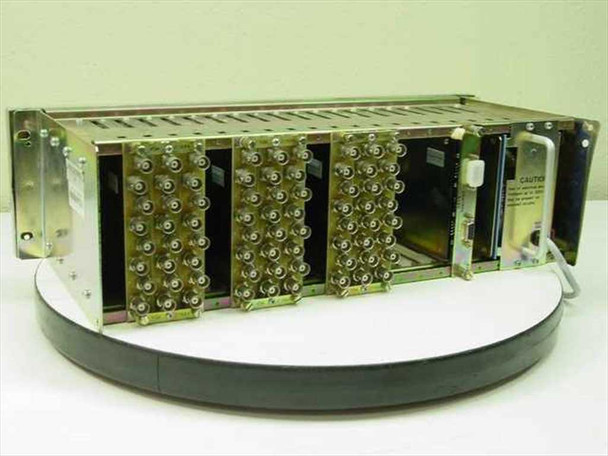

- Backplane connector type: BNC (multi-position BNC connectors per slot)
- Control interface: Control Buss card with DB9 connector (card PN 2126 installed)
- Form factor: Rackmount chassis

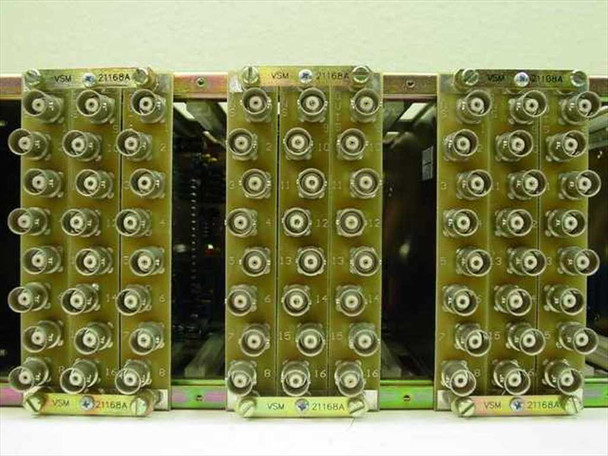

- Compatible modular card observed in photos: VSM 21168A (BNC signal card)

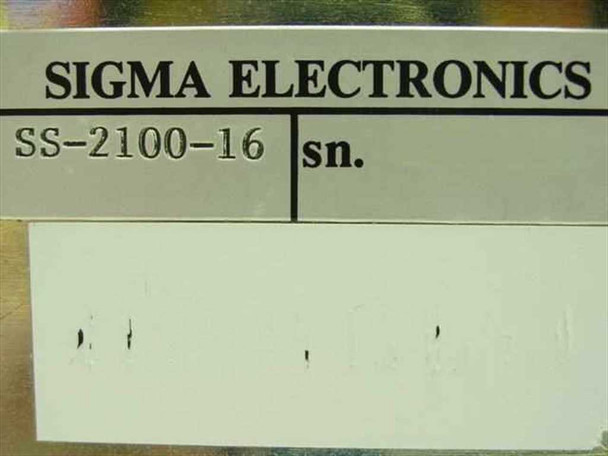

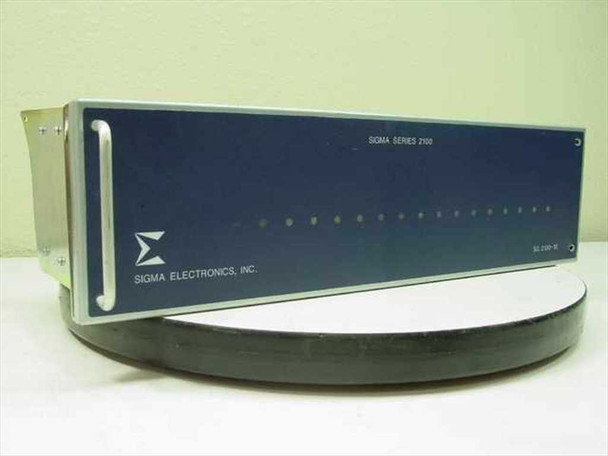

- Front panel: Blue anodized faceplate with row of indicator LEDs and model designation label
- Includes: Card frame chassis with installed Control Buss card (2126); VSM 21168A cards shown in photos not guaranteed included
