Description
Shiva LanRover/8T Token Ring Access Router 871VSLRTNW4US8 8-Port 16/4 Mbps

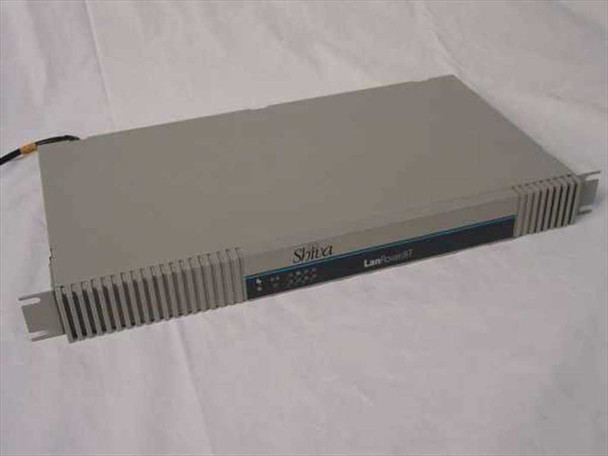

The Shiva LanRover/8T is a 1U rackmount remote access router designed for Token Ring networks. It provides eight serial access ports for dial-in connectivity, allowing remote users to reach a Token Ring LAN through a single centrally managed device. The unit accepts universal AC input (100–240V) and carries ETL and CSA safety certifications.
Specifications & What's Included
- Manufacturer: Shiva
- Model: LanRover/8T
- Part Number: 871VSLRTNW4US8
- Board Revision: 930-0361-00 Rev. C
- Network Technology: Token Ring
- Token Ring Speed: 16/4 Mbps (switchable)
- Number of Access Ports: 8
- Access Port Connectors: DB-25 serial (8 ports, rear panel, numbered 1–8)

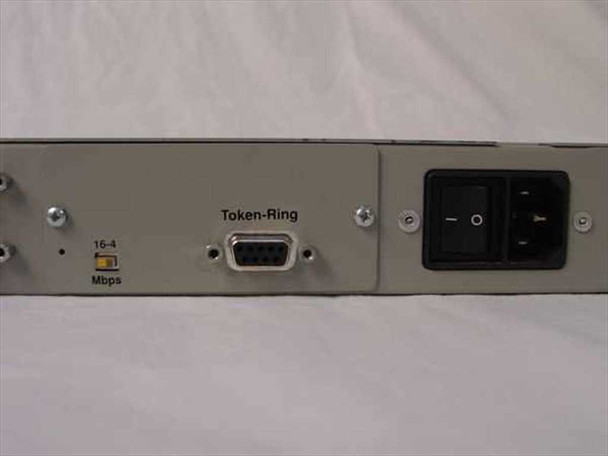

- Token Ring Interface Connector: DB-9 (rear panel)
- Form Factor: 1U Rackmount
- Power Input: 100–240V AC, 1.3A, 50/60 Hz (universal)
- Power Connector: IEC C14 inlet with rocker on/off switch
- Compliance: ETL Listed (Information Technology Equipment), CSA, FCC Part 15 Class A, Canadian ICES
- Country of Manufacture: United States (Assembled in USA — Bedford, MA)
- Unit only — no cables or accessories included
Applications
The Shiva LanRover series was a line of remote access concentrators produced in the mid-to-late 1990s, designed to give dial-up users access to corporate Token Ring LANs. The LanRover/8T specifically targeted IBM-centric enterprise environments where Token Ring (IEEE 802.5) was the dominant LAN standard — common in large corporations, banks, and government installations running IBM AS/400, mainframe, or OS/2-based networks. Each of the eight serial ports could support an analog modem, ISDN adapter, or other serial WAN connection, allowing multiple remote users to connect simultaneously to the Token Ring segment. The device functions as a network access server (NAS), handling authentication and routing for inbound dial sessions. By the early 2000s, Token Ring infrastructure was largely displaced by Fast Ethernet and Gigabit Ethernet, making the LanRover/8T a legacy platform today — it is sought after primarily by organizations maintaining older IBM Token Ring environments, collectors of 1990s-era networking gear, and labs needing to test or support legacy Token Ring installations.

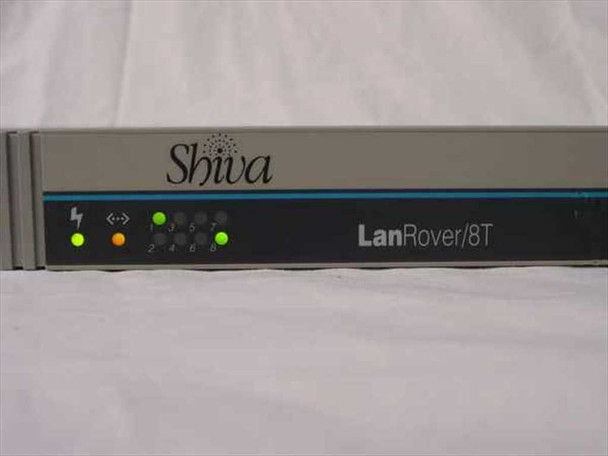

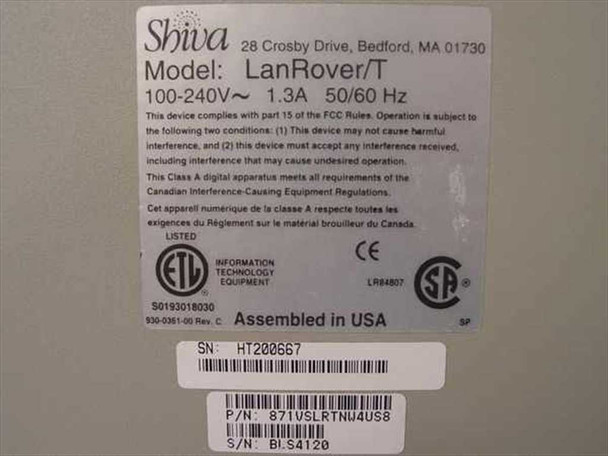

This Shiva LanRover/8T Token Ring Access Router (P/N 871VSLRTNW4US8) is in good used condition. The chassis is clean overall with minor cosmetic wear consistent with normal rack use. The front panel LEDs are intact and the Shiva/LanRover/8T labeling is clear and legible. All eight rear DB-25 serial access ports appear undamaged, the Token Ring DB-9 connector is present, and the IEC AC power inlet and rocker switch are in good shape. The bottom label is fully intact and readable, showing model, part number, power ratings, and compliance marks. This unit was pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Shiva |
Model: |
LanRover/8T |
MPN: |
871VSLRTNW4US8 |
Secondary Model: |
930-0361-00 Rev. C |
Type: |
Token Ring Remote Access Router |
SKU: |
14687 |
Number of Ports: |
8 |
Network Technology: |
Token Ring |
Data Rate: |
16/4 Mbps |
Interface Type: |
Token Ring (DB-9), DB-25 Serial Ports x8 |
Connector Type: |
DB-25 (x8 access), DB-9 Token Ring, IEC AC inlet |
Form Factor: |
1U Rackmount |
Power Requirements: |
100-240V AC, 1.3A, 50/60Hz |
Management Type: |
Managed |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; no accessories included. P/N 871VSLRTNW4US8, Rev. C. |
Condition Notes: |
Shiva LanRover/8T Token Ring Access Router, P/N 871VSLRTNW4US8. Good used condition, pulled from a working environment. Chassis clean with minor wear. All 8 DB-25 ports and Token Ring connector intact. |
