Description
Shinko A14 15HP HEPA Filter Air Cleaner Blower 423 CFM 3.2 PSI 11kW 200V 3-Ph
The Shinko A14 is an industrial-grade centrifugal blower and HEPA filter air cleaner system rated at 423 CFM airflow at 3.2 PSI. The system integrates a large centrifugal scroll blower driven by a Mitsubishi Super Line 11kW (15HP) three-phase motor via belt drive, connected through flanged ductwork and flexible orange duct sections to a two-stage filtration assembly mounted on a welded steel open frame. The two-stage filter housing consists of a lower pre-filter stage (cylindrical perforated element) and an upper HEPA filter box, capturing particulate through progressive filtration before discharge. The complete system is pallet-mounted and ready for freight shipment.
Specifications & What's Included
- Brand: Shinko (株式会社 仲興)
- Model: A14
- Airflow: 423 CFM
- Static Pressure: 3.2 PSI
- Motor Power: 11 kW (15 HP)
- Motor Voltage: 200V
- Phase: Three Phase
- Motor Brand/Model: Mitsubishi Electric Super Line
- Motor Country of Origin: Japan
- Drive Type: Belt drive (belt table placard visible on nameplate)
- Blower Type: Centrifugal scroll
- Filter Configuration: Two-stage — cylindrical pre-filter element (lower stage) + HEPA filter (upper stage)
- Duct Connections: Flanged round ports; flexible orange corrugated duct sections
- Frame: Welded steel open frame
- Mounting: Pallet-mounted; freight shipping required
- Wiring Harness: Multi-conductor (red, yellow, blue, green conductors) with corrugated conduit
Applications
Centrifugal blower and HEPA filtration systems of this type are used in industrial and manufacturing environments requiring high-volume air movement with particulate filtration — including clean room support, semiconductor fabrication facilities, pharmaceutical manufacturing, industrial paint booths, and general factory air quality control. The two-stage design (pre-filter followed by HEPA) extends the service life of the HEPA media by capturing coarser particulate in the pre-filter stage. Units of this scale (15HP, 423 CFM) are typically deployed where large air volumes must be filtered continuously, and the belt-drive configuration allows motor and impeller speed to be tuned via pulley sizing for a specific application.

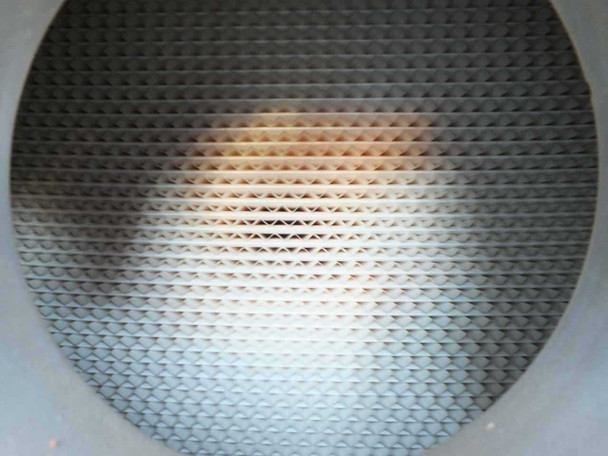

This Shinko A14 15HP HEPA Filter Air Cleaner Blower is a used industrial unit in good overall condition. The steel support frame shows surface wear and minor paint scuffing consistent with industrial service, and the orange flexible duct sections show some wear. The HEPA filter media (visible in photos) shows discoloration at the center consistent with use, and the cylindrical pre-filter element inside the lower filter housing also shows service wear — both filter elements may benefit from inspection or replacement depending on the buyer's application. The Mitsubishi Super Line 11kW motor appears intact with wiring harness in place. The unit is mounted on a wooden pallet and will require freight shipping. Please view our photo set and contact us if you have any questions.
