Sharp RD-771AV Slide Projector Sync Cassette Tape Recorder Player 5W Amp 1kHz

Sharp RD-771AV Slide Projector Sync Cassette Tape Recorder Player 5W Amp 1kHz

The Sharp RD-771AV is a portable cassette recorder built specifically for synchronized slide-tape presentations. It combines standard cassette recording and playback with a built-in slide projector sync system, allowing a single tape to carry both audio content and projector advance cues on a dedicated second track. The unit can run on batteries or AC power, making it usable in classroom and conference room settings alike.

Specifications & What's Included

• Brand: Sharp
• Model: RD-771AV
• Amplifier Output: 5 Watts
• Sync System: Built-in slide projector sync — records industry-standard 1kHz (Proj-1) and 150Hz (Proj-2/Stop) tones on a dedicated separate tape track
• Sync Modes: Impose (tones mixed with audio track) and Separate (tones on dedicated track)
• Sync Controls: Restart, Proj-2/Stop (150Hz), Proj-1 (1kHz), Sync Rec buttons
• Sync Jacks: Sync Line In, Sync Line Out
• Projector Connections: Two spade-type Projector jacks (Proj-1 and Proj-2) on front bottom edge
• Input Jacks: Microphone, Auxiliary/Line, Sync Line In, Sync Remote, Remote Start/Stop
• Output Jacks: Headphone, Auxiliary/Line, Sync Line Out, Projector Cord
• Rear Panel Jacks: REM/MIC, AUX
• Rear Panel Switches: ALS (Automatic Level Setting — Off/On), PA (Off/On)

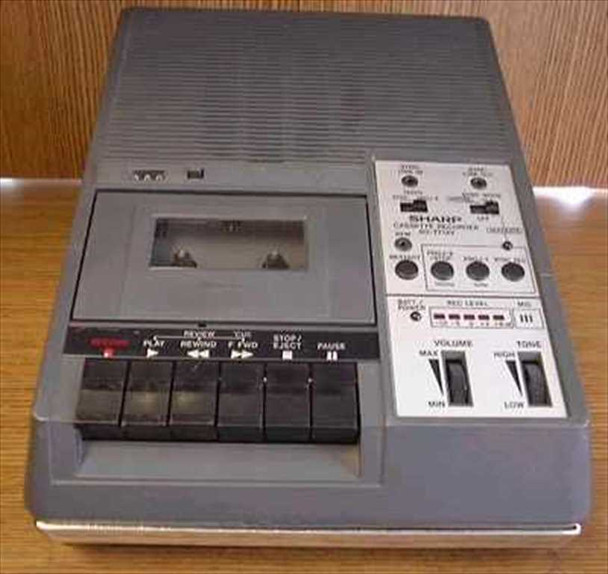

• Transport Controls: Record, Play, Rewind (with Review), Fast Forward (with Cue), Stop/Eject, Pause

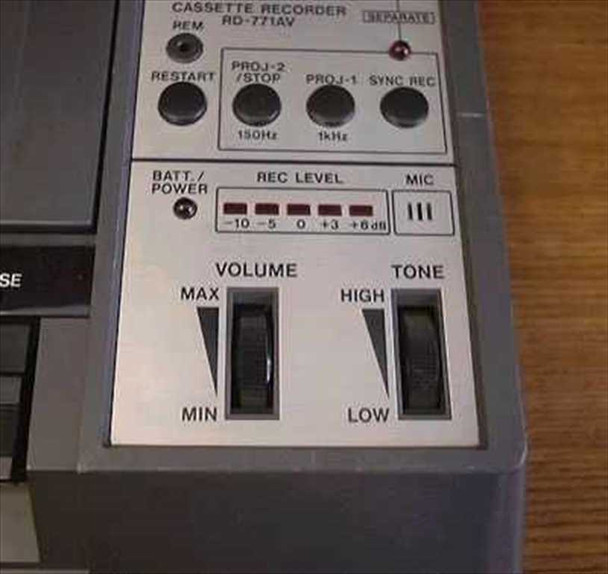

• Record Level Meter: VU-style, range -10 to +6 dB
• Volume Control: Sliding lever (Max/Min)
• Tone Control: Sliding lever (High/Low)
• Power: Battery or AC (AC cord stores inside the bottom compartment)
• Battery Compartment: Visible spring-type contacts in bottom compartment
• Included: Unit only — no manual, cables, or peripherals

Applications

Slide-sync cassette recorders like the Sharp RD-771AV were a standard tool in audio-visual education and corporate presentations from the late 1970s through the 1980s and into the early 1990s. They were designed to work alongside carousel and tray-type slide projectors — the recorder would place inaudible tone pulses on a dedicated tape track, which the projector's remote-advance input would detect to automatically advance the slide tray in sync with the narration. This allowed instructors, trainers, and AV departments to produce self-running audio-visual programs without a live operator. The RD-771AV supported both the 1kHz advance tone (Proj-1) and the 150Hz stop tone (Proj-2/Stop), making it compatible with a wide range of projectors that accepted standard sync signals. Units like this were used in schools, corporate training rooms, museum exhibits, and trade show displays throughout the era when 35mm slide projection was the dominant visual medium for formal presentations.
