Description

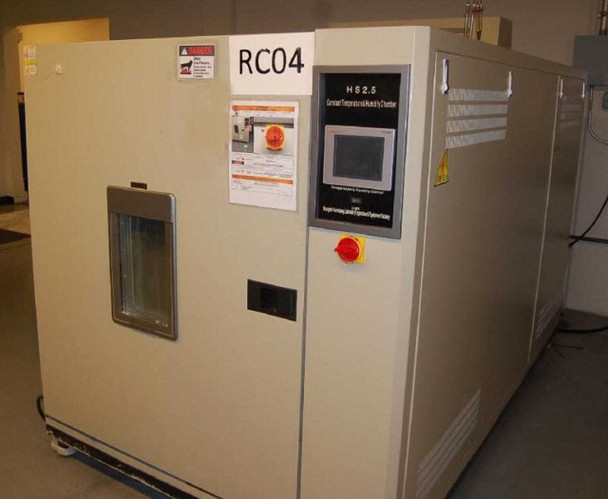

Shanghai HS2.5 Constant Temperature Humidity Environmental Test Chamber 380V
The Shanghai Yuanchang HS2.5 is a large-capacity, floor-standing constant temperature and humidity environmental test chamber designed for extended conditioning and reliability testing of components, assemblies, and finished products. The "HS2.5" designation refers to the 2.5 cubic meter usable interior volume. The chamber is controlled by a SAMSON TEM900 color touchscreen controller for temperature and humidity programming, monitoring, and data logging. Power is 380V three-phase; a Jefferson Electric 112.5 kVA dry-type step-up transformer (208V Delta input to 380V output) is included, making the chamber compatible with standard North American 208V three-phase service.
Specifications & What's Included
- Manufacturer: Shanghai Yuanchang Laboratory Apparatus & Equipment Factory
- Model: HS2.5
- Chamber Type: Constant Temperature & Humidity Environmental Test Chamber
- Interior Volume: Approx. 2.5 m³
- Interior Dimensions (W × D × H): 39" × 78" × 49" (approx. 990 × 1981 × 1245 mm)
- Power Requirements: 380V, 3-Phase, 60Hz

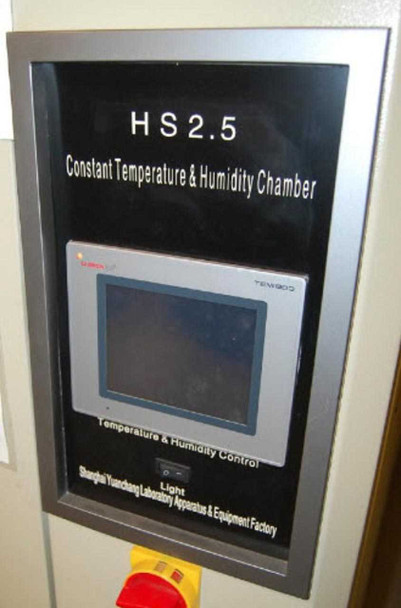

- Controller: SAMSON TEM900 color touchscreen (Temperature & Humidity Control)
- Interior Construction: Stainless steel walls, floor, and ceiling
- Observation Window: Door-mounted viewing port with interior light
- Door Seal: Full-perimeter red silicone gasket
- Mobility: Heavy-duty floor casters
- Emergency Stop: Red/yellow mushroom-style button on front panel

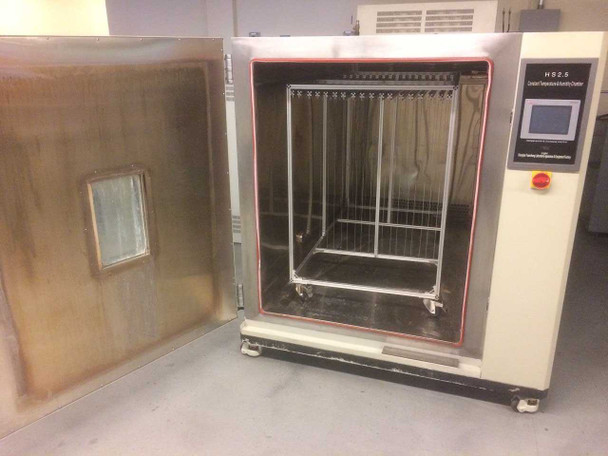

- Included: Removable wire mesh shelving rack on wheels

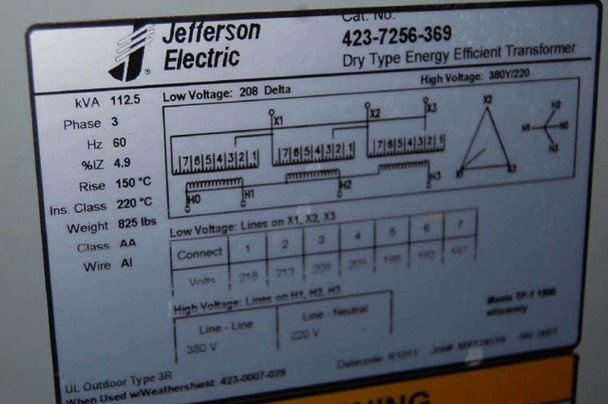

- Included Transformer: Jefferson Electric 423-7256-369, Dry Type Energy Efficient, 112.5 kVA, 3-Phase, 60Hz
- Transformer Input: 208V Delta (Low Voltage side)
- Transformer Output: 380V / 220V (High Voltage side)
- Transformer Insulation Class: 220°C
- Transformer Rating: UL Outdoor Type 3R, Class AA, Aluminum windings
Applications
Constant temperature and humidity test chambers are standard equipment in environmental stress screening (ESS), accelerated life testing (ALT), and reliability qualification programs across electronics manufacturing, automotive, aerospace, defense, and consumer goods industries. They are used to subject components, PCBs, finished assemblies, and materials to controlled temperature and humidity conditions — simulating real-world climate exposure to assess long-term durability, corrosion susceptibility, moisture ingress, and thermal cycling performance. Large-volume chambers like the HS2.5 (2.5 m³ interior) are suited for testing bulky assemblies, full system units, or high-throughput batches of smaller parts simultaneously. This class of chamber is commonly used in compliance testing to IEC, MIL-STD, JEDEC, and IPC standards. The SAMSON TEM900 touchscreen controller is a programmable profile controller capable of setting multi-step temperature and humidity ramp-and-soak sequences, making it well suited for both steady-state conditioning and cyclic test profiles.

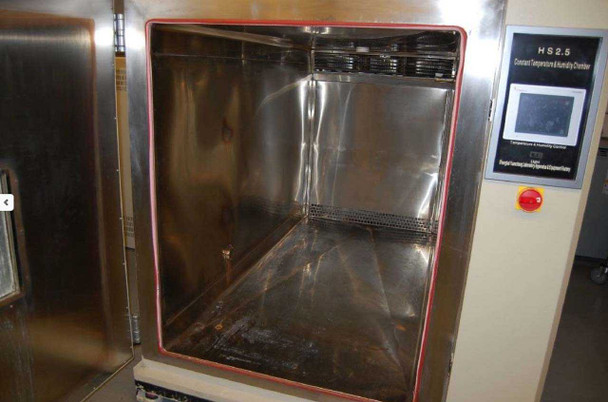

This Shanghai HS2.5 Constant Temperature & Humidity Environmental Test Chamber has been visually inspected and is in used condition. The exterior cabinet is in good shape with normal wear consistent with lab use. The interior stainless steel chamber shows water staining and residue deposits on the floor and door interior — visible in our photos — which is typical of a chamber that has seen humidity cycling service. The door seal gasket appears intact. The SAMSON TEM900 touchscreen controller is present and intact on the front panel. A Jefferson Electric 112.5 kVA dry-type step-up transformer (208V Delta to 380V/220V, Cat. No. 423-7256-369) is included. The chamber has not been powered up or tested at our facility, but it was pulled from a working lab environment where it was previously in use. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Shanghai Yuanchang |
Model: |
HS2.5 |
MPN: |
HS2.5 |
Type: |
Constant Temperature & Humidity Environmental Test Chamber |
SKU: |
51870 |
Manufacturer Full Name: |
Shanghai Yuanchang Laboratory Apparatus & Equipment Factory |
Controller: |
SAMSON TEM900 Touchscreen |
Power Requirements: |
380V, 3-Phase, 60Hz |
Interior Width: |
39 in (990 mm) |
Interior Depth: |
78 in (1981 mm) |
Interior Height: |
49 in (1245 mm) |
Interior Volume: |
Approx. 2.5 m³ (HS2.5 designation) |
Included Transformer: |
Jefferson Electric 423-7256-369, 112.5 kVA, 3-Phase |
Transformer Input Voltage: |
208V Delta (Low Voltage) |
Transformer Output Voltage: |
380V / 220V (High Voltage) |
Transformer kVA: |
112.5 kVA |
Transformer Part Number: |
423-7256-369 |
Form Factor: |
Floor-Standing / Walk-In |
Mobility: |
Heavy-duty casters |
Interior Material: |
Stainless Steel |
Observation Window: |
Yes — door-mounted viewing port |
Interior Shelving: |
Removable wire mesh rack on wheels |
Door Seal: |
Red silicone gasket, full perimeter |
Emergency Stop: |
Red/yellow mushroom button, front panel |
Country/Region of Manufacture: |
China |
Seller Notes: |
Includes removable wire mesh shelving rack and Jefferson Electric 112.5 kVA step-up transformer (208V to 380V). |
Condition Notes: |
Shanghai HS2.5 Constant Temp & Humidity Environmental Test Chamber, used. Interior shows water staining typical of humidity service. Exterior and door seal good. Includes Jefferson Electric 112.5 kVA 208V–380V transformer. |
