Senco

Senco 895484 AB Data Switch 2x2 Parallel DB25 Manual Switchbox AaBb AbBa

(No reviews yet) Write a Review
SKU:
21229
MPN:
895484
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

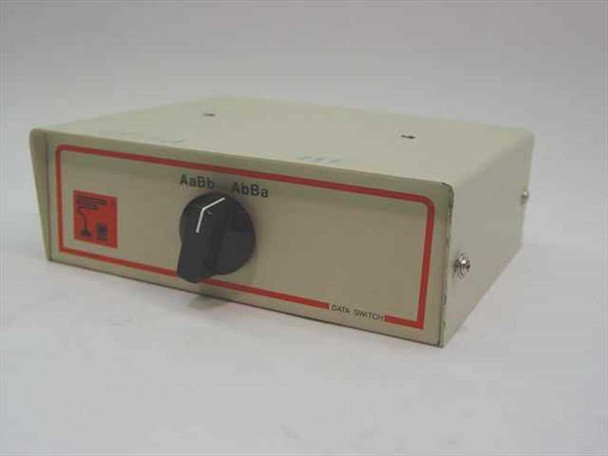

  • Senco 895484 AB Data Switch – front panel view showing rotary selector and AaBb AbBa labels
  • Senco 895484 AB Data Switch – rear panel with four DB-25 female ports labeled A, a, B, b
  • Senco 895484 label closeup on bottom of unit showing brand name and part number
  • Senco 895484 AB Data Switch – front face close-up showing rotary knob and DATA SWITCH label
$18.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Senco 895484 AB Data Switch 2x2 Parallel DB25 Manual Switchbox AaBb AbBa

The Senco 895484 is a manual 2x2 AB data switch designed to route parallel data signals between two host devices and two peripherals without the need for software or power. A front-panel rotary selector switches between two configurations — AaBb (host A to peripheral a, host B to peripheral b) or AbBa (host A to peripheral b, host B to peripheral a) — giving users flexible control over which device communicates with which peripheral. The unit is fully passive and requires no external power supply.

Specifications & What's Included

  • Brand: Senco
  • Part Number: 895484
  • Type: Manual 2x2 AB Data Switch
  • Switch Configuration: AaBb / AbBa (2-host, 2-peripheral routing)
  • Connectors: 4x DB-25 female ports on rear panel (labeled A, a, B, b)
  • Interface: Parallel (DB-25)
  • Switch Control: Front-panel manual rotary knob
  • Form Factor: Desktop
  • Dimensions: 6" W × 5½" D × 2" H
  • Power Required: None (fully passive)
  • Included: Switch unit only — no cables included

Applications

Manual AB data switches like the Senco 895484 were widely used from the 1980s through the early 2000s to share printers, plotters, and other parallel-port peripherals between two computers, or to connect one computer to two different peripherals and switch between them on demand. They are particularly common in environments running legacy DOS-based or Windows 9x systems with parallel-port printers or external storage devices. Today they remain useful for maintaining older parallel-port equipment — such as label printers, dot-matrix printers, and CNC machine interfaces — without reconfiguring cables. The passive, no-power design means there is no signal degradation from active electronics, and the rotary selector provides instant, reliable switching with no software dependencies. This type of switch is a staple in industrial, printing, and legacy office environments where parallel connectivity is still in use.

Condition: Used
This Senco 895484 AB Data Switch has been inspected and appears to be in good used condition. The beige metal enclosure shows some light surface scuffing and minor shelf wear consistent with prior use, but is structurally intact with no cracks or significant damage. All four DB-25 female ports on the rear panel are present and appear undamaged, and the front-panel rotary selector moves freely. No cables are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Senco
Model:
895484
MPN:
895484
Type:
Manual AB Data Switch
SKU:
21229
Number of Ports:
4 x DB-25 (Female)
Switch Configuration:
2x2 AB (AaBb / AbBa)
Connector Type:
DB-25 Female (x4)
Interface:
Parallel
Switch Type:
Manual Rotary
Port Labels:
A, a, B, b
Form Factor:
Desktop
Dimensions:
6" W x 5.5" D x 2" H
Condition:
Used – Inspected
Seller Notes:
Unit only; no cables included.
Country/Region of Manufacture:
United States
Condition Notes:
Senco 895484 AB Data Switch in good used condition. Light surface scuffing and minor shelf wear. All four DB-25 ports present and undamaged. Rotary selector moves freely. No cables included.
