Seasonic SS-220 200W AT XT Switching Power Supply Vintage 486 PC 90-260VAC
The Seasonic SS-220 is a 200-watt switching power supply built for the IBM PC AT and XT form factor, used in desktop computers from the mid-1980s through the early-to-mid 1990s. It provides four regulated DC output rails and includes an integrated front-panel rocker switch — the standard arrangement for AT-class machines before ATX soft-power switching became the norm.
Specifications & What's Included

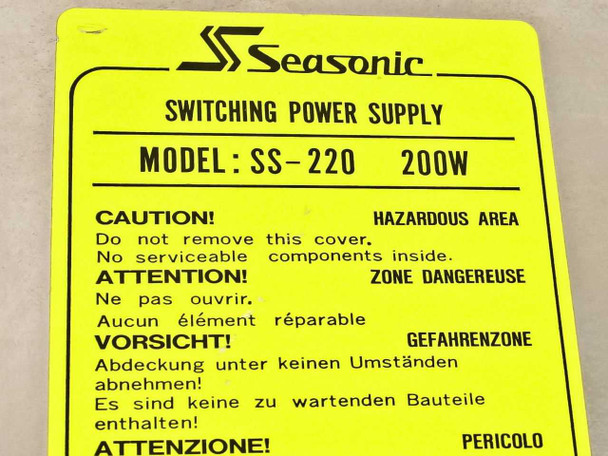

- Model: Seasonic SS-220 (SS220)
- Output power: 200W
- Form factor: AT / XT (P8/P9 motherboard connector)

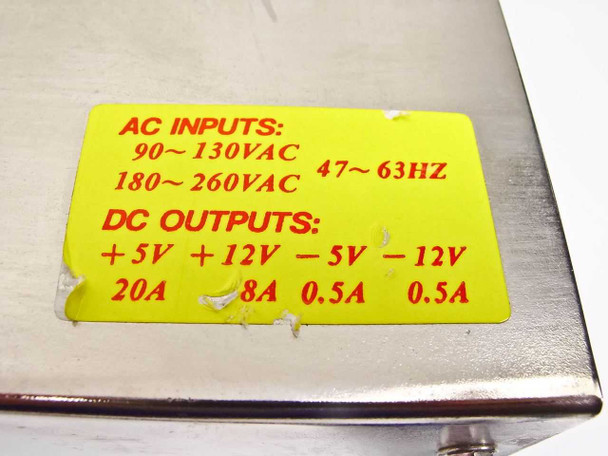

- AC input: 90–130VAC or 180–260VAC (dual-range selector switch)
- Input frequency: 47–63Hz
- DC output +5V: 20A
- DC output +12V: 8A
- DC output -5V: 0.5A
- DC output -12V: 0.5A

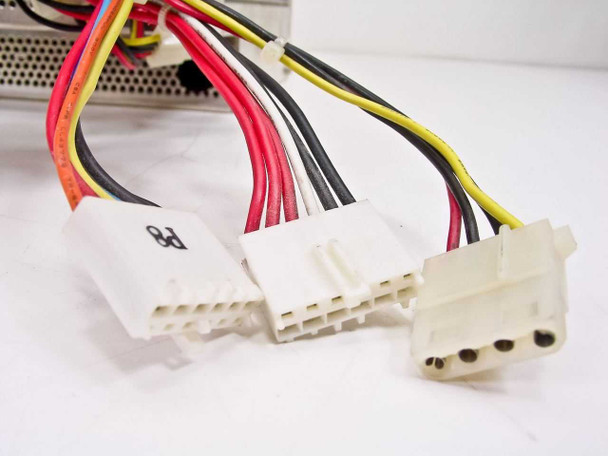

- Main connector: AT P8/P9 split motherboard power connector
- Peripheral connectors: Molex 4-pin drive power connectors (multiple)
- Cooling: rear-mounted 80mm fan
- AC inlet: IEC C14 input with IEC C13 pass-through outlet on rear panel
- Power switch: integrated on/off rocker switch on right side panel
- Enclosure: steel chassis construction
Applications
The AT-style switching power supply was the standard power source for IBM PC AT–compatible desktop computers through the 286, 386, and 486 generations — roughly 1984 through the mid-1990s. These units connect to the motherboard via two separate 6-pin P8 and P9 connectors (keyed so both plugged in side by side) and provide the +5V, +12V, -5V, and -12V rails that AT-era boards and ISA expansion cards required. The integrated mechanical on/off switch was wired directly into the AC mains circuit, distinguishing AT supplies from the later ATX standard where the motherboard controls power-on through a soft-switched 5V standby rail. The Seasonic SS-220 was a well-regarded OEM supply of its era, used in a wide range of XT and AT clone desktop systems. Today these are sought by collectors, retro-computing enthusiasts, and technicians maintaining vintage machines — particularly 286, 386, and 486-class systems — where original-spec AT power supplies are increasingly difficult to find in tested working condition.
This Seasonic SS-220 200W AT/XT Switching Power Supply has been bench-tested at our facility and is in good working condition — it powers on a 486 PC and successfully displays BIOS. The steel enclosure shows light surface wear consistent with its vintage era, and all connectors appear intact. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Seasonic |
Model: |
SS-220 |
MPN: |
SS-220 |
SKU: |
41629 |
Type: |
AT/XT Switching Power Supply |
Maximum Output Power: |
200W |
Form Factor: |
AT / XT |
AC Input Voltage: |
90–130VAC or 180–260VAC (dual range) |
Input Frequency: |
47–63Hz |
DC Output +5V: |
+5V @ 20A |
DC Output +12V: |
+12V @ 8A |
DC Output -5V: |
-5V @ 0.5A |
DC Output -12V: |
-12V @ 0.5A |
Main Connector: |
AT P8/P9 motherboard connector |
Peripheral Connectors: |
Molex 4-pin drive power connectors |
Power Switch: |
Integrated rocker on/off switch |
Fan: |
Rear-mounted 80mm cooling fan |
AC Inlet: |
IEC C14 (input) + IEC C13 pass-through outlet |
Compatible With: |
IBM PC XT, IBM PC AT, 286, 386, 486 systems |
Seller Notes: |
Bench-tested working; powers on a 486 PC and displays BIOS. |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
This Seasonic SS-220 200W AT/XT power supply has been bench-tested and is in good working condition — powers on a 486 PC and shows BIOS. Enclosure shows light wear typical of vintage equipment. Please contact us with any questions. |
