Seagate ST34342A 4.3GB 3.5" IDE Hard Drive Medalist ATA Desktop HDD

Seagate ST34342A 4.3GB 3.5" IDE Hard Drive Medalist ATA Desktop HDD

The Seagate ST34342A is a 3.5-inch internal IDE (ATA/PATA) hard drive from Seagate's Medalist series, offering 4.3GB of storage capacity. It uses a standard 40-pin IDE interface and 4-pin Molex power connector, making it a drop-in fit for any desktop PC or system with a legacy IDE controller.

Specifications & What's Included

• Model: Seagate ST34342A
• Product Line: Seagate Medalist
• Capacity: 4.3 GB
• Form Factor: 3.5" (half-height)

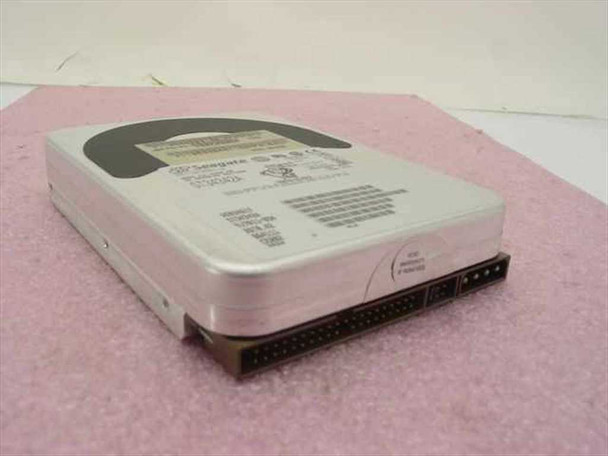

• Interface: IDE / ATA (PATA) — 40-pin connector
• Power: 4-pin Molex
• Cylinders: 8,894
• Heads: 15
• Sectors per Track: 63
• Country of Manufacture: Thailand

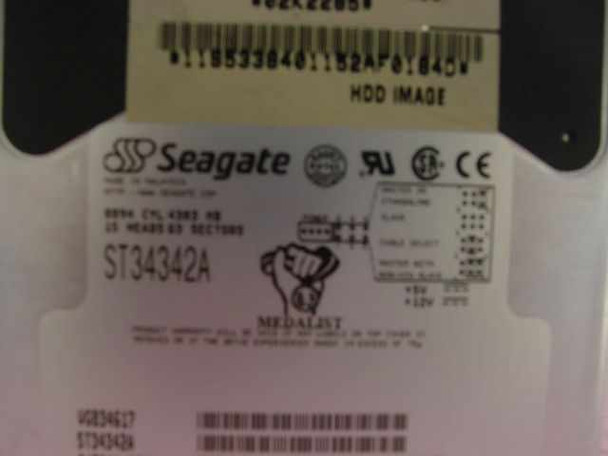

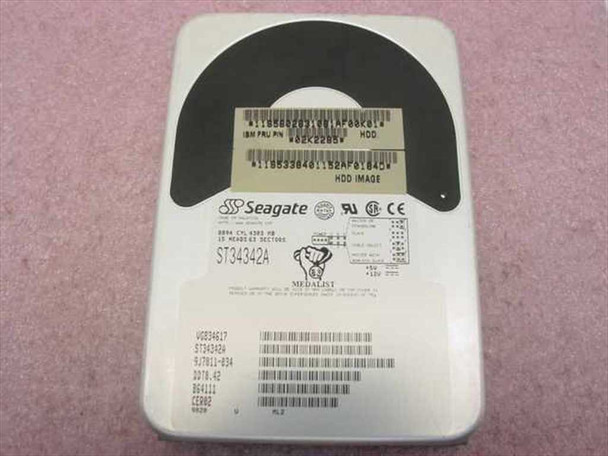

• IBM P/N: 76K22057 (IBM OEM sticker present)
• Drive only — no cables or brackets included

Applications

The Seagate Medalist series was Seagate's mainstream desktop hard drive line through the mid-to-late 1990s, targeting the growing consumer and business PC market during the IDE/ATA era. Drives like the ST34342A were standard equipment in desktop PCs, workstations, and entry-level servers of that period — a time when 4GB represented a substantial amount of local storage. Today, drives in this capacity range are used primarily for maintaining and restoring period-correct vintage computers, DOS/Windows 95/98-era systems, early industrial PCs, CNC controllers, and embedded systems that require a specific small-capacity IDE drive and cannot use modern SATA hardware. They are also collected by vintage computing enthusiasts. The 40-pin IDE interface was the dominant desktop storage standard from the late 1980s through the mid-2000s before SATA took over.
