Vintage

SD-101 8-Bit ISA Multifunction I/O Card Parallel Printer Serial Game Port DB25

(No reviews yet) Write a Review
SKU:
47368
MPN:
SD-101
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

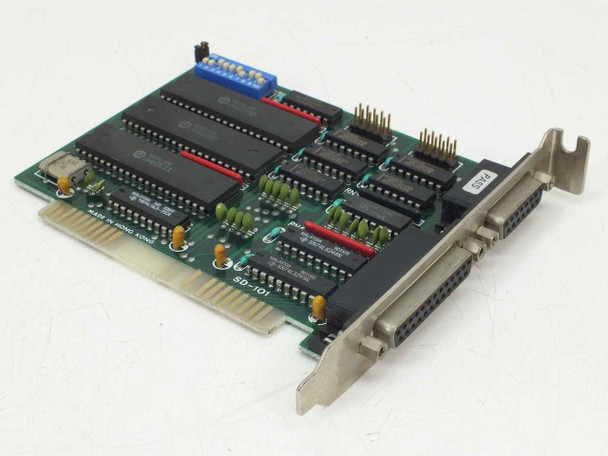

  • SD-101 8-bit ISA multifunction I/O card – angled top view showing component side with DB25 and DB15 bracket connectors
  • SD-101 ISA card – solder side view showing back of PCB and ISA edge connector fingers
  • SD-101 ISA multifunction card – component side angled view showing ICs, resistor networks, and port bracket
  • SD-101 ISA card – component side showing PRINTER, GAME, COM1, COM2 silkscreen labels and DIP switch block
  • SD-101 ISA card – bracket edge view showing dual DB25 female parallel and game port connectors

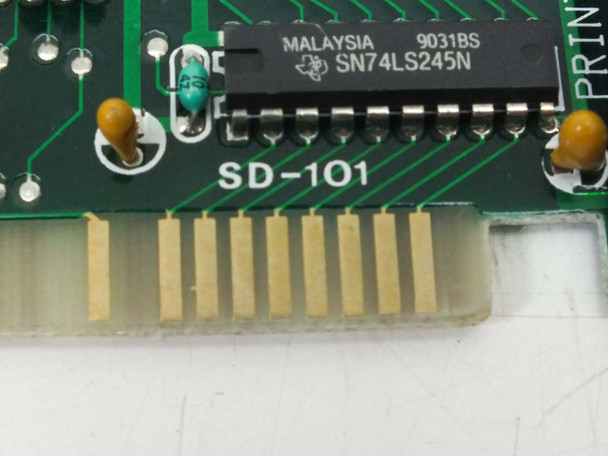

  • SD-101 ISA card – close-up of Texas Instruments SN74LS245N chip and SD-101 PCB model marking
$25.00
Was: $50.00
Current Stock: 1

Sold Out

Description

SD-101 8-Bit ISA Multifunction I/O Card Parallel Printer Serial Game Port DB25

This is an unbranded multifunction I/O controller card designed for 8-bit ISA bus systems. It provides parallel printer output, dual serial ports, and game port connectivity on a single half-length card.

Specifications & What's Included

  • Bus Interface: 8-bit ISA
  • Parallel Port: DB25 Female (Printer)
  • Game Port: DB15 Female (15-pin)
  • Serial Ports: COM1, COM2 (header connectors)
  • Controller Chip: Texas Instruments SN74LS245N
  • Form Factor: Half-length ISA card
  • Card only; no cables included

Applications

This card type was used to add or expand I/O capabilities in IBM PC XT, AT, and compatible systems running 8-bit ISA architecture. It supported legacy parallel printers, serial devices, and joystick input through a single expansion slot. These cards were common in industrial and business computing environments where multiple I/O connections were required.

Condition: Used
This SD-101 8-Bit ISA Multifunction I/O Card has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The PCB shows typical light handling wear consistent with normal service life; no cracks, burns, or damaged traces are visible. The DB25 parallel and DB15 game port bracket connectors appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
SD-101
MPN:
SD-101
Type:
ISA Multifunction I/O Controller Card
SKU:
47368
Condition:
Used – Pulled from Working Environment
Bus Interface:
8-Bit ISA
Form Factor:
Half-Length ISA Card
Parallel Port:
DB25 Female (Printer)
Game Port:
DB15 Female (15-Pin)
Serial Ports:
COM1, COM2 (header connectors on board)
Main Controller Chip:
Texas Instruments SN74LS245N (bus transceiver)
Country/Region of Manufacture:
Hong Kong
Compatible With:
IBM PC XT, AT, and 8-bit ISA compatible systems
Seller Notes:
Card only; no cables included. Pulled from a working environment.
Condition Notes:
This SD-101 8-Bit ISA I/O Card has been inspected and is in good used condition. Pulled from a working environment where it was in active use. PCB shows typical light wear; bracket connectors appear intact.
View AllClose
