Scissor Lift Table SL35 Hydraulic 3.2HP Baldor 3Ph 208-230/460V 60x30 Platform

Scissor Lift Table SL35 Hydraulic 3.2HP Baldor 3Ph 208-230/460V 60x30 Platform

This is a hydraulic scissor lift table with electronic control, featuring a 60" x 30" steel work platform and a Baldor three-phase motor. The scissor mechanism collapses to a low-profile 16.5" working height and raises to 50", giving roughly 33.5" of vertical travel — enough to bring work up to a comfortable standing height or stage material for transfer. The lift is fitted with a full accordion bellows skirt that wraps the scissor mechanism on all sides, keeping chips, sawdust, and debris out of the linkage and protecting the operator from pinch points.

Specifications & What's Included

• Model: SL 35 Scissor Lift Table
• Platform surface: 60" L x 30" W steel plate
• Collapsed height: 16.5"
• Maximum raised height: 50"
• Vertical travel: approximately 33.5"
• Drive type: Hydraulic
• Control type: Electronic

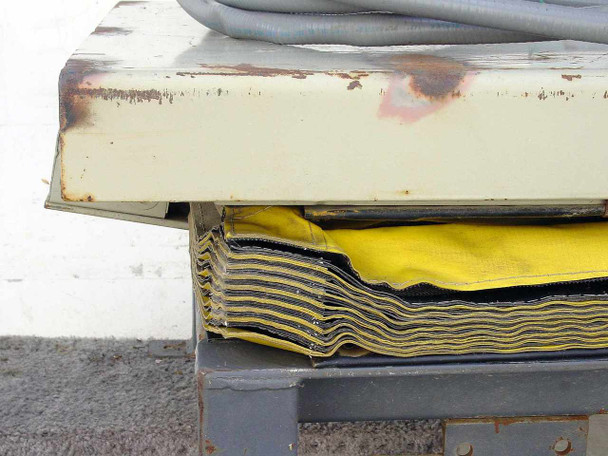

• Bellows skirt: Full accordion bellows on all sides — protects scissor mechanism from dust and debris, guards against pinch points
• Motor brand: Baldor Industrial Motor
• Motor catalog number: 35K838-186
• Motor series: F1294
• Motor type: Three Phase, Totally Enclosed (TE)
• Motor horsepower: 3.2 HP
• Motor voltage: 208-230/460V
• Motor amperage: 8.4-8/M A
• Motor speed: 3450 RPM
• Motor frame: 56YZ
• Mobility: Caster wheels on base frame
• Included: Coiled gray control cable (wire ends exposed — pendant or controller not confirmed present)

Applications

Hydraulic scissor lift tables like this one are standard material-handling equipment in woodworking shops, fabrication facilities, warehouses, and assembly lines. They bring heavy workpieces, sheet goods, or pallets up to an ergonomic working height, eliminating the need to bend or crouch and reducing fatigue and injury risk on production floors. The 60" x 30" platform is well-suited for sheet stock, door blanks, or large panel work. Three-phase hydraulic drive units in this class are typically found in industrial environments with 208V or 480V three-phase service, making them common in manufacturing plants, commercial cabinet shops, and production woodworking facilities. The bellows skirt on this unit was specifically designed for dusty environments like a woodworking shop — an important safety and maintenance feature that keeps the scissor mechanism clean and reduces wear over time. Mobile caster bases allow the table to be repositioned on the shop floor without a forklift.
