Description
Schreiber 1000AC Air Cooled 10 Ton Water Chiller 460VAC 3-Phase 120K BTU 25A
The Schreiber 1000AC is an air-cooled process water chiller rated at 10 tons (120,000 BTU/hr) of cooling capacity. It uses a twin refrigeration circuit — two independent 5-ton systems sharing a common cabinet — and includes an integral fluid pump rated at 70 GPM at 38 PSI. Power is 460VAC, 3-phase at 25A FLA, and the unit is ARI-rated at 44°F chilled water output at 95°F ambient. Manufactured by Schreiber Engineering Corporation of Cerritos, California under their TrueTon Water Chiller product line.
Specifications & What's Included
- Model: Schreiber 1000AC (TrueTon Water Chiller)
- Cooling capacity: 10 Ton / 120,000 BTU/hr

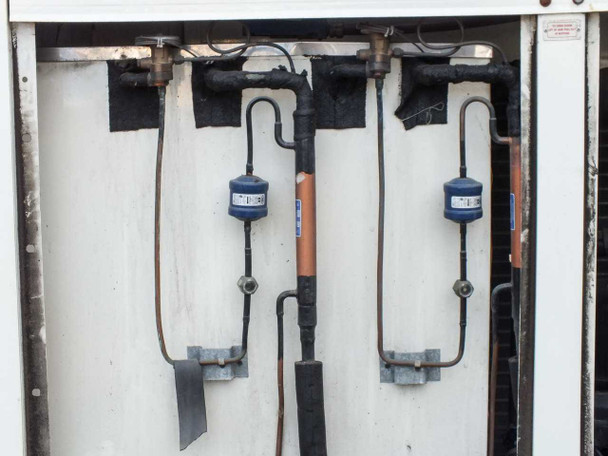

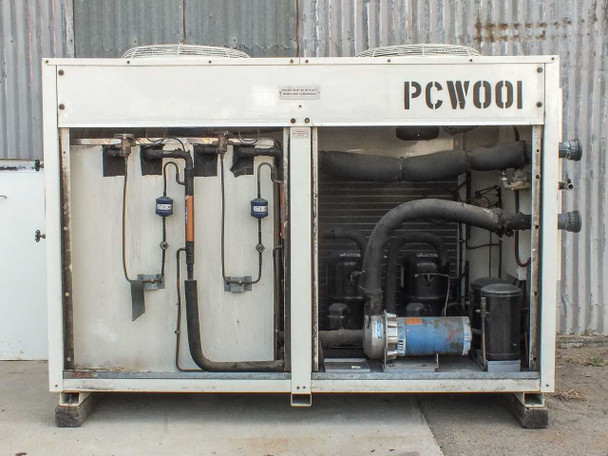

- Refrigeration system: Twin 5-ton dual-circuit configuration
- Voltage: 460V AC
- Phase: 3-Phase
- FLA (Full Load Amps): 25A
- ARI rating condition: 44°F chilled water at 95°F ambient

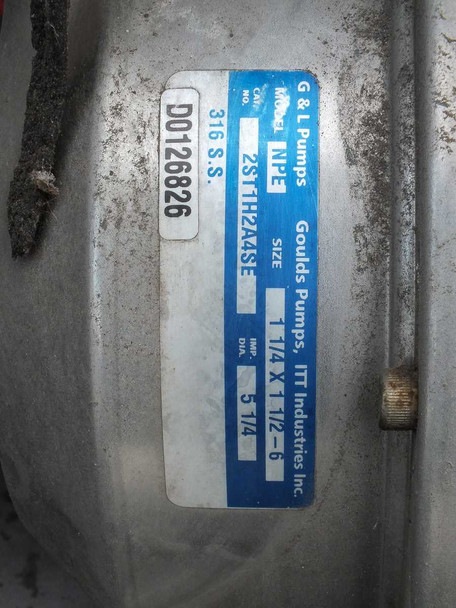

- Fluid pump: 70 GPM at 38 PSI

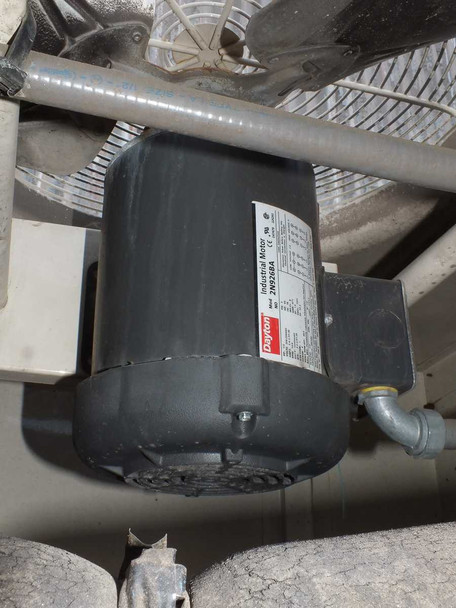

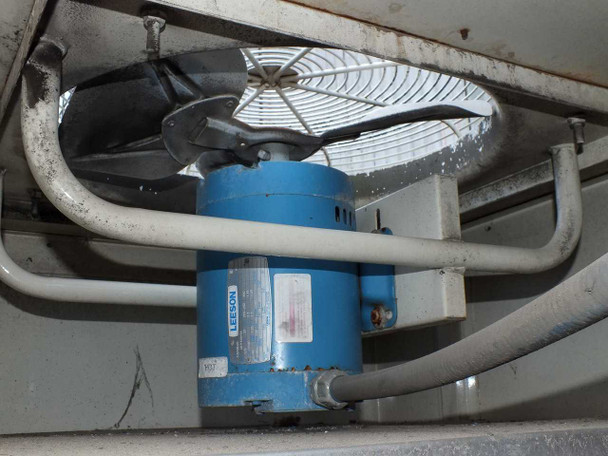

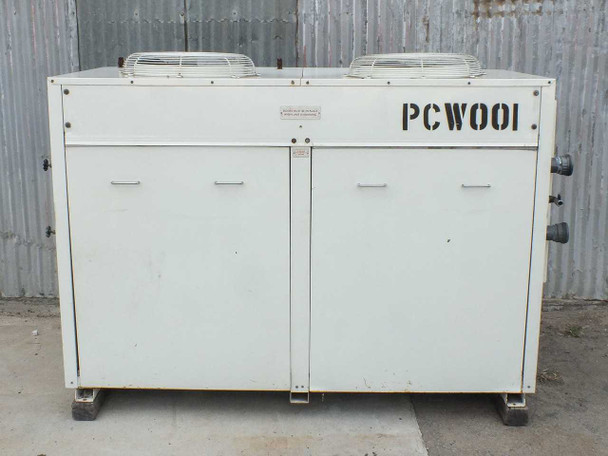

- Condenser: Air-cooled — two top-mounted condenser fans
- Refrigerant: Freon (system currently requires leak repair and recharge — see condition notes)

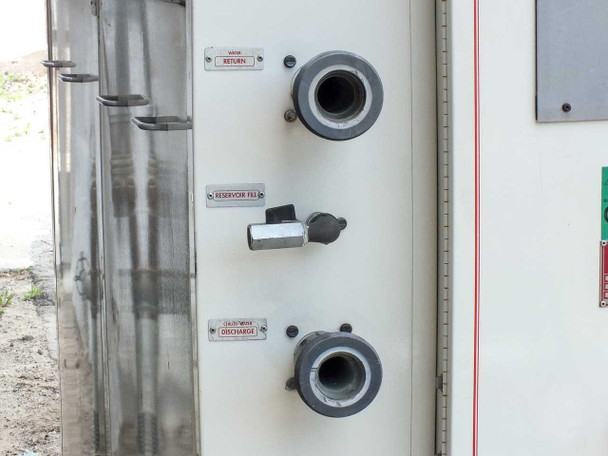

- Chilled water connections: Large-diameter return and discharge ports (PVC couplings)
- Reservoir: Includes sight glass level gauge, overflow port, and reservoir drain valve

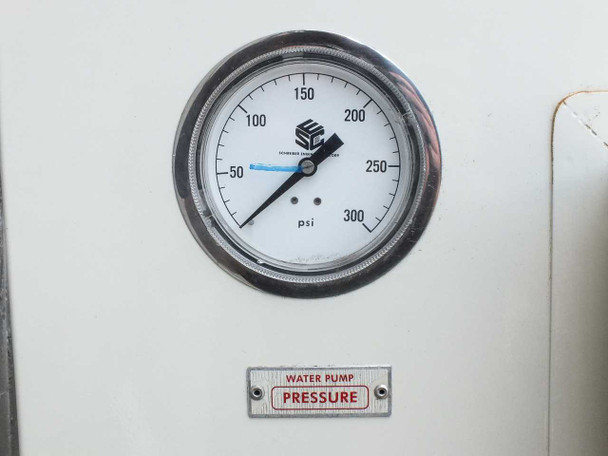

- Water pump pressure gauge: 0–300 PSI, front panel-mounted

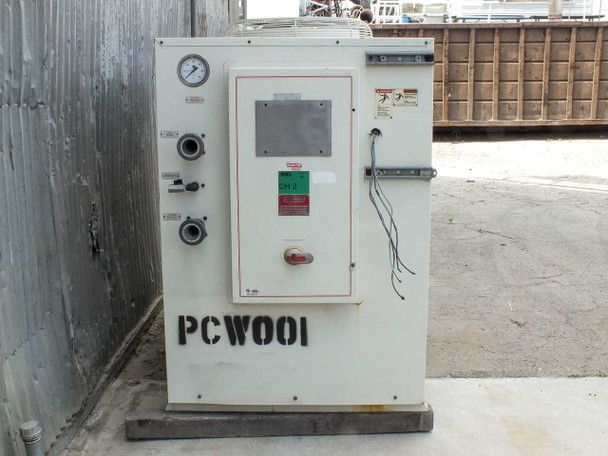

- Control panel: Green/red start-stop buttons, safety labels, pressure gauge
- Power disconnect: Rotary OFF/ON switch on panel
- Form factor: Packaged self-contained unit on skid/base frame
- Serial No.: 20286
Applications
Air-cooled process water chillers like the Schreiber 1000AC are used wherever a reliable source of temperature-controlled chilled water is needed without access to a cooling tower or condenser water loop. The self-contained, packaged design — compressors, condenser coils, fans, pump, and controls all in one cabinet — makes them common in plastics processing (injection molding, blow molding, extrusion), laser cutting and engraving systems, semiconductor and electronics manufacturing, CNC machine tool spindle cooling, pharmaceutical and chemical process equipment, and general industrial process cooling. The twin-circuit design provides redundancy and allows partial-load operation, which was a selling point of the TrueTon line for facilities needing reliable uptime. At 10 tons, this size is typical of mid-scale production environments. Schreiber Engineering Corporation, based in Cerritos, California, built their TrueTon chillers with a reputation for heavy-duty construction; the all-in-one skid-mounted format was designed for straightforward field installation with only electrical and piping connections required.
This Schreiber 1000AC Air-Cooled 10-Ton Water Chiller is being sold in as-found condition with a known refrigerant issue: the system has a slow refrigerant (Freon) leak that will need to be located, repaired, and the system recharged before the chiller can be returned to service. The unit has not been repaired or recharged by us. Externally, the cabinet is in typical used condition with general surface wear and some weathering. The condenser coils show significant dirt and debris buildup and will need a thorough cleaning before operation — photos show the coil condition clearly. The control panel, water connections (return, discharge, reservoir fill), sight glass level gauge, overflow port, reservoir drain valve, and power disconnect switch are all present and intact as shown in the photos. Please review all photos carefully for a full picture of the unit's condition and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Schreiber |
Model: |
1000AC |
MPN: |
1000AC |
Type: |
Air-Cooled Water Chiller |
SKU: |
50139 |
Seller Notes: |
Chiller only — no external piping or electrical connections included. |
Country/Region of Manufacture: |
United States |
Cooling Capacity: |
10 Ton (120,000 BTU/hr) |
Refrigeration System: |
Twin 5-Ton (Dual Circuit) |
Voltage: |
460V AC |
Phase: |
3-Phase |
Frequency: |
60 Hz |
FLA (Full Load Amps): |
25A |
ARI Rating Condition: |
44°F Chilled Water at 95°F Ambient |
Fluid Pump Flow Rate: |
70 GPM |
Fluid Pump Pressure: |
38 PSI |
Condenser Type: |
Air-Cooled (Two Top-Mounted Condenser Fans) |
Refrigerant: |
Freon (requires leak repair and recharge) |
Chilled Water Connections: |
Large-diameter PVC couplings — Return and Discharge |
Water Pump Pressure Gauge Range: |
0–300 PSI |
Reservoir Features: |
Sight glass level gauge, overflow port, reservoir drain valve |
Form Factor: |
Packaged / Self-Contained Unit on Skid/Base |
Power Disconnect: |
Rotary OFF/ON disconnect switch on control panel |
Compatible With: |
Process cooling, industrial, plastics, laser, semiconductor |
Series: |
TrueTon Water Chiller by Schreiber |
Condition Notes: |
Schreiber 1000AC 10-Ton Air-Cooled Water Chiller has a known slow refrigerant leak — must be located, repaired, and recharged before use. Condenser coils need cleaning. Sold as-found. Please view photos and contact us with questions. |
