Description

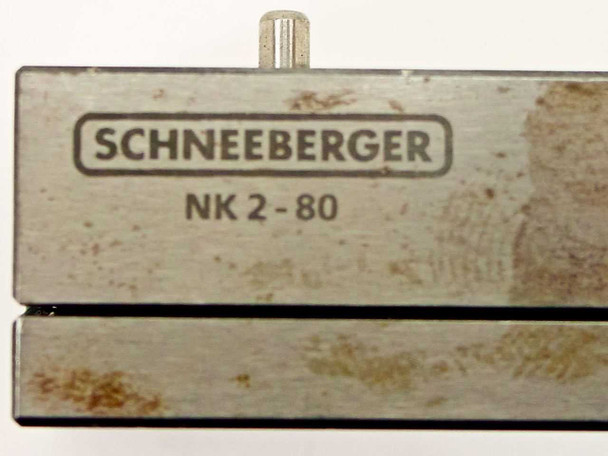

Schneeberger NK 2-80 Linear Positioning Slide 1-13/16" Travel 3-1/8" x 1-9/16"
The Schneeberger NK 2-80 is a compact linear positioning slide from Schneeberger's NK series, a line of miniature recirculating ball linear guides designed for precision positioning applications. The NK series combines a hardened steel carriage riding on recirculating ball elements within a compact, bolt-down body — providing smooth, low-friction linear motion in a small footprint. This unit offers approximately 1-13/16" (about 46 mm) of travel.
Specifications & What's Included
- Manufacturer: Schneeberger (Switzerland)
- Model: NK 2-80
- Series: NK (miniature recirculating ball linear guide)
- Travel: 1-13/16" (approx. 46 mm)
- Overall dimensions: 3-1/8" (L) x 1-9/16" (W) x 13/16" (H)

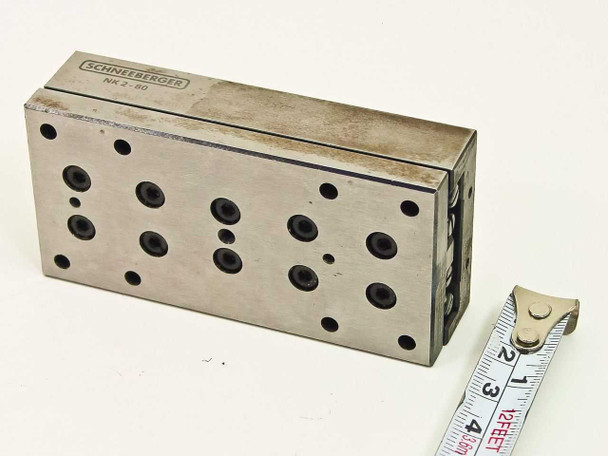

- Carriage top: multiple tapped mounting holes in grid pattern for fixture attachment
- Base: tapped mounting holes for surface or sub-plate mounting
- End plate: four slotted adjustment screws visible on end face
- Locating pin on carriage top surface

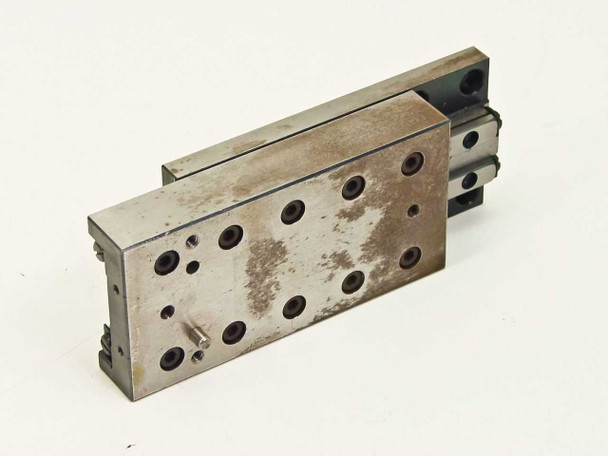

- Recirculating ball rail guides on carriage sides
- Slide only — no actuator, motor, lead screw, or additional mounting hardware included
Applications
Schneeberger NK series slides are used in precision linear positioning tasks across laboratory automation, optical instrument design, semiconductor handling, machine tool accessories, and scientific instrumentation. Their compact form factor makes them well suited for tight-clearance setups where a full-size linear stage would not fit — such as microscope stages, fiber-optic alignment fixtures, small CNC accessories, and custom positioning jigs. Schneeberger has been producing precision linear motion components since the mid-20th century, and the NK series recirculating ball design became a standard building block in European precision machine design from the 1970s onward. These slides continue to be used today wherever a compact, stiff, smooth linear guide is needed in a custom or retrofitted mechanism.
This Schneeberger NK 2-80 linear positioning slide has been pulled from a working environment and inspected. The slide operates and moves along its travel without binding. Photos show surface oxidation and light rust on the carriage top and base, consistent with age and storage — this is cosmetic and does not affect the slide's function. The rail guides and carriage face some typical wear marks. No actuator, motor, or additional hardware is included. Please review our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Schneeberger |
Model: |
NK 2-80 |
MPN: |
NK 2-80 |
SKU: |
42552 |
Type: |
Linear Positioning Slide |
Travel: |
1-13/16" (approx. 46 mm) |
Overall Dimensions: |
3-1/8" x 1-9/16" x 13/16" |
Series: |
NK |
Mounting: |
Bolt-down, multiple tapped mounting holes on carriage and base |
Seller Notes: |
Slide only — no actuator, motor, or mounting hardware included. |
Country/Region of Manufacture: |
Switzerland |
Form Factor: |
Compact / Miniature |
Compatible With: |
Precision automation, optical, and machine tool systems requiring compact linear motion |
Condition Notes: |
This Schneeberger NK 2-80 linear positioning slide was pulled from a working environment. Shows surface oxidation and light cosmetic rust on the carriage; slide moves without binding. No actuator or hardware included. |
