Schlage

Schlage AL53PD SAT 626 Cylindrical Entrance Lock C Keyway Grade 2 Satin Chrome

(No reviews yet) Write a Review
SKU:
49082
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

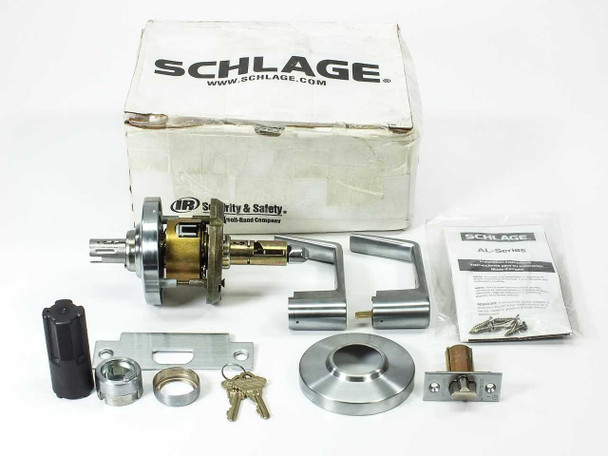

  • Schlage AL53PD SAT 626 cylindrical entrance lock full kit with original Schlage box, lever handles, chassis, latch, rose, keys, and hardware
  • Schlage AL53PD SAT 626 box label showing model, latch number 11-091, strike 10-025, door range 1-3/8 to 1-7/8, 2-3/4 backset, and C keyway designation

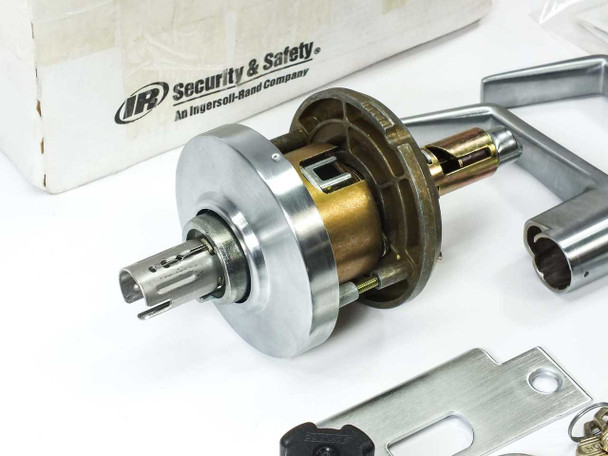

  • Schlage AL53PD lock chassis assembly close-up showing machined brass and steel cylindrical body with spindle, beside Saturn lever handles and strike plate

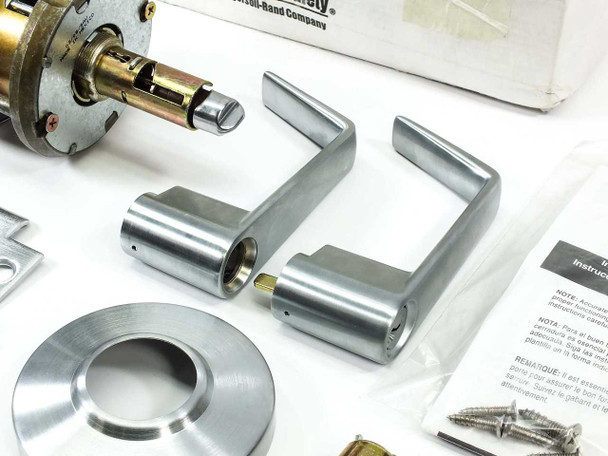

  • Schlage AL53PD SAT 626 lever handles pair and rose plate in satin chrome finish, with chassis and strike plate visible

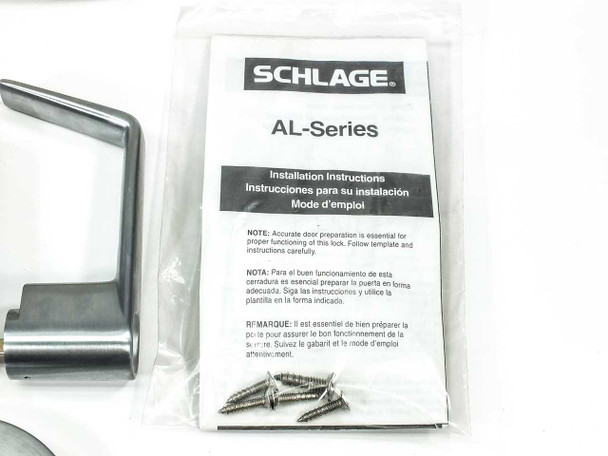

  • Schlage AL-Series installation instructions sheet with multilingual text and bag of mounting screws

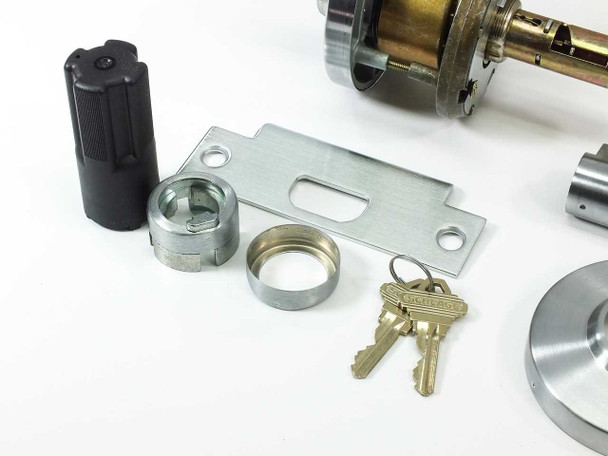

  • Schlage AL53PD lock hardware components: black spindle tool, cylinder ring, strike plate, and two nickel silver cut keys on ring

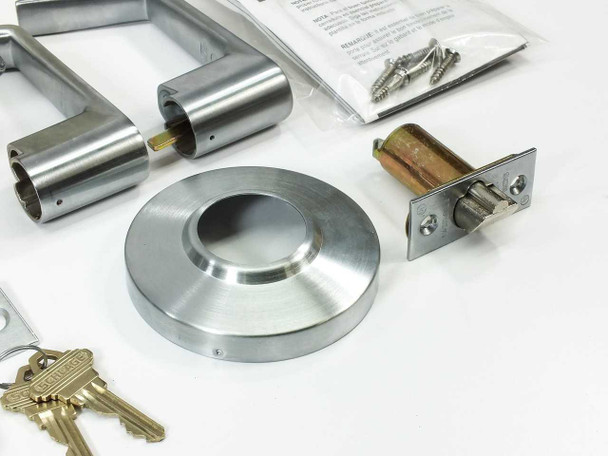

  • Schlage AL53PD SAT 626 components laid out: pair of Saturn lever handles, rose plate, latch assembly, keys, screws bag, and strike plate
$145.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Schlage AL53PD SAT 626 Cylindrical Entrance Lock C Keyway Grade 2 Satin Chrome

Cylindrical entrance lever lock with keyed-both-sides function. Grade 2 ANSI/BHMA rated for standard commercial and residential door applications.

Specifications & What's Included

  • Model: AL53PD SAT 626 | C Keyway | 626 Satin Chrome finish
  • Grade 2 (ANSI/BHMA) | Reversible handing
  • Door thickness: 1-3/8" to 1-7/8" | 2-3/4" backset
  • Saturn (SAT) lever style | Cold-rolled steel chassis
  • Includes: Lever handles, rose, latch, strike plate, 2 nickel silver cut keys, screws, and installation instructions

Applications

Cylindrical entrance locks serve as primary locking mechanisms on commercial and residential doors where keyed entry control is required from both sides. The AL-Series is commonly used in office buildings, retail spaces, and multi-unit residential buildings. Grade 2 construction handles moderate to heavy use in standard openings.

Condition: For Parts or Not Working
This Schlage AL53PD SAT 626 cylindrical entrance lock is new and unused. It comes in the original Schlage box and includes all components: the lock chassis, a pair of Saturn lever handles, the rose plate, latch, strike plate, mounting screws, and two nickel silver cut keys. The AL-Series installation instructions sheet is also included. The hardware shows no signs of use or wear. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Schlage
Model:
AL53PD SAT 626
MPN:
AL53PD SAT 626
Secondary Model:
AL53PD
Type:
Cylindrical Entrance Lever Lock
SKU:
49082
Series:
AL-Series
Function:
Entrance (Keyed Both Sides)
Finish:
626 Satin Chrome
Keyway:
C Keyway
Grade:
Grade 2 (ANSI/BHMA)
Door Thickness Range:
1-3/8 in to 1-7/8 in
Backset:
2-3/4 in
Latch Throw:
1/2 in
Handing:
Reversible
Lever Style:
SAT (Saturn)
Material:
Cold-rolled steel chassis, machined hubs
Keys Included:
2 nickel silver cut keys
Included Components:
Lever handles, chassis, latch, strike plate, rose, 2 keys, screws, instructions
Latch Part Number:
11-091
Strike Part Number:
10-025
Seller Notes:
New in original Schlage box. Includes 2 cut keys, latch, strike plate, rose, screws, and AL-Series installation instructions.
Country/Region of Manufacture:
United States
Compatible With:
Standard commercial and residential doors 1-3/8–1-7/8 thick
Condition:
New
Condition Notes:
Schlage AL53PD SAT 626 cylindrical entrance lock — new in original box. Includes chassis, Saturn lever handles, rose, latch, strike, 2 cut keys, screws, and installation instructions. No signs of use or wear.
