Description
SBS Y8373950 Industrial Rackmount PC Dual Pentium III 1GHz 512MB SCSI Server
The SBS Y8373950 is a 5U industrial rackmount computer built by SBS Technologies (Single Board Systems) around a passive ISA/PCI backplane architecture. The system houses a Texas Micro dual Pentium III single-board CPU card running at 1 GHz with 512 MB of RAM, backed by a BP8/12T-ISA/PCI backplane that provides an unusually large pool of 12 PCI and 8 ISA expansion slots — making it suited for applications requiring many simultaneous I/O or control cards. The chassis includes a lockable front door with a pull-out access shelf, a hot-swap SCSI bay, and front-panel USB access.
Specifications & What's Included
- Model: SBS Y8373950
- Form Factor: 5U rackmount chassis with rack ears
- CPU Board: Texas Micro 92-005891-XXX Rev M-08 — Dual Intel Pentium III 1 GHz
- Memory: 512 MB RAM

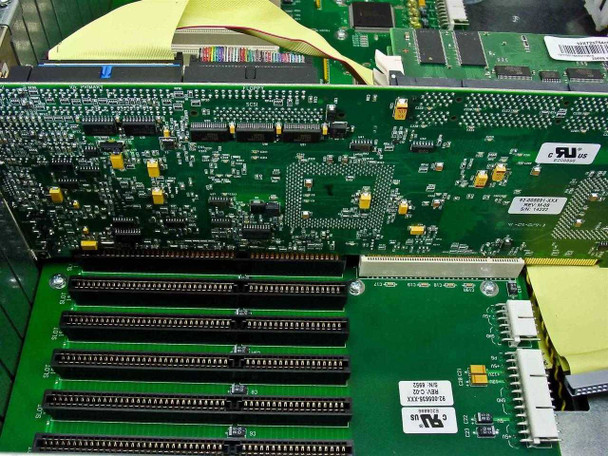

- Backplane: BP8/12T-ISA/PCI, part number 92-005635-XXX
- PCI Expansion Slots: 12
- ISA Expansion Slots: 8
- Total Expansion Slots: 20
- Hard Drives: 3x Seagate ST373207LC — 73 GB, 10,000 RPM, SCSI (Wide/Ultra)
- Hard Drive Bay: Hot-swap SCSI 3-bay enclosure with LED drive-ID display and cooling fan

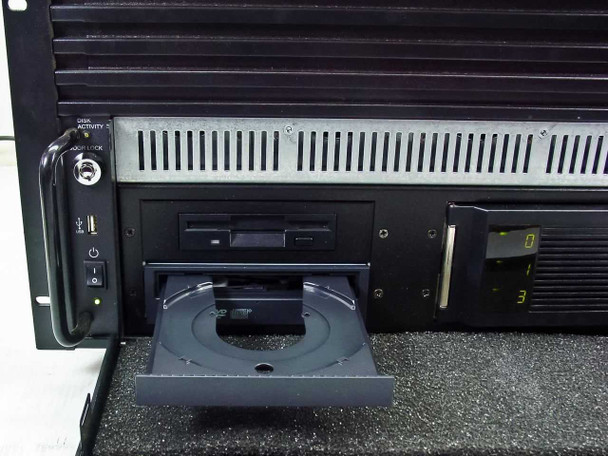

- Optical Drive: DVD-ROM / CD-RW combo drive
- Floppy Drive: 3.5" floppy disk drive

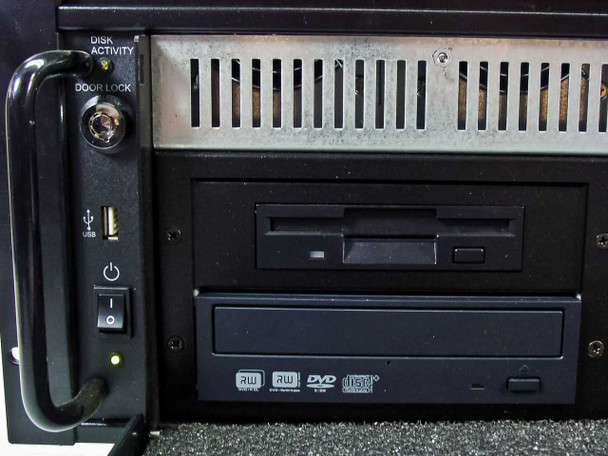

- Front Panel: Disk Activity LED, Door Lock, USB port, toggle power switch, status LEDs
- Rear: IEC AC power inlet, power switch, dual exhaust fans, backplane I/O bracket area
- One expansion card installed in backplane (DB25 + DB9 connectors visible at rear)
Applications
The SBS Y8373950 is a late-1990s/early-2000s industrial single-board computer system designed for automation, process control, data acquisition, and other mission-critical industrial computing environments. SBS Technologies (later part of Kontron) built these passive-backplane rackmount systems specifically for industrial and defense applications where long-term component availability, high slot count, and ISA bus compatibility were requirements — unlike conventional servers of the same era that had already moved away from ISA. The large backplane (12 PCI + 8 ISA) allowed integrators to populate the system with custom I/O cards, SCSI controllers, serial cards, motion control boards, and similar specialized hardware. These systems were commonly deployed in factory automation, test-and-measurement racks, machine control enclosures, and telecommunications equipment rooms. The ISA bus support made the platform backward-compatible with a wide range of industrial I/O hardware that was still ISA-based well into the 2000s. Today they are sought by legacy system maintainers and industrial facilities that need to service or replicate an original configuration.
This SBS Y8373950 industrial rackmount PC was pulled from a working operational environment where it was previously in use. It has been visually inspected and photographed. All three Seagate SCSI hard drive trays are present and loaded with drives. The floppy drive and DVD/CD-RW combo drive are visible and appear complete. The chassis shows the kind of cosmetic wear you'd expect on equipment that's seen industrial use — some scuffing on the black panels and minor surface wear, but no major damage is apparent. The system has not been powered up or bench-tested at our facility. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
SBS Technologies (Single Board Systems) |
Model: |
Y8373950 |
MPN: |
Y8373950 |
SKU: |
44528 |
Type: |
Industrial Rackmount Computer / Single Board System |
Form Factor: |
5U Rackmount |
Processor: |
2x Intel Pentium III 1 GHz |
Number of Processors: |
2 (Dual) |
Memory: |
512 MB |
Hard Drive: |
3x Seagate ST373207LC 73GB 10K RPM SCSI |
Hard Drive Interface: |
SCSI (Ultra320 / Wide SCSI) |
Hard Drive Bays: |
3 (hot-swap SCSI bay) |
Optical Drive: |
DVD-ROM / CD-RW Combo Drive |
Floppy Drive: |
3.5" Floppy Drive |
CPU Board: |
Texas Micro 92-005891-XXX Rev M-08 Pentium III |
Backplane: |
BP8/12T-ISA/PCI, P/N 92-005635-XXX |
PCI Slots: |
12 |
ISA Slots: |
8 |
Total Expansion Slots: |
20 (12 PCI + 8 ISA) |
Seller Notes: |
System only — no OS media, no keyboard or monitor included |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This SBS Y8373950 industrial rackmount PC was pulled from a working environment. Not bench-tested at our facility. Cosmetic wear consistent with prior use. All drives and optical media present. Please contact us with any questions. |
