Sandex

Sandex 11FU Rotary Indexing Oscillating Drive Parts Handler 11FU-31469R-L1A1/X

(No reviews yet) Write a Review
SKU:
47172
MPN:
11FU
Condition:
Used
Availability:
Usually ships within 1-2 business days; freight shipment required due to size and weight.
Weight:
175.00 LBS
Shipping:
Calculated at Checkout

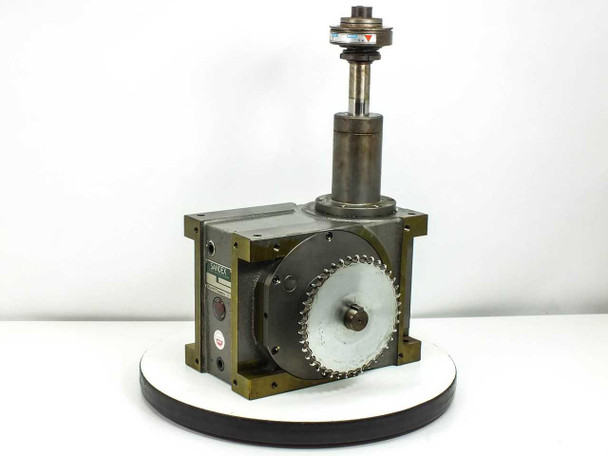

  • Sandex 11FU Rotary Indexing Oscillating Drive front-left view showing roller gear cam output wheel and vertical shaft assembly

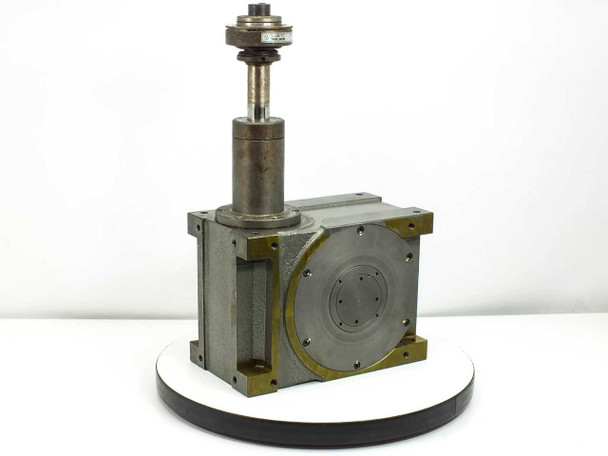

  • Sandex 11FU Rotary Indexing Drive rear-right view showing circular output flange face and mounting bolt pattern

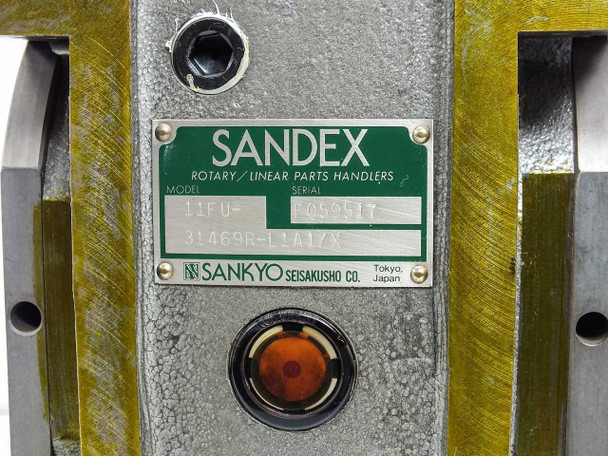

  • Sandex 11FU nameplate closeup showing model 11FU-31469R-L1A1/X, serial number, and Sankyo Seisakusho Tokyo Japan label
  • Sandex 11FU vertical output shaft assembly with Sankyo torque limiter mounted on top of unit
  • Sankyo Torque Limiter model 61G-3C label closeup showing brand and model marking on limiter body
  • Sankyo Torque Limiter serial number label closeup on torque limiter assembly
  • Sandex 11FU front face closeup showing large-diameter toothed roller gear cam output wheel and central hub
  • Sandex 11FU rear output flange face showing bolt-circle pattern and machined circular flange surface
$700.00
Was: $1,400.00
Current Stock: 2

Sold Out

Description

Sandex 11FU Rotary Indexing Oscillating Drive Parts Handler 11FU-31469R-L1A1/X

Rotary indexing and oscillating drive unit designed for automated parts handling and positioning in industrial assembly systems. Features a large diameter roller gear cam with groove cam face and integrated Sankyo torque limiter for controlled output motion.

Specifications & What's Included

  • Brand: Sandex / Sankyo Seisakusho
  • Model: 11FU (MPN: 11FU-31469R-L1A1/X)
  • Motion Type: Oscillating / Rotary Indexing
  • Cam Type: Large Diameter Roller Gear Cam with Groove Cam Face
  • Torque Limiter: Sankyo Model 61G-3C (integrated)
  • Output: Vertical shaft with circular bolt-pattern flange (rear face)
  • Dimensions: 21 in L x 12 in W x 10 in H (approximate)
  • Manufactured: Japan
  • Motor: Not included

Applications

Rotary indexing drives are used in high-speed automated assembly lines, packaging equipment, and parts transfer systems to provide precise, repeating rotational and oscillating motion. Common in automotive, electronics, and manufacturing environments where synchronized positioning and indexing are required. Compatible with standard industrial motor couplings and mounting configurations.

Condition: Used
This Sandex 11FU Rotary Indexing Oscillating Drive (11FU-31469R-L1A1/X) has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The cast body and brass mounting faces show typical industrial use wear, and the torque limiter body shows some surface oxidation and minor grime consistent with shop use — all normal for a working drive of this type. The toothed roller gear cam output wheel and output flange appear intact with no visible damage. Due to its size and weight, this unit will require freight shipment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sandex / Sankyo Seisakusho
Model:
11FU
MPN:
11FU-31469R-L1A1/X
Secondary Model:
11FU-31469R-L1A1/X
Type:
Rotary Indexing Oscillating Drive / Parts Handler
SKU:
47172
Seller Notes:
Includes integrated Sankyo torque limiter (model 61G-3C); unit only, no motor included.
Country/Region of Manufacture:
Japan
Cam Type:
Large Diameter Roller Gear Cam with Groove Cam Face
Motion Type:
Oscillating / Rotary Indexing
Torque Limiter:
Sankyo Torque Limiter, Model 61G-3C
Output Flange:
Circular bolt-pattern output flange, rear face
Drive Shaft:
Vertical output shaft with Sankyo torque limiter assembly
Dimensions:
21 in x 12 in x 10 in (L x W x H, approximate)
Form Factor:
Freestanding / Mountable Industrial Unit
Condition Notes:
Sandex 11FU Rotary Indexing Oscillating Drive (11FU-31469R-L1A1/X) inspected, good used condition. Pulled from working environment. Shows normal industrial wear. Freight shipment required. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

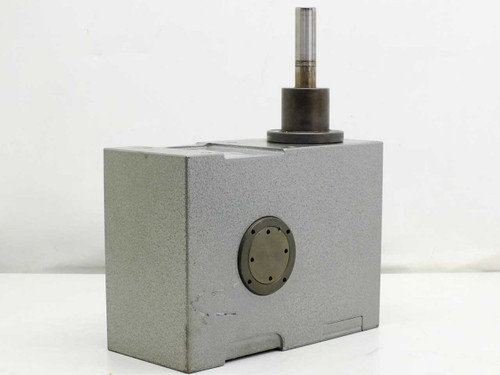

Sandex 10FN Rotary Linear Parts Handler Indexing Drive — right-side view showing drive sprocket and vertical output shaft Sandex 10FN Indexing Drive — left-side view showing circular flange face and vertical output shaft
