Description
Samsung SM-348 48x24x48 Internal CD-RW/DVD Combo Drive IDE ATAPI Black Bezel
The Samsung SM-348 is a 5.25-inch half-height internal CD-RW/DVD combo drive using an IDE/ATAPI interface. It writes CD-R discs at 48x speed, rewrites CD-RW discs at 24x, reads CD-ROM at 48x, and also reads DVD discs, making it a versatile single-drive solution for optical media tasks. The black bezel matches standard desktop tower form factors from the early-to-mid 2000s era.
Specifications & What's Included
- Model: Samsung SM-348 (SM-348B/DWR)
- Type: Internal CD-RW/DVD Combo Drive

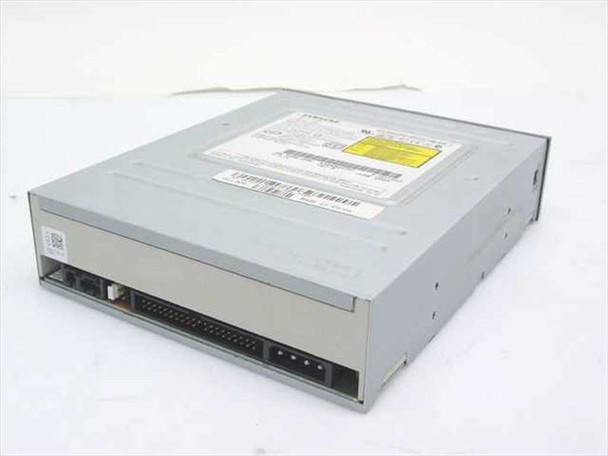

- Interface: IDE/ATAPI (40-pin ribbon connector)
- Form Factor: 5.25-inch half-height internal
- CD-R Write Speed: 48x
- CD-RW Rewrite Speed: 24x
- CD-ROM Read Speed: 48x
- DVD Read: Yes (combo drive)
- Power: 5V DC @ 1.2A, 12V DC @ 1.5A (4-pin Molex)
- Bezel Color: Black
- Hardware Revision: A, Firmware Ver. B
- Manufactured: June 2003, South Korea
- Compatible With: Dell Optiplex GX270 (and other IDE-equipped desktop systems)
- Drive only — no cables or software included
Applications
The SM-348 is a mid-2000s IDE/ATAPI optical combo drive of the type widely used in desktop PCs during the period when IDE was the dominant storage interface before SATA took over. These drives handled both CD burning and DVD playback in a single bay, making them a cost-effective choice for desktops built between roughly 2001 and 2006. The SM-348 is confirmed compatible with the Dell Optiplex GX270 and is a suitable replacement for other IDE-based desktop systems from the same era, including many HP, Compaq, and generic ATX tower builds that used a 5.25-inch half-height bay and a standard 40-pin IDE connector. Today these drives are primarily used as spare or replacement parts for legacy systems still in service, retro PC builds, and older embedded computing platforms that require IDE optical drives.
This Samsung SM-348 internal CD-RW/DVD combo drive has been visually inspected and appears to be in good used condition. The existing description notes it as compatible with the Dell Optiplex GX270. The drive shows normal cosmetic wear consistent with previous use, including light scuffing on the top of the chassis and label. The black bezel and tray mechanism appear intact with no cracks or missing parts visible. It has not been powered up or tested at our facility, but it was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Samsung |
Model: |
SM-348 |
MPN: |
SM-348B/DWR |
Type: |
Internal CD-RW/DVD Combo Drive |
SKU: |
31794 |
Interface: |
IDE/ATAPI |
Form Factor: |
5.25" Half-Height Internal |
Write Speed (CD-R): |
48x |
Rewrite Speed (CD-RW): |
24x |
Read Speed (CD-ROM): |
48x |
DVD Read Speed: |
Included (DVD-ROM combo) |
Bezel Color: |
Black |
Power Requirements: |
5V DC 1.2A, 12V DC 1.5A |
Hardware Revision: |
A |
Compatible With: |
Dell Optiplex GX270 |
Country/Region of Manufacture: |
South Korea |
Connector Type: |
40-pin IDE, 4-pin Molex power |
Condition Notes: |
This Samsung SM-348 CD-RW/DVD combo drive has been visually inspected and is in good used condition. Not tested at our facility but pulled from a working environment. Compatible with Dell Optiplex GX270. Please contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
