Sailor

Sailor OE-2413 Robot Arm Injection Molder Sprue Picker 3PH 480V 5A 1999

(No reviews yet) Write a Review
SKU:
45584
MPN:
OE-2413
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
130.00 LBS
Shipping:
Calculated at Checkout

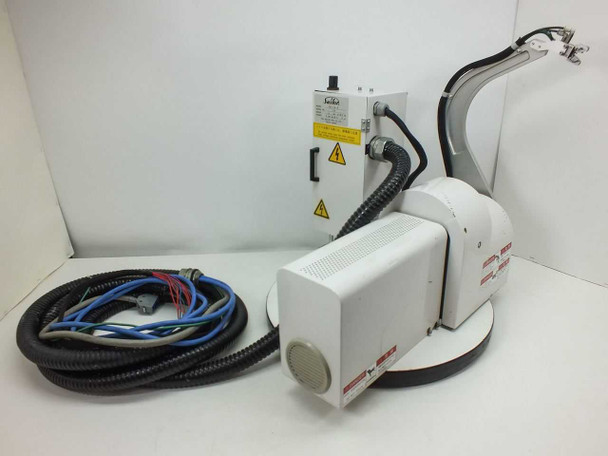

  • Sailor OE-2413 injection molder robot arm — full unit with wiring harness and control box, front-left view
  • Sailor OE-2413 robot arm — right side view showing DANGER label, control enclosure, and pneumatic fittings
  • Sailor OE-2413 control box close-up — SMC pressure gauge (Sprue Grip), DP2-20 digital pressure switch, and Disc Detect VS B label
  • Sailor OE-2413 rating plate — Model OE-2413, Serial No. 03, Manuf. 11/1999, Power 3PH 480V 5A, The Sailor Pen Co. Ltd. Tokyo Japan
  • Sailor OE-2413 interior — control box open showing pneumatic valves, wiring, and internal components
  • Sailor OE-2413 sprue gripper head — close-up of pneumatic gripper with suction cups and pneumatic fittings, front angle

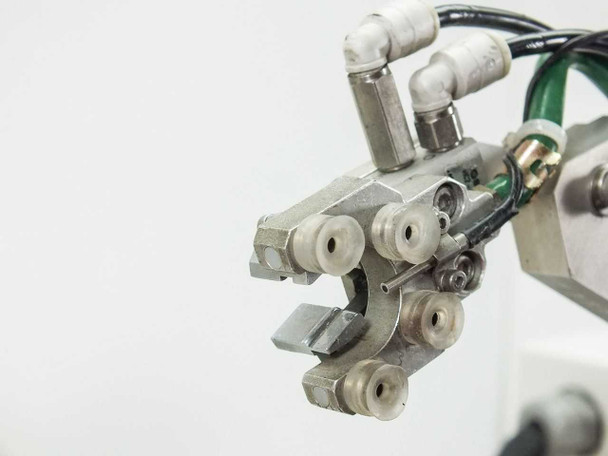

  • Sailor OE-2413 sprue gripper head — close-up of gripper jaw mechanism with suction cups, side angle
  • Sailor OE-2413 base — pneumatic fitting and blue air line connection at the base of the control enclosure

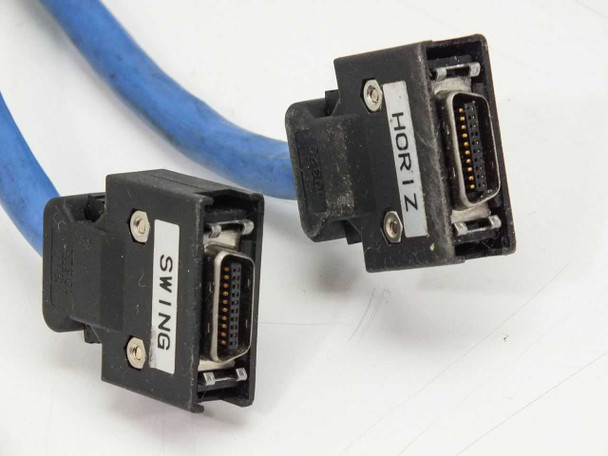

  • Sailor OE-2413 wiring harness — blue cable with two labeled connectors: SWING and HORIZ
  • Sailor OE-2413 HORIZ connector — close-up of multi-pin connector end labeled HONDA on housing
$550.00
Was: $1,100.00
Current Stock: 1

Sold Out

Description

Sailor OE-2413 Robot Arm Injection Molder Sprue Picker 3PH 480V 5A 1999

Pneumatic robot arm designed for automated sprue and runner removal from injection molds. Built by Sailor (The Sailor Pen Co., Ltd., Tokyo) in 1999, this unit was pulled from a working plastic injection molding operation.

Specifications & What's Included

  • Model: OE-2413
  • Power: 3-Phase 480V, 5A
  • Gripper Type: Pneumatic sprue gripper with SMC 0–1 MPa analog pressure gauge
  • Pressure Controller: SMC DP2-20 digital pressure switch
  • Connectors: SWING and HORIZ labeled multi-conductor wiring harness included
  • Compatible with: Meike plastic injection molders

Applications

Robotic sprue pickers automate the removal of sprues and runners from molded parts, increasing production throughput and reducing manual labor. This Sailor arm was used in high-volume injection molding operations where consistent, repetitive part extraction is required. The pneumatic gripper and digital control system allow for programmable cycle times and grip pressure adjustment across different mold cavities and part geometries.

Condition: Used
This Sailor OE-2413 injection molder robot arm was pulled from a working plastic injection molder and appears to be in good used condition. The white painted housing shows light surface wear consistent with production use, and the arm structure and control enclosure look intact with no visible cracks or damage. The pneumatic sprue gripper head with suction cups and the SMC pressure components appear complete. The wiring harness with SWING and HORIZ labeled connectors is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sailor
Model:
OE-2413
MPN:
OE-2413
Type:
Injection Molder Robot Arm / Sprue Picker
SKU:
45584
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
Japan
Manufacturer:
The Sailor Pen Co., Ltd., Tokyo, Japan
Year of Manufacture:
1999
Power Requirements:
3PH 480V 5A
Phase:
Three Phase
Voltage Rating:
480V
Current Rating:
5A
Compatible With:
Meike Plastic Injection Molder
Application:
Sprue / runner removal from injection mold
Gripper Type:
Pneumatic sprue gripper
Pressure Gauge:
SMC 0–1 MPa analog pressure gauge (Sprue Grip)
Vacuum/Pressure Controller:
SMC DP2-20 digital pressure switch
Included Cables:
Multi-conductor wiring harness with SWING and HORIZ connectors
Connector Types:
SWING connector, HORIZ connector (labeled on cable ends)
Seller Notes:
Includes wiring harness with SWING and HORIZ connectors
Condition Notes:
Sailor OE-2413 injection molder robot arm pulled from a working plastic injection molder. Appears in good used condition with light surface wear. Includes wiring harness with SWING and HORIZ connectors. 3PH 480V 5A.
View AllClose

Related Products

Related Products

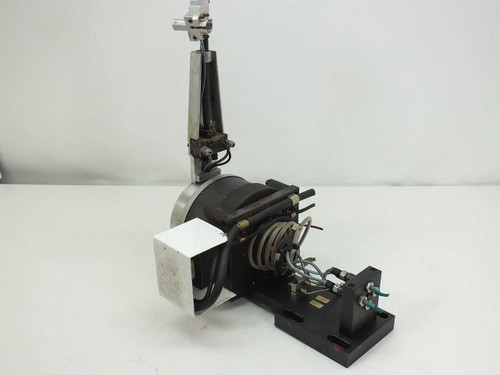

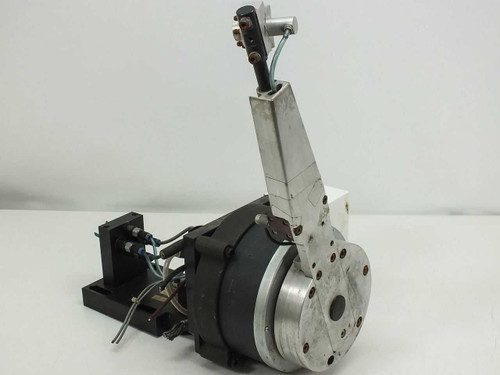

Netstal Discjet 600 robotic take-out arm – full assembly, angled front-left view showing rotary base and aluminum arm Netstal Discjet 600 take-out arm – rear-left view showing coiled wiring harness and pneumatic manifold block
