Ruud Lighting

Ruud Lighting IAR2640-2Y 400W Metal Halide 22in Prismatic Reflector 277V Pendant

(No reviews yet) Write a Review
SKU:
36344
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
60.00 LBS
Shipping:
Calculated at Checkout

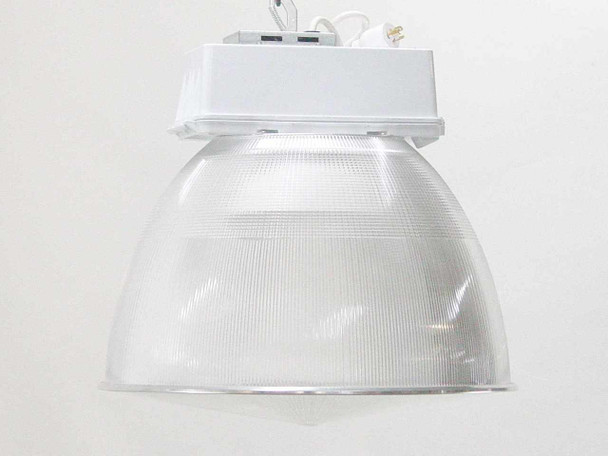

  • Ruud Lighting IAR2640-2Y HID high bay fixture — full front view showing 22-inch prismatic polycarbonate bell reflector and white ballast housing with power cord on top

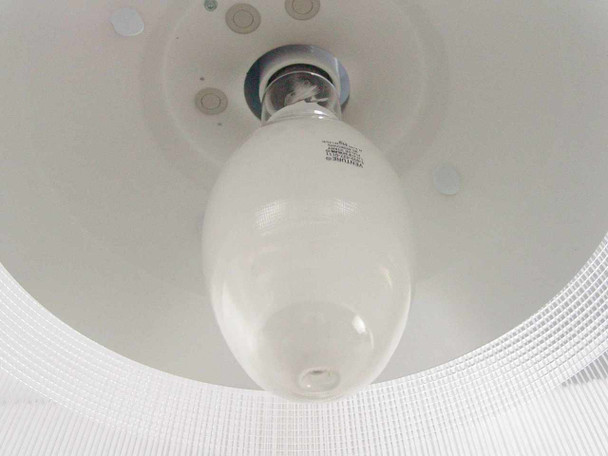

  • Interior upward view of Ruud IAR2640-2Y showing installed Venture 400W metal halide lamp in chrome socket mount inside prismatic reflector
  • Close-up of Venture MS 400W/C/IPS Pulse Start metal halide lamp base showing printed specifications and mercury content label
  • Side view of Ruud IAR2640-2Y white ballast housing showing spring-loaded pendant mounting hook, twist-lock power cord, and top of prismatic reflector
  • Close-up of 277-volt twist-lock plug with brass contacts and 15A rating markings on white connector body
  • Ruud Lighting IAR2640-2Y rating plate label showing 277V, 1.7A operating amps, 448W total watts, 400W lamp watts, 60Hz, HPF, UL Listed E84689, catalog number, and damp location rating
$100.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Ruud Lighting IAR2640-2Y 400W Metal Halide 22in Prismatic Reflector 277V Pendant

The Ruud Lighting IAR2640-2Y is a 400-watt pulse start metal halide high-bay pendant fixture from the IAR-22 Series, featuring a 22-inch prismatic polycarbonate bell reflector designed to provide wide, even light distribution in large indoor spaces. The fixture runs on 277V AC and draws 1.7 amps at operating load, with a total system wattage of 448W and a high power factor ballast. It is UL Listed for damp locations and rated for ambient temperatures up to 40°C.

Specifications & What's Included

  • Manufacturer: Ruud Lighting, Inc. — Racine, WI
  • Catalog / Model Number: IAR2640-2Y
  • Series: IAR-22 (22-inch prismatic reflector)
  • Lamp Type: Pulse Start Metal Halide
  • Lamp Wattage: 400W
  • Total System Wattage: 448W
  • Input Voltage: 277V AC
  • Operating Current: 1.7A
  • Start Current: 1.65A
  • Frequency: 60 Hz
  • Power Factor: HPF (High Power Factor)
  • Reflector Diameter: 22 inches, prismatic polycarbonate
  • Mounting Type: Pendant (spring-loaded hook)
  • Plug / Connector: 277V twist-lock
  • Location Rating: Suitable for Damp Locations
  • Ambient Temperature Rating: 40°C max
  • UL Listed — File No. E84689, Issue No. 43.200
  • Includes: Venture MS 400W/C/IPS Pulse Start metal halide lamp (installed)
  • Includes: 277V twist-lock power cord

Applications

High-bay HID pendant fixtures like the Ruud Lighting IAR-22 Series are standard equipment in large-volume commercial and industrial spaces where high ceilings (typically 20–45 feet) require powerful, focused downlighting. Common installations include warehouses, distribution centers, manufacturing floors, gymnasiums, and big-box retail spaces. The 400-watt pulse start metal halide lamp type offers faster warm-up and restrike times compared to standard probe-start metal halide, making it well suited for facilities with frequent switching or where quick light recovery after a power interruption matters. The prismatic polycarbonate reflector provides broad light distribution across wide floor areas. This fixture type was widely deployed from the 1990s through the 2000s and remains in service in many facilities, though LED high-bay replacements have become increasingly common in new installations.

Condition: For Parts or Not Working
This Ruud Lighting IAR2640-2Y 400W Metal Halide High Bay Fixture is being sold AS-IS for parts or repair. It has not been tested or powered at our facility, and no functionality is guaranteed. The fixture includes the Venture 400W pulse start metal halide lamp and 277V twist-lock power cord. Cosmetic condition appears reasonable in photos — please review our full photo set carefully before purchasing. Contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Ruud Lighting
Model:
IAR2640-2Y
MPN:
IAR2640-2Y
Type:
HID High Bay Pendant Light Fixture
SKU:
36344
Series:
IAR-22
Lamp Type:
Pulse Start Metal Halide
Lamp Wattage:
400W
Total Wattage:
448W
Input Voltage:
277V AC
Operating Current:
1.7A
Frequency:
60 Hz
Power Factor:
HPF (High Power Factor)
Reflector Diameter:
22 in
Reflector Material:
Prismatic Polycarbonate
Mounting Type:
Pendant
Plug Type:
277V Twist-Lock
Location Rating:
Suitable for Damp Locations
Ambient Temperature Rating:
40°C
UL File Number:
E84689
Certifications:
UL Listed
UL Issue Number:
43.200
Included Lamp:
Venture MS 400W/C/IPS Pulse Start
Country/Region of Manufacture:
United States
Seller Notes:
Includes Venture 400W pulse start metal halide lamp and 277V twist-lock power cord.
Condition Notes:
This Ruud Lighting IAR2640-2Y 400W Metal Halide High Bay Fixture is sold AS-IS for parts or repair. It has not been tested and no functionality is guaranteed. Includes lamp and power cord. Please view photos and contact us with questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
