Ruud Lighting ICM2640 22in Medium Low Bay 240V 400W PSMH HID Fixture Cord Plug
The Ruud Lighting ICM2640 is a 22-inch medium low bay HID light fixture designed for 240V operation with a 400W pulse start metal halide (PSMH) lamp. It delivers diffuse, wide-angle light distribution across a broad footprint, making it well suited for moderate mounting heights in commercial and industrial spaces. The gear housing is die-cast aluminum with a thermal chamber that physically separates the ballast and electrical components from the lamp cavity.
Specifications & What's Included
- Catalog Number: CM2640-4
- Lamp Type: 400W Pulse Start Metal Halide (PSMH)
- Input Voltage: 240V
- Total Watts: 448W
- Start Amps: 1.80A
- Operating Amps: 1.00A
- Frequency: 50Hz
- Fixture Diameter: 22 inches
- Mounting: Hook mount (240V cord and plug configuration)

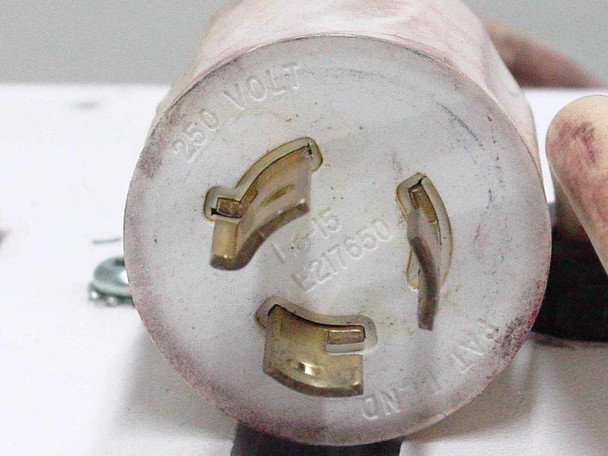

- Plug Type: 250V twist-lock (L6-15 style, 3-prong locking)
- Housing: Die-cast aluminum gear housing with integral thermal chamber
- Finish: White polyester powder coat
- Reflector: White DeltaGuard®-finished aluminum, 83% efficiency
- Refractor: High-performance acrylic panel, gasketed with breather gasket
- Ambient Temperature Rating: Suitable for 55°C ambient
- Certifications: UL Listed (ER4689)
- Includes: 400W PSMH lamp (installed), cord, and twist-lock plug
Applications
Medium low bay HID fixtures like the ICM2640 are standard equipment in warehouses, manufacturing floors, gymnasiums, retail spaces, and covered loading docks — anywhere with mounting heights roughly in the 15- to 25-foot range where a wide, diffuse light pattern is needed without harsh direct glare. Pulse start metal halide lamps were a significant step forward from standard probe-start metal halide technology in the late 1990s and early 2000s, offering faster warm-up and restrike times, longer lamp life, and better lumen maintenance over the lamp's service life. Ruud Lighting (based in Racine, Wisconsin) produced this ICM series low bay during that same era, and fixtures like this are still commonly found in service and are fully rebulbable with current 400W PSMH lamps. The hook-mount, cord-and-plug configuration makes installation straightforward in facilities already wired for pendant-hung HID fixtures.

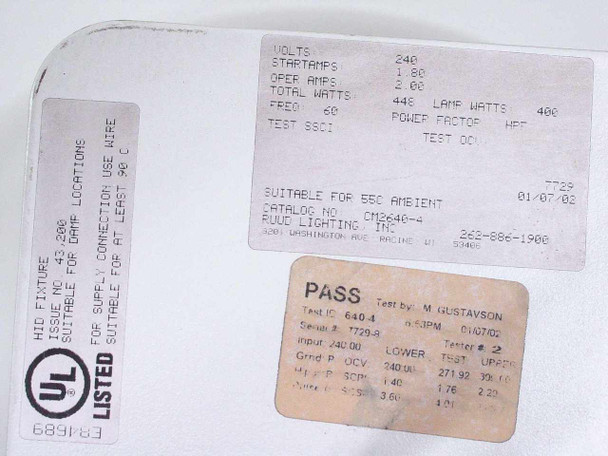

This Ruud Lighting ICM2640 22in Medium Low Bay HID fixture has been inspected and appears to be in good used condition. The white powder-coat housing and bell reflector are clean with minor surface wear consistent with prior use and storage. The acrylic refractor panel is intact and undamaged. The 400W PSMH lamp is installed and included, and the cord and twist-lock plug are present. The rating plate is legible and shows the factory PASS test sticker (dated 01/07/02). This unit has not been powered up or tested at our facility but was pulled from a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Ruud Lighting |
Model: |
ICM2640 |
MPN: |
CM2640-4 |
SKU: |
36326 |
Type: |
Medium Low Bay HID Light Fixture |
Lamp Type: |
Pulse Start Metal Halide (PSMH) |
Lamp Wattage: |
400W |
Total Watts: |
448W |
Voltage: |
240V |
Start Amps: |
1.80A |
Frequency: |
50Hz |
Fixture Diameter: |
22 inches |
Mounting Type: |
Hook Mount |
Housing Material: |
Die-Cast Aluminum |
Reflector Finish: |
White DeltaGuard Powder Coat Aluminum |
Reflector Efficiency: |
83% |
Lens / Refractor: |
High Performance Acrylic |
Ambient Temperature Rating: |
Suitable for 55°C Ambient |
Plug Type: |
250V Twist-Lock (L6-15 style) |
Cord Included: |
Yes |
Lamp Included: |
Yes — 400W PSMH |
Certifications: |
UL Listed |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes 400W PSMH lamp, cord, and plug. Hook mount hardware included. |
Condition Notes: |
This Ruud Lighting ICM2640 22in Medium Low Bay HID fixture is in good used condition with minor wear. Housing, refractor, lamp, cord, and plug are all present. Not bench-tested at our facility; pulled from a working environment. |
