Description
RUNCO WideVision Anamorphic Lens Isco IIIL 1.33X 720p 2.35:1 Motorized Sled Base
The RUNCO WideVision Cinema Grade Anamorphic Lens is a high-end optical attachment designed to stretch a standard 16:9 projector image horizontally into the 2.35:1 CinemaScope widescreen format. The optical element is a Isco IIIL 1.33X anamorphic lens — a German-made optic from Isco-Optic (Schneider) widely regarded as one of the best anamorphic attachments available for home theater use. The lens mounts to a motorized linear sled base that slides the lens in and out of the projector's light path, allowing the viewer to switch between 16:9 and 2.35:1 presentations without physically touching the setup.
Specifications & What's Included
- Brand: RUNCO WideVision
- Optical element: Isco IIIL 1.33X anamorphic lens
- Aspect ratio: 2.35:1 (CinemaScope widescreen)

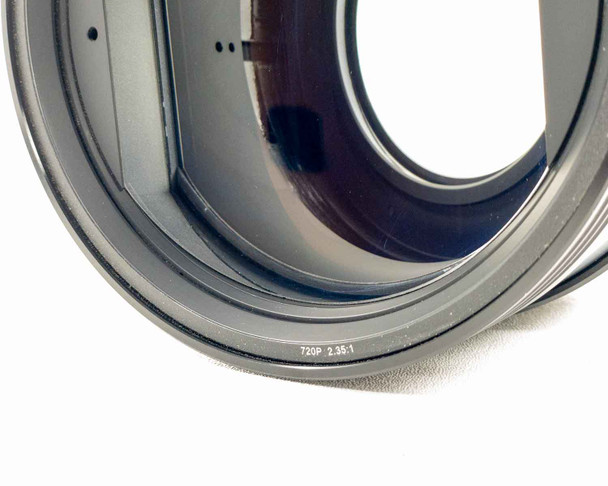

- Compatible resolution: 720p
- Mount: 4-1/4 inch screw mount
- Motorized sled base: linear rail system with motor-driven sliding platform
- Motor: Model T, P/N 2602-014 — 30 RPM, 7W, 115V 60Hz (Emerson)

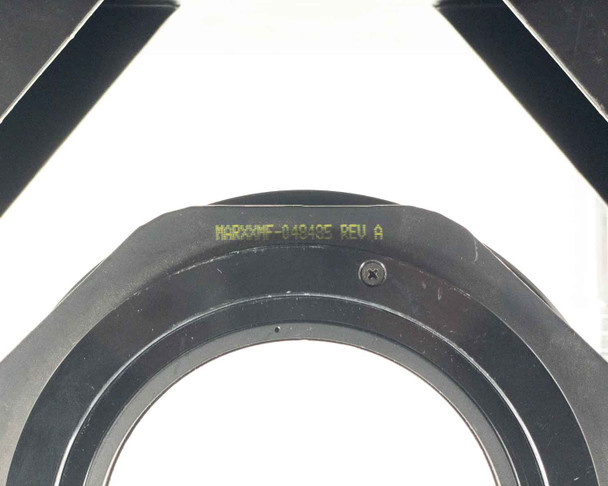

- Sled base part number: MARXXMF-040485 REV A

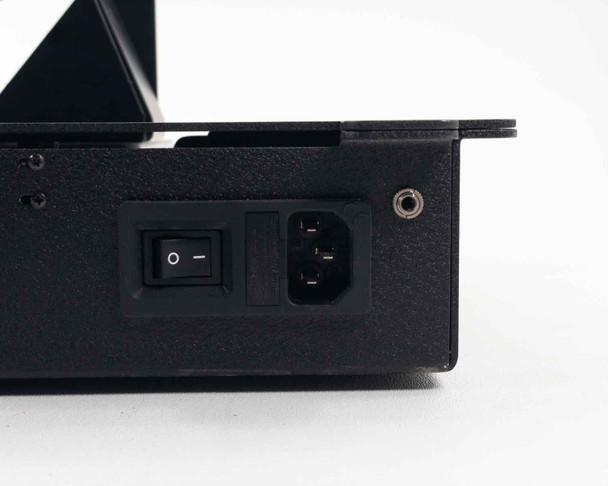

- Sled base rear panel: rocker power switch, IEC C14 power inlet, auxiliary connector port
- Motor behavior: drives sled in one direction; movable plate must be manually reset when it reaches the end of travel
- Included: front lens cap, rear lens cap, padded aluminum carry case
- Compatible with RUNCO LS-12d 3D Home Theater Projector
Applications
Anamorphic lens attachments like this RUNCO WideVision system are used in dedicated home theater rooms where the screen has a 2.35:1 (CinemaScope) aspect ratio. Rather than projecting a 16:9 image with black bars at top and bottom to fill a 2.35:1 screen, an anamorphic lens stretches the full projected image horizontally to fill the wider screen — utilizing the entire pixel array of the projector and producing a brighter, higher-resolution image than letterboxing allows. The Isco IIIL is a 1.33X anamorphic lens made in Germany by Isco-Optic (a division of Schneider Kreuznach), and was one of the most respected anamorphic attachments in the enthusiast home theater market in the late 2000s and early 2010s when 720p and 1080p home theater projectors were becoming common. The motorized sled automates the lens movement so the user can switch aspect ratios via a remote or projector trigger, which is the standard method in a proper two-lens or anamorphic home theater setup. RUNCO International was a California-based manufacturer of premium home theater projectors and display systems; their WideVision line was developed specifically to pair with their high-end projector models for full CinemaScope performance.
This RUNCO WideVision Cinema Grade Anamorphic Lens with Isco IIIL 1.33X has been tested and is in working order. The motorized sled base is functional — the motor runs and moves the lens when powered. Note: the motor drives the sled in one direction only; when the movable plate reaches the end of its travel, it must be manually reset to the start position. The lens glass appears clean with no visible chips or haze. The aluminum carry case, front lens cap, and rear lens cap are all included. The base and lens body show light handling wear consistent with prior professional use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Runco |
Model: |
WideVision Cinema Grade Anamorphic Lens |
MPN: |
MARXXMF-040485 |
Secondary Model: |
Isco IIIL |
Type: |
Anamorphic Projector Lens with Motorized Sled |
SKU: |
53106 |
Aspect Ratio: |
2.35:1 |
Anamorphic Magnification: |
1.33X |
Compatible Resolution: |
720p |
Lens Brand/Optics: |
Isco IIIL |
Mount Type: |
4-1/4 inch screw mount |
Motorized Base: |
Yes — motorized linear sled with IEC power inlet |
Motor Power: |
115V 60Hz, 7W, 30 RPM |
Motor Part Number: |
2602-014 |
Sled/Base Part Number: |
MARXXMF-040485 REV A |
Compatible With: |
RUNCO LS-12d 3D Home Theater Projector |
Included Accessories: |
Front lens cap, rear lens cap, padded aluminum carry case |
Form Factor: |
Standalone lens with motorized sliding base |
Country/Region of Manufacture: |
Germany (Isco optics) |
Seller Notes: |
Includes front and rear lens caps, padded aluminum carry case, and motorized sled base. |
Condition Notes: |
RUNCO WideVision Anamorphic Lens w/ Isco IIIL 1.33X tested and working. Motor functional, moves when powered. Moves one direction only — plate must be manually reset at end of travel. Lens glass clean. Includes caps and carry case. |
