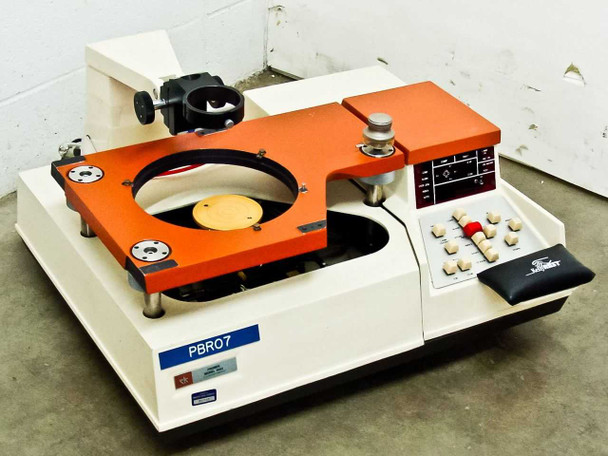

Rucker & Kolls 1032 Xynetics Stepping Wafer Prober No Scope 9.75in Stage 110V
The Rucker & Kolls Model 1032 is a stepping wafer prober manufactured by Xynetics (a Rucker & Kolls company). This unit powers on and the stage responds to LOAD and ALIGN button commands, but it has not been fully tested at our facility and should not be considered turn-key — it may require additional components, probe cards, or technician setup to return to full production use. No microscope is included; the Olympus Japan mount bracket is present and attached.
Specifications & What's Included

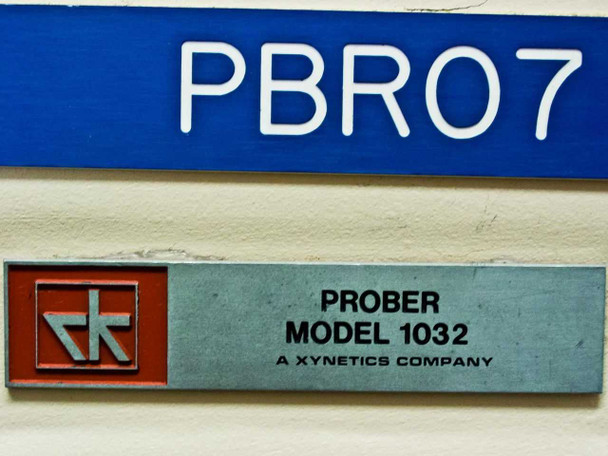

- Manufacturer: Rucker & Kolls (A Xynetics Company)
- Model: 1032

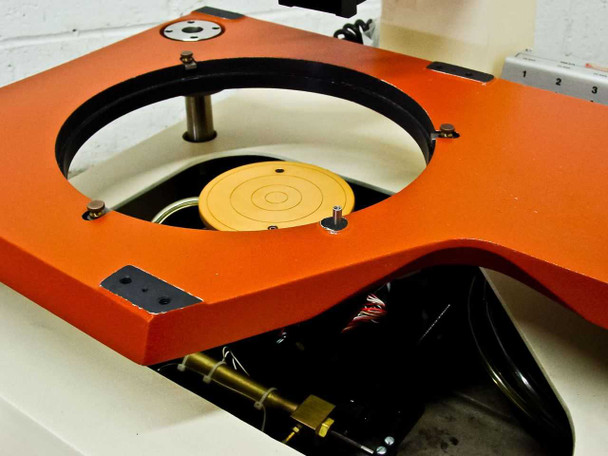

- Stage opening diameter: 9.75 inches
- Pneumatic vacuum chuck diameter: 4.5 inches
- Microscope mount holder diameter: 3 inches (standard size)
- Overall dimensions: approximately 29" × 29" × 16" tall

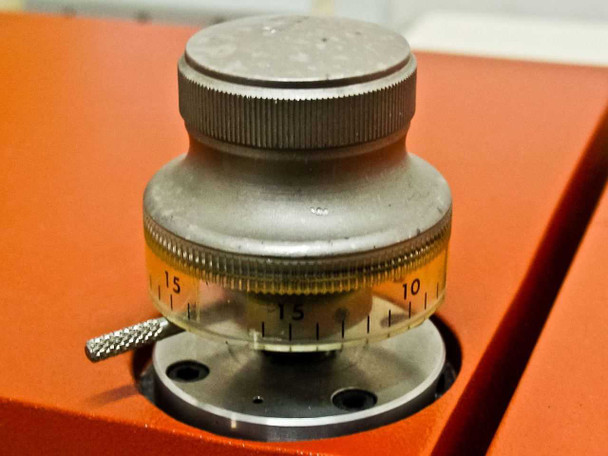

- Chuck motion axes: X, Y, Z, and Theta (CW/CCW rotation)
- Power: 110V AC; Illuminator circuit: 110VAC / 1A; main AC select: 3A or 6A

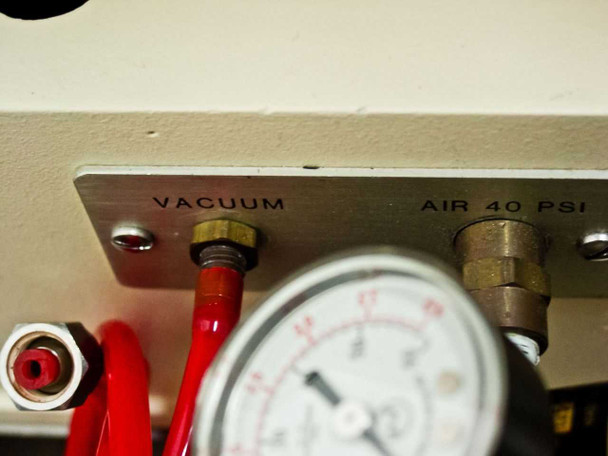

- Air supply requirement: 40 PSI
- Pneumatic regulator: Norgren B02-102M — Inlet 150 PSIG, Outlet 50 PSIG
- Front keypad controls: VAC, LOAD, ALIGN, LAMP OVERRIDE, STOP/JOG (red), INDEX, START, Z-AXIS, THETA CW/CCW, directional jog (X+/X−/Y+/Y−)
- Status indicators: COMP, FAULT, LAMP ON, VAC ON, ON WAFER, TEST

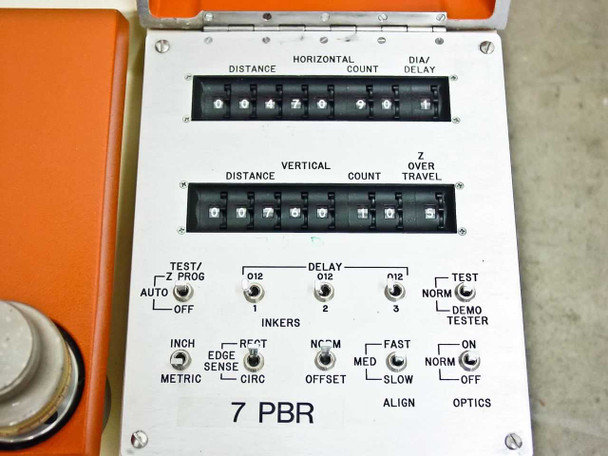

- Parameter panel (7 PBR): thumbwheel switches for Horizontal Distance/Count/DIA-Delay, Vertical Distance/Count, Z Over Travel; INCH/METRIC select; EDGE SENSE, ALIGN, OPTICS, and TEST/PROG mode switches

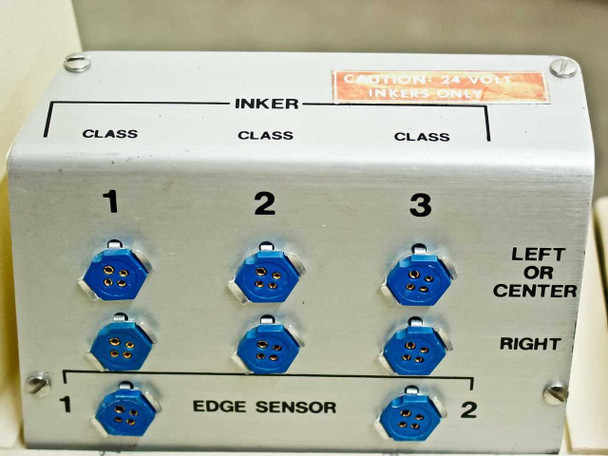

- Inker panel: 3 CLASS inker connectors (24V DC inkers only), 2 Edge Sensor ports; LEFT/CENTER and RIGHT position options
- Rear panel: IEC AC power inlet, Illuminator XLR-style connector, AC SELECT switch, ON/OFF toggle, TESTER edge connector port

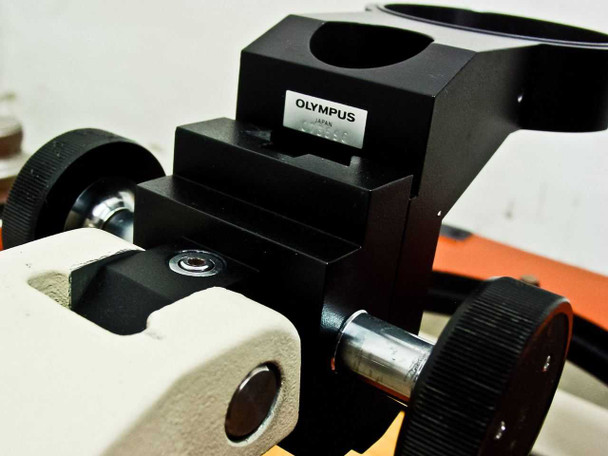

- Microscope: NOT included — Olympus Japan mount bracket present, no scope body

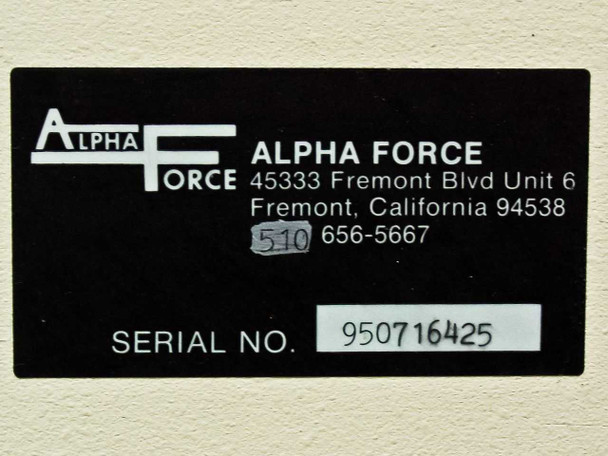

- Integrated by Alpha Force, Fremont, CA
- Requires freight shipment or local pickup — cannot ship parcel
Applications
Stepping wafer probers like the Rucker & Kolls 1032 are used in semiconductor fabrication and wafer-level electrical testing. The prober positions a wafer on a vacuum chuck and steps it die-by-die under a probe card, allowing a tester to make electrical contact with individual die across the wafer without dicing. This class of prober was a mainstay of 1980s and early 1990s semiconductor production lines and R&D labs, used to perform parametric testing, continuity checks, and functional die screening before packaging. The 1032 supports inker systems that physically mark failing die for visual reference during subsequent sort operations. These probers are still sought after for small-volume production, university semiconductor labs, failure analysis, and R&D environments where older process nodes or lower wafer volumes don't justify modern fully-automated prober capital. The unit accepts a standard 3-inch microscope mount, compatible with Olympus and other common inspection microscopes used in wafer probing stations of this era.

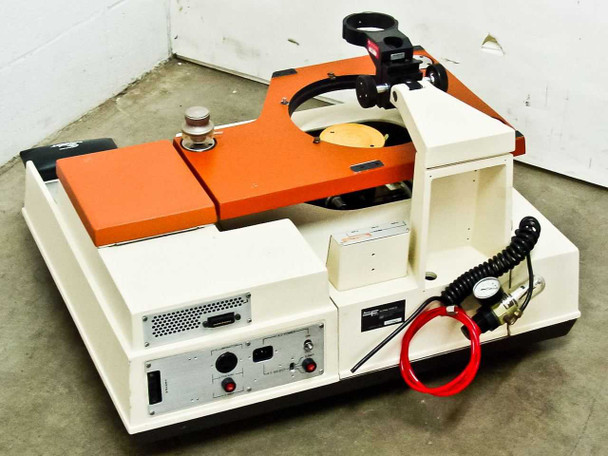

This Rucker & Kolls Model 1032 (Xynetics) Stepping Wafer Prober has been inspected and appears to be in good cosmetic condition. It powers on and the stage moves when the LOAD and ALIGN buttons are pressed. We are not able to fully test it here, so it should not be considered turn-key — it may require additional components, probe cards, or setup to return to full operation. The unit has no microscope; the Olympus Japan mount bracket is present but no scope body is included. The orange stage, vacuum chuck, pneumatic system, inker panel, and 7 PBR parameter panel all appear complete and intact. This unit requires freight shipment or local pickup — it cannot ship parcel. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Rucker & Kolls |
Model: |
1032 |
MPN: |
1032 |
Secondary Model: |
Xynetics 1032 |
Type: |
Stepping Wafer Prober |
SKU: |
42467 |
Manufacturer / OEM: |
Rucker & Kolls (A Xynetics Company) |
Integrator / Refurbisher: |
Alpha Force, Fremont, CA |
Seller Notes: |
No microscope. Includes Olympus scope mount bracket, pneumatic hose, inker connector panel, and 7 PBR parameter panel. |
Stage Opening Diameter: |
9.75 inches |
Pneumatic Chuck Diameter: |
4.5 inches |
Microscope Mount Holder Diameter: |
3 inches (standard size) |
Microscope Included: |
No — Olympus mount bracket present, no scope body |
Microscope Mount Brand: |
Olympus (Japan) |
Power Requirements: |
110V AC; Illuminator: 110VAC / 1A; AC Select: 3A or 6A |
Air Supply Requirement: |
40 PSI (AIR 40 PSI per panel label) |
Pneumatic Regulator: |
Norgren B02-102M; Inlet 150 PSIG, Outlet 50 PSIG |
Overall Dimensions: |
29" x 29" x 16" H (approximate) |
Chuck Motion Axes: |
X, Y, Z, Theta (CW/CCW) |
Control Panel Functions: |
VAC, LOAD, ALIGN, STOP/JOG, INDEX, START, Z-AXIS, THETA CW/CCW, directional jog |
Parameter Panel: |
7 PBR — Horizontal/Vertical Distance & Count thumbwheels, Z Over Travel, DIA/Delay |
Inker Connections: |
3 CLASS inker connectors (24V) + 2 Edge Sensor ports |
Indicators: |
COMP, FAULT, LAMP ON, VAC ON, ON WAFER, TEST |
Measurement System: |
Inch / Metric selectable |
Shipping Method: |
Freight shipment or local pickup required |
Country/Region of Manufacture: |
United States |
Application: |
Semiconductor wafer probing, die-level electrical testing |
Compatible With: |
Probe cards, inker systems, standard microscope mounts (3-in. holder) |
Condition Notes: |
Rucker & Kolls 1032 Xynetics Wafer Prober powers on; stage moves on LOAD/ALIGN commands. Not fully tested — may need additional components. Not turn-key. No microscope. Freight/local pickup only. |
