Rosback 880 Perfect Book Binder Adhesive Binding Machine 230V 3-Phase 24A 60Hz

Rosback 880 Perfect Book Binder Adhesive Binding Machine 230V 3-Phase 24A 60Hz

The Rosback 880 is a floor-standing hot-melt adhesive perfect binder designed for commercial and in-plant bindery operations. It applies heated EVA adhesive to book spines, producing professionally bound books in a continuous or semi-automatic process. The 880 includes an infeed cutter to trim the spine before gluing, a heated glue pot with roller application system, and a nipper assembly to press the cover onto the spine. This unit has been powered up and tested by our technician, who heated the glue pot to operating temperature and confirmed the machine responds correctly to all manual controls.

Specifications & What's Included

• Manufacturer: F.P. Rosback Company, St. Joseph, Michigan
• Model: 880 Perfect Book Binder (Adhesive Binder)
• Power: 230V, 60Hz, 3-Phase, 24A
• Maximum Book Size: 15.5 x 12 inches
• Minimum Book Size: 4 x 2.5 inches
• Maximum Book Thickness: 2 inches
• Minimum Book Thickness: 1/8 inch
• Maximum Material Removed From Spine: 5/32 inch
• Binding method: hot-melt adhesive (perfect binding)
• Infeed cutter assembly (Rosback-labeled, visible on top deck)

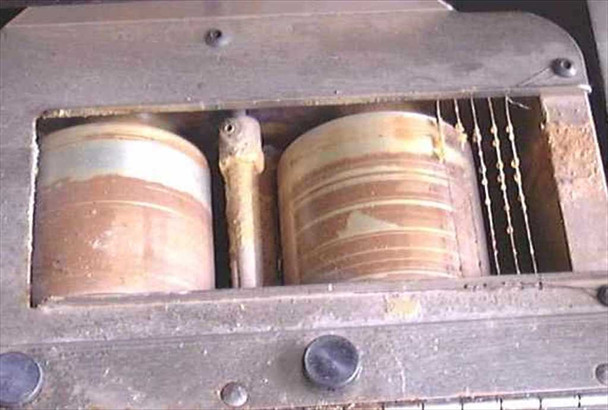

• Glue pot with diamond-mesh roller applicator and wiper string assembly
• Nipper/clamp assembly with V-guide book clamp

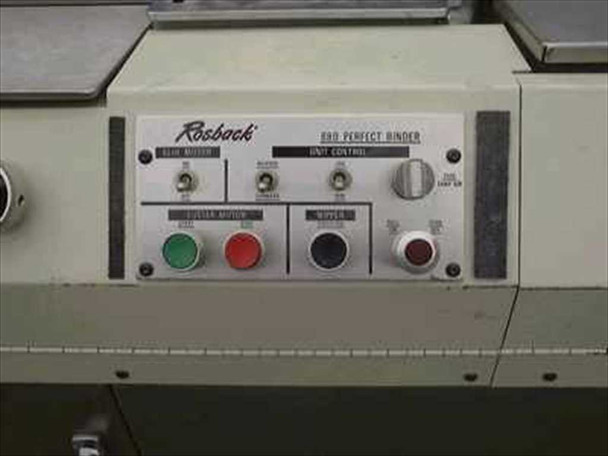

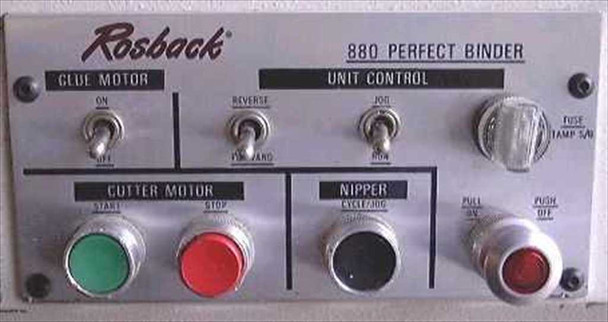

• Control panel: Glue Motor on/off, Unit Control (Reverse/Forward, Jog/Run toggles), Cutter Motor Start/Stop (green/red pushbuttons), Nipper Clamp/Release, Pull On/Push Off

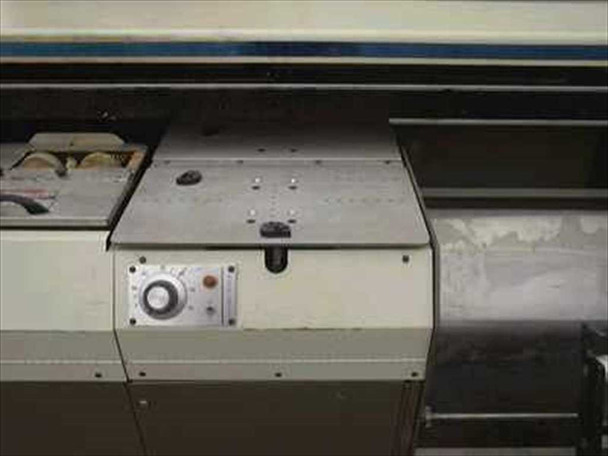

• Secondary rotary speed/temperature control sub-panel on top deck
• Output delivery tray (right-side)
• Includes: Original Rosback Model 880 Instruction Manual and Parts List
• Includes: Extra box of binding glue

Applications

Perfect binders like the Rosback 880 are used in commercial print shops, in-plant bindery departments, book manufacturers, and publishers to produce soft-cover (paperback) books, catalogs, directories, calendars, and manuals. The perfect binding process involves milling or roughing the spine of a gathered book block, applying hot-melt adhesive, and pressing a cover onto the glued spine — producing the squared-off spine characteristic of paperback books. The Rosback 880 was aimed at medium-run bindery operations requiring a self-contained machine that handles spine trimming, gluing, and cover attachment in a single pass. Rosback was a well-regarded American bindery equipment manufacturer based in St. Joseph, Michigan, whose machines were common in North American commercial print facilities from the mid-twentieth century through the 1990s. These machines remain sought-after in the secondary market for smaller binderies, in-plant operations, and print-on-demand shops that need a capable adhesive binder at a fraction of new equipment cost.
