Rockwell V1456VQH-R3 HCF PCI Modem Card 56K 80-200V23B-2 11235-14 P/N 95746977
The Rockwell V1456VQH-R3 is a Host Controlled Fax (HCF) PCI internal modem card built around Rockwell's 11235-14 controller chipset. HCF (Host Controlled Fax) modems offload signal processing to the host CPU rather than carrying a dedicated DSP on the card itself, which reduced manufacturing cost while leveraging the processing power available in late-1990s PCs. The board is marked 80-200V23B-2 and carries manufacturer part number 95746977. It is FCC-certified for home and office use (FCC ID: HBN7AL-52817-M5-E) and was manufactured in Taiwan.
Specifications & What's Included
- Model: Rockwell V1456VQH-R3

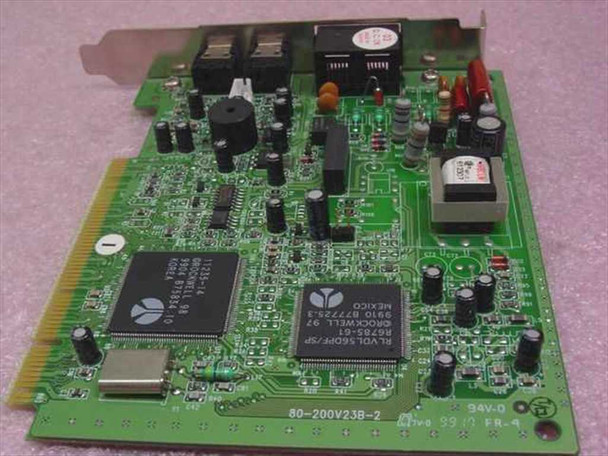

- Board Part Number: 80-200V23B-2

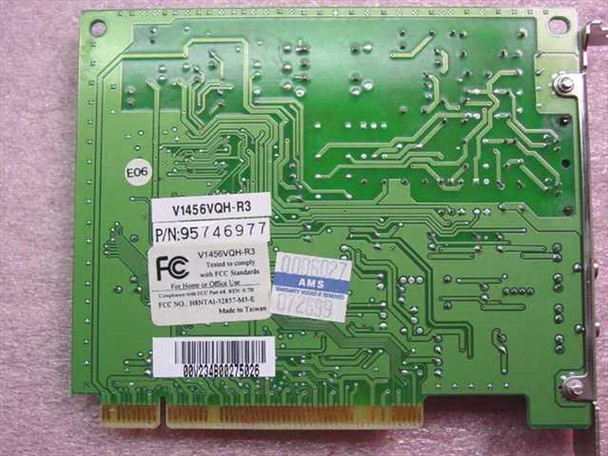

- Manufacturer Part Number (MPN): 95746977
- Main Controller Chipset: Rockwell 11235-14 (©Rockwell 98, date code 9910, made in Korea)
- Modem Type: HCF — Host Controlled Fax / Winmodem
- Modem Standard: V.90 / 56K (56 Kbps download)
- Bus Interface: PCI

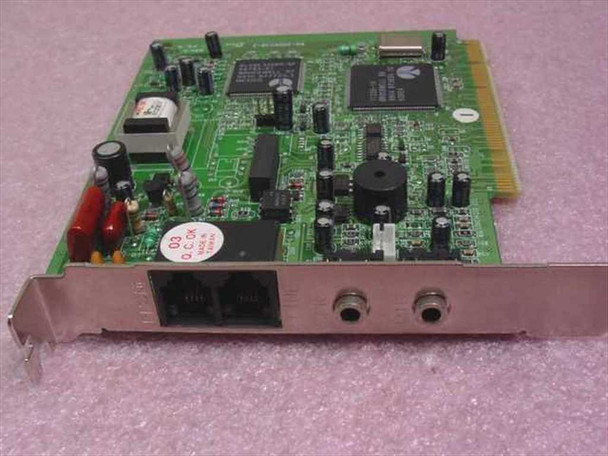

- Bracket Connectors: 2× RJ-11 phone jacks (line in / phone pass-through), 2× 3.5mm audio jacks
- FCC ID: HBN7AL-52817-M5-E
- Country of Manufacture: Taiwan
- Included: Card only — no driver CD, cables, or software
Applications
The V1456VQH-R3 is a dial-up modem card designed for installation in a standard PCI slot on a desktop PC. HCF modems of this type were widely used in the late 1990s and early 2000s as an economical way to add dial-up internet and fax capability to consumer and small-business desktop computers. Because signal processing runs in software on the host CPU, these cards require a compatible Windows driver (commonly referred to as a Winmodem driver) — they are not natively compatible with Linux without a third-party driver, and do not work in modem-pooling or dedicated dial-up server applications that require hardware modems. Typical uses included dial-up ISP connections at speeds up to 56 Kbps (V.90), fax send/receive, and dial-up BBS access. Today these cards are primarily sought for retro/vintage PC builds, legacy point-of-sale or industrial equipment that dials out via POTS lines, and systems that require a dial-up or fax modem in a PCI slot. The card dates from the late-1990s/early-2000s era of peak dial-up internet adoption, when Rockwell (later acquired by Conexant) was one of the dominant modem chipset suppliers.
This Rockwell V1456VQH-R3 HCF PCI modem card has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The card's PCB is clean with no visible damage, cracked solder joints, or broken components. The RJ-11 ports and audio jacks on the bracket show normal wear consistent with prior installation. The gold PCI edge connector is intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Rockwell |
Model: |
V1456VQH-R3 |
MPN: |
95746977 |
Secondary Model: |
80-200V23B-2 |
Type: |
HCF PCI Internal Modem Card |
SKU: |
32039 |
Chipset: |
Rockwell 11235-14 |
Modem Standard: |
V.90 / 56K |
Interface: |
PCI |
Form Factor: |
PCI Card |
Connector Type: |
RJ-11 (x2), 3.5mm audio jacks |
Number of Ports: |
2x RJ-11, 2x 3.5mm audio |
Host Controlled: |
Yes (HCF — Host Controlled Fax) |
FCC ID: |
HBN7AL-52817-M5-E |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card only; no software, cables, or accessories included. |
Compatible With: |
PCI-slot desktop PC (Windows 9x/Me/2000/XP era) |
Condition Notes: |
Rockwell V1456VQH-R3 HCF PCI 56K modem card. Inspected and in good used condition. Pulled from a working environment where it was in active use. PCB clean, connector intact, no visible damage. |
