Description

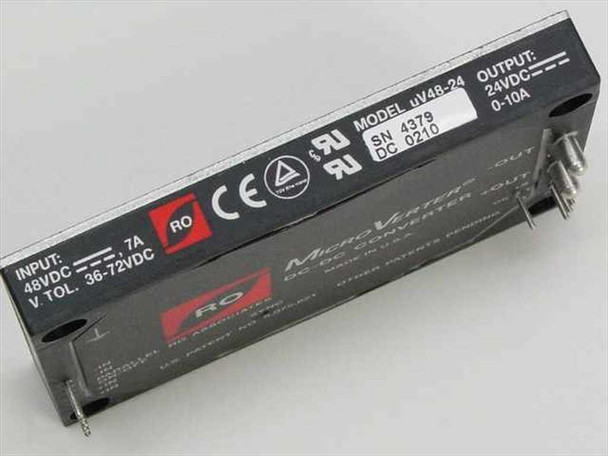

RO Associates uV48-24 MicroVerter DC-DC Converter 48VDC to 24VDC 10A 36-72V
The RO Associates uV48-24 MicroVerter is a brick-format DC-to-DC power converter that steps down a 48VDC bus to a regulated 24VDC output. It accepts a wide input voltage range of 36–72VDC, making it compatible with both nominal 48V telecom and industrial bus systems that may vary above or below the nominal rail. The output is rated at up to 10A (240W) and features sense terminals for remote output voltage sensing.
Specifications & What's Included
- Model: uV48-24
- Manufacturer: RO Associates (Made in U.S.A.)
- Conversion: DC-to-DC step-down (buck)
- Input Voltage: 48VDC nominal
- Input Voltage Range (tolerance): 36–72VDC
- Input Current: 7A (max)
- Output Voltage: 24VDC
- Output Current: 0–10A
- Output Power: 240W
- Control terminals: PARALLEL ON/OFF, SYNC
- Sense terminals: +S and –S (remote output voltage sensing)
- Input terminals: +IN, –IN (×2 each)
- Output terminals: +OUT, –OUT
- Form factor: Brick / board-mount module
- Enclosure: Black anodized aluminum case with four corner mounting screws
- Certifications: UL, CE
- Patent: U.S. Patent No. 5,075,821
- Includes: Converter module only
Applications
The uV48-24 MicroVerter is designed for use in systems powered from a 48VDC distribution bus — a standard in telecom central offices, data centers, and industrial control cabinets — where downstream loads require a regulated 24VDC supply. Typical applications include powering 24V process control equipment, industrial sensors, actuators, and automation devices fed from a 48V telecom or rectifier bus. The wide 36–72VDC input tolerance accommodates real-world bus variations, and the parallel ON/OFF control pin allows the converter to be switched on and off by an external signal, which is useful for sequencing or load-shedding in multi-rail systems. The SYNC terminal supports clock synchronization when multiple converters run in parallel to reduce EMI from intermodulation. RO Associates produced the MicroVerter series in the United States; the U.S. patent dates this design to the early 1990s, and these modules remain in use today wherever a 48V bus and 24V loads coexist.
This RO Associates uV48-24 MicroVerter DC-DC Converter is new and unused. The unit appears to be in original new condition with no signs of use or wear. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
RO Associates |
Model: |
uV48-24 |
MPN: |
uV48-24 |
Type: |
DC-DC Converter Module |
SKU: |
20894 |
Input Voltage: |
48VDC (36–72VDC tolerance) |
Input Current: |
7A |
Output Voltage: |
24VDC |
Output Current: |
0–10A |
Power Rating: |
240W |
Input Voltage Range: |
36–72VDC |
Conversion Type: |
DC to DC |
Form Factor: |
Brick / Board-Mount Module |
Features: |
Parallel ON/OFF, SYNC, +S/-S sense terminals |
Certifications: |
UL, CE |
Country/Region of Manufacture: |
United States |
Patent: |
U.S. Patent No. 5,075,821 |
Seller Notes: |
Converter module only — no external cables or mounting hardware included. |
Condition Notes: |
This RO Associates uV48-24 MicroVerter DC-DC Converter is new and unused, in original new condition with no signs of use or wear. Please contact us with any questions. |
