Description

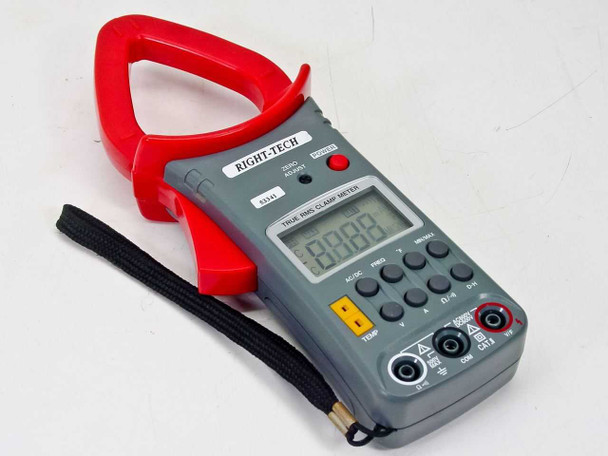

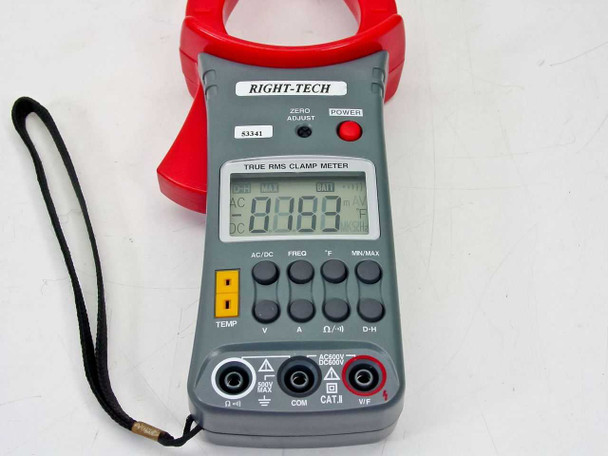

Right-Tech 53341 True RMS Clamp Meter AC/DC 600A 600V Freq Temp Resistance
The Right-Tech 53341 is a handheld True RMS clamp meter capable of measuring AC and DC current up to 600A without breaking the circuit. Its 3-3/4 digit LCD displays multiple measurement modes including voltage, resistance, frequency, and temperature, all selected through front-panel function buttons. Auto-ranging simplifies setup across measurement ranges.
Specifications & What's Included
- Model: Right-Tech 53341
- Type: True RMS Clamp Meter

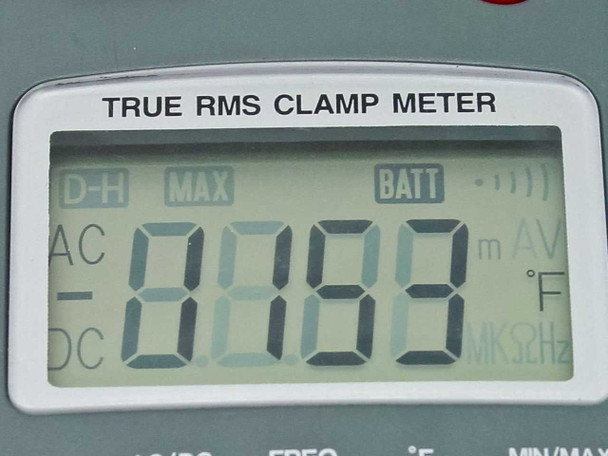

- Display: 3-3/4 Digit LCD with D-H, MAX, BATT, AC/DC, °F, MkΩHz annunciators
- AC Current: 0 to 600A (clamp jaw)
- DC Current: 0 to 600A (clamp jaw)
- AC Voltage: 0 to 600V
- DC Voltage: 0 to 600V
- Frequency: 0 to 50kHz
- Resistance: 0 to 400kΩ
- Temperature: up to 500°F (via TEMP input jack)
- Continuity: audible buzzer
- Features: Auto Ranging, Data Hold (D-H), Min/Max, Auto Power Shut-Off, Zero Adjust (front-panel trim pot)
- Safety Rating: CAT II 600V

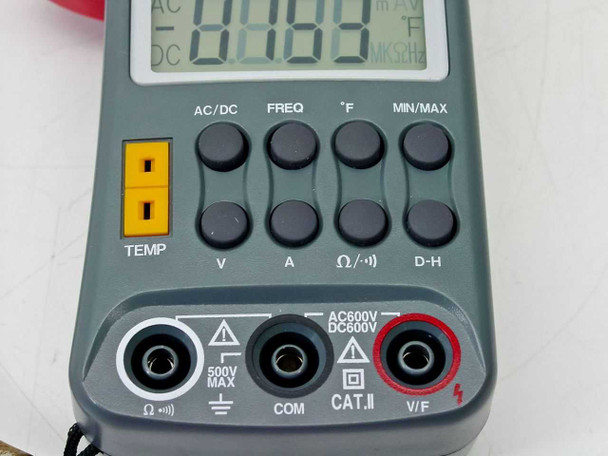

- Input Jacks: V/F (AC600V/DC600V), COM, 500V MAX (Ω/continuity), TEMP
- Power: 9V battery (not included)
- Form Factor: Handheld with wrist strap
- What's Included: Meter with wrist strap attached (9V battery and test leads not included)
Applications
True RMS clamp meters like the Right-Tech 53341 are used by electricians, HVAC technicians, industrial maintenance personnel, and electronics technicians to measure current in live conductors without disconnecting the circuit. The clamp jaw is placed around a single conductor and reads the magnetic field generated by current flow. This type of meter is commonly used for troubleshooting motors, panels, HVAC compressors, and general electrical distribution systems. The added frequency, temperature, and resistance functions make it a versatile general-purpose field instrument suitable for both AC and DC electrical measurement tasks.

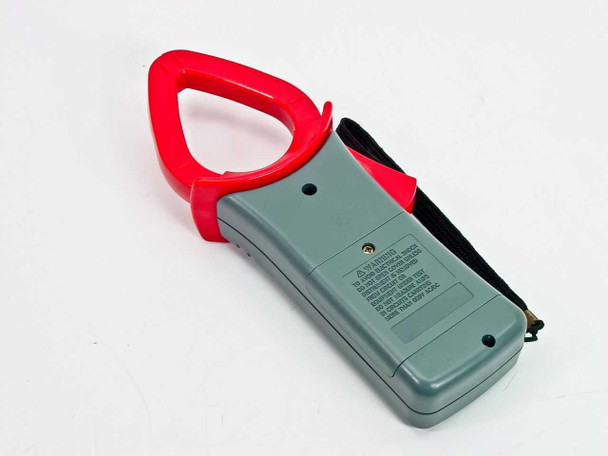

This Right-Tech 53341 True RMS Clamp Meter has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The body and jaw clamp show normal wear consistent with field use. The LCD display, keypad, and input jacks all appear clean and intact. The wrist strap is attached. A 9V battery is not included. Please view our photos and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Right-Tech |
Model: |
53341 |
MPN: |
53341 |
Type: |
True RMS Clamp Meter |
SKU: |
42718 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; 9V battery not included. Wrist strap attached. |
Form Factor: |
Handheld |
Display Type: |
3-3/4 Digit LCD |
Measurement Type: |
AC/DC Current, AC/DC Voltage, Resistance, Frequency, Temperature, Continuity |
AC Current Range: |
0 to 600A |
DC Current Range: |
0 to 600A |
AC Voltage Range: |
0 to 600V |
DC Voltage Range: |
0 to 600V |
Frequency Range: |
0 to 50kHz |
Resistance Range: |
0 to 400k Ohms |
Temperature Range: |
Up to 500°F |
Features: |
True RMS, Auto Ranging, Data Hold, Min/Max, Continuity Buzzer, Auto Power Shut-Off |
Safety Rating: |
CAT II 600V |
Input Jacks: |
AC600V/DC600V V/F, COM, 500V MAX (Ω/continuity), TEMP |
Power Requirements: |
9V battery (not included) |

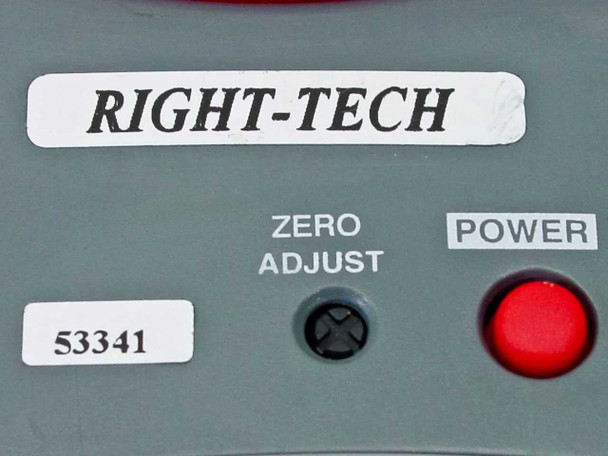

Zero Adjust: |
Yes — front-panel trim pot |
Country/Region of Manufacture: |
China |
Condition Notes: |
Right-Tech 53341 True RMS Clamp Meter. Used, inspected, in good condition. Pulled from a working environment. Normal cosmetic wear. Wrist strap attached. 9V battery not included. |
