Description
Richards D28609-1 Glass Stage Assembly Light Table NSN 6740-01-188-8667

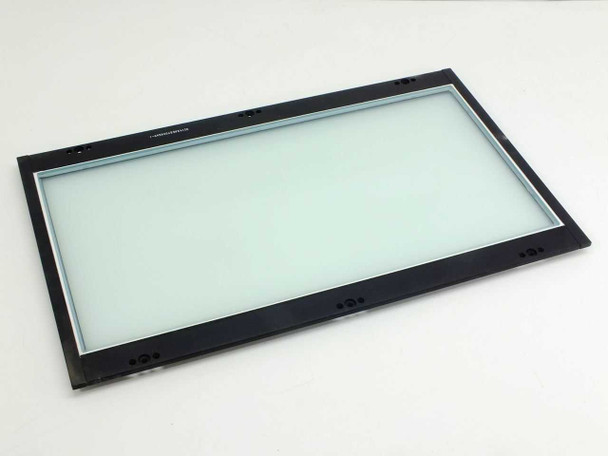

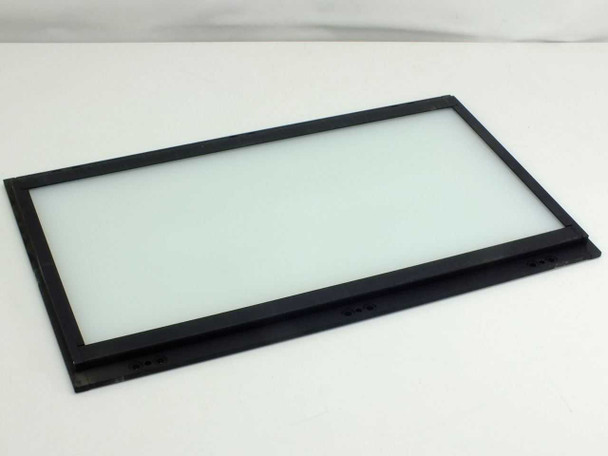

The Richards D28609-1 is a replacement glass stage assembly for a Richards light table. It consists of a frosted diffusion glass panel set within a black metal mounting frame, designed to drop into the light table's stage opening and provide the illuminated working surface. The NSN (National Stock Number) 6740-01-188-8667 confirms this is a military/government-specification component sourced through the federal supply system.
Specifications & What's Included
- Manufacturer: Richards
- Part Number: D28609-1
- NSN: 6740-01-188-8667
- Overall Dimensions (approximate): 21-3/8" W x 12-15/16" D x 5/8" thick
- Mounting Lip Dimensions (approximate): 20-7/8" W x 10-1/4" D
- Glass Dimensions (approximate): 20" W x 10-1/4" D
- Frame: Black anodized metal frame with corner mounting screw holes
- Glass surface: Frosted/diffused glass for even light transmission
- All measurements are approximate
Applications
Light tables are standard tools in film, animation, photography, illustration, and document inspection work. The illuminated glass stage allows artists, editors, and technicians to view film negatives, transparencies, slides, tracings, and overlays by transmitted light. Richards-branded light tables were commonly used in government, military, and professional media production environments — the NSN designation here indicates this unit was procured for U.S. military or federal agency use. Replacement stage assemblies like this one are sought by facilities maintaining older Richards light tables, as the glass panel is one of the components most susceptible to breakage or damage over time. This assembly is also potentially compatible with light tables of similar staging dimensions from other manufacturers, though buyers should verify fit against their equipment before purchasing.
This Richards D28609-1 Glass Stage Assembly for a light table has been inspected and is in good condition. The frosted glass panel is intact with no visible cracks or chips, and the black metal frame is clean and undamaged. The unit retains its original NSN label (6740-01-188-8667) on the packaging. Normal minor handling marks may be present consistent with surplus storage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Richards |
Model: |
D28609-1 |
MPN: |
D28609-1 |
Type: |
Glass Stage Assembly |
SKU: |
45907 |
NSN: |
6740-01-188-8667 |
Condition: |
Used – Inspected |
Compatible With: |
Richards Light Table |
Overall Dimensions: |
21-3/8" x 12-15/16" x 5/8" thick |
Glass Dimensions: |
20" x 10-1/4" |
Mounting Lip Dimensions: |
20-7/8" x 10-1/4" |
Frame Material: |
Black anodized metal frame |
Glass Type: |
Frosted/diffused glass panel |
Seller Notes: |
Glass stage assembly only; no additional accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Richards D28609-1 Glass Stage Assembly for light table. Inspected and in good condition. Glass intact, no cracks or chips visible. Black metal frame clean and undamaged. NSN 6740-01-188-8667. |
